MyNet-A, running dhcp for all computers… Routerboard has 3 active interfaces, gw-1, gw-2 and localnet
default gateway is gw-1
i route statically, all 10.0.0.0/8 and 192.168.0.0/16 to gw-2
Gw-2 connects to Mynet-B, Mynet-B connects wireless with Mynet-C and via a bonding interface i end to Mynet-D
from Mynet-D router, 3 hops away from gw-2, i can ping some hosts in my localnet..
results are going to make me crazy…
i can ping .1 (my local mt router)
.3 an openmediavault file server
.4 a rpi3 running libreelec
.12-.16 voip phones
I cannot ping .20 to .25 some windows pcs and a mac
I cannot ping .40 to .42 my mobile phones
I can ping .70 and .100 a printer and a Time Capsule device
I change .24 (windows 7) to .101, i can ping it..
i revert it to .24, i cannot…
i can ping .110, a WD nas disk…

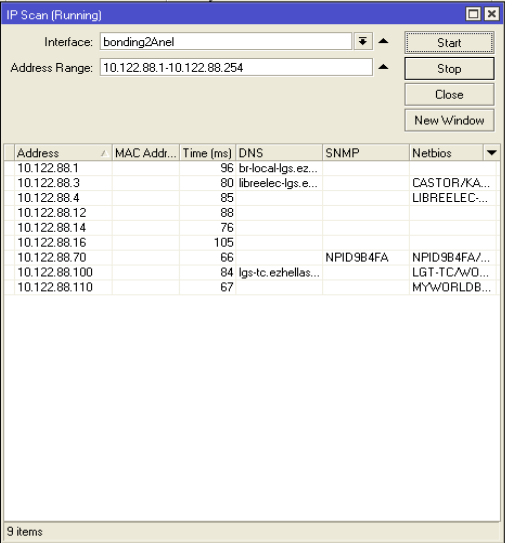

when i run Ip scan on Mynet-D router, it can detect 9 hosts.

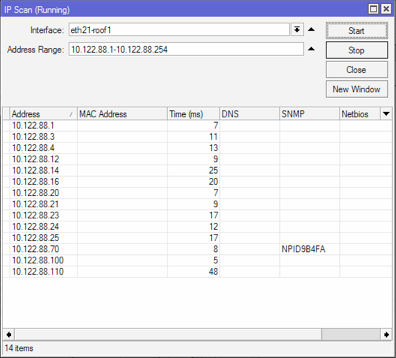

when i run Ip scan on Mynet-C, Mynet-B, Mynet-A router, they can detect 14 hosts.
ok.. its 4 o clock am here, but this is really strange…
Mynet-A router is freshly installed…
