Hello Guys,

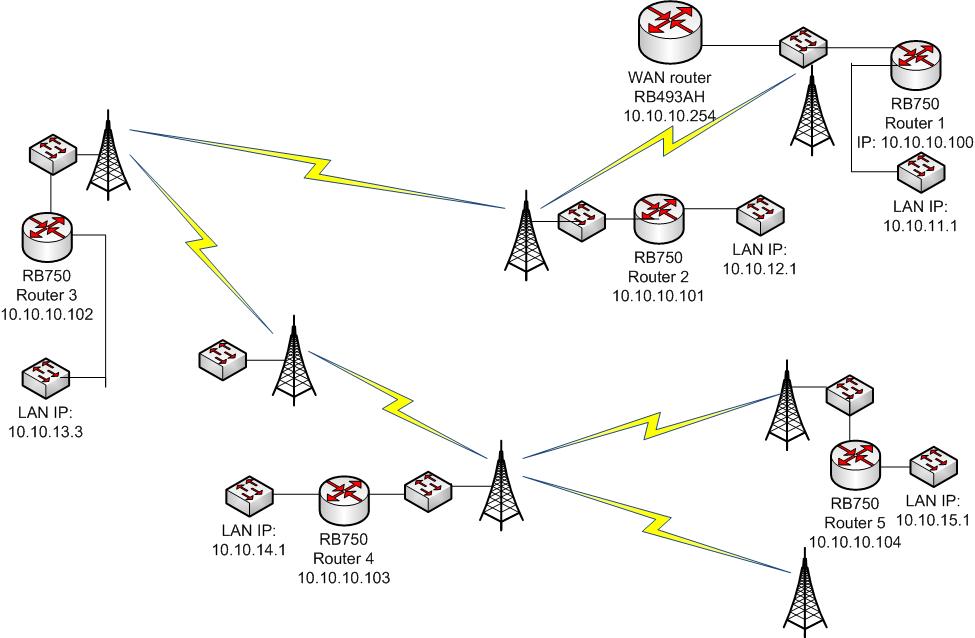

I wan to implement VLAN on network but i don’t have experience in miktrotik using VLAN. I would really appreciate if someone can help me give some example on how to implement VLAN base of my diagram. see attachment.
I should be able to connect from router 1 to router 5 and vice versa and would be nice if can i access may radio in the following ip, (see below) from any of my 5 router. or can we use VPN Router -to- Router.
Router 1 LAN IP: 10.10.11.1/24
Router 2 LAN IP: 10.10.12.1/24
Router 3 LAN IP: 10.10.13.1/24
Router 4 LAN IP: 10.10.14.1/24
Router 5 LAN IP: 10.10.15.1/24
Please assume that five (5) router already configure as user manager / hotspot. and assume that five (5) router use LAN2 port.
Thanks
Alex
