Please help with instalation Intel PRO/1000 Ethernet(8257EI)

RouterOS General
1

I can not install a driver.
I try to do everything in accordance with the documentation.

I have Intel PRO/1000 PT (82572EI Gigabit Ethernet Controller (Copper) (rev: 6)) specifically purchased for Mikrotik :slight_smile:

[admin@MikroTik] > /system resource io print

PORT-RANGE        OWNER
0x20-0x21         APIC
0x40-0x43         [timer0]
0x50-0x53         [timer1]
0x60-0x6F         keyboard
0x70-0x77         [rtc]
0x80-0x8F         DMA
0xA0-0xA1         APIC
0xC0-0xDF         DMA
0xF0-0xFF         FPU
0x170-0x177       [0000:00:1f.2]
0x170-0x177       [libata]
0x1F0-0x1F7       [0000:00:1f.2]
0x1F0-0x1F7       [libata]
0x376-0x376       [0000:00:1f.2]
0x376-0x376       [libata]
0x3C0-0x3DF       VGA
0x3F6-0x3F6       [0000:00:1f.2]
0x3F6-0x3F6       [libata]
0x400-0x47F       [0000:00:1f.0]
0x400-0x47F       [pnp 00:06]
0x400-0x403       [ACPI PM1a_EVT_BLK]
0x404-0x405       [ACPI PM1a_CNT_BLK]
0x408-0x40B       [ACPI PM_TMR]
0x410-0x415       [ACPI CPU throttle]
0x420-0x42F       [ACPI GPE0_BLK]
0x450-0x450       [ACPI PM2_CNT_BLK]
0x500-0x53F       [0000:00:1f.0]
0x500-0x53F       [pnp 00:06]
0x680-0x6FF       [pnp 00:06]
0xCF8-0xCFF       [PCI conf1]
0x1000-0x1FFF     [PCI Bus #04]
0x1000-0x100F     [0000:04:00.0]
0x1000-0x100F     [libata]
0x1010-0x1017     [0000:04:00.0]
0x1018-0x101F     [0000:04:00.0]
0x1018-0x101F     [libata]
0x1020-0x1023     [0000:04:00.0]
0x1024-0x1027     [0000:04:00.0]
0x1024-0x1027     [libata]
0x2000-0x2FFF     [PCI Bus #01]
0x2000-0x201F     [0000:01:00.0]
0x3000-0x301F     [0000:00:1f.3]
0x3020-0x303F     [0000:00:1d.2]
0x3020-0x303F     [uhci_hcd]
0x3040-0x305F     [0000:00:1d.1]
0x3040-0x305F     [uhci_hcd]
0x3060-0x307F     [0000:00:1d.0]
0x3060-0x307F     [uhci_hcd]
0x3080-0x309F     [0000:00:1a.2]
0x3080-0x309F     [uhci_hcd]
0x30A0-0x30BF     [0000:00:1a.1]
0x30A0-0x30BF     [uhci_hcd]
0x30C0-0x30DF     [0000:00:1a.0]
0x30C0-0x30DF     [uhci_hcd]
0x30E0-0x30FF     [0000:00:19.0]
0x30E0-0x30FF     [e1000e]
0x3400-0x340F     [0000:00:1f.5]
0x3410-0x341F     [0000:00:1f.5]
0x3410-0x341F     [libata]
0x3420-0x342F     [0000:00:1f.2]
0x3430-0x343F     [0000:00:1f.2]
0x3430-0x343F     [libata]
0x3440-0x3447     [0000:00:1f.5]
0x3440-0x3447     [libata]
0x3448-0x344F     [0000:00:1f.5]
0x3448-0x344F     [libata]
0x3460-0x3467     [0000:00:02.0]
0x3468-0x346B     [0000:00:1f.5]
0x3468-0x346B     [libata]
0x346C-0x346F     [0000:00:1f.5]
0x346C-0x346F     [libata]



[admin@MikroTik] > /system resource irq print

IRQ OWNER
1   [Phys-irq-level     i8042]
8   [Phys-irq-level     rtc]
9   [Phys-irq-level     acpi]
12  [Phys-irq-level     i8042]
14  [Phys-irq-level     libata]
15  [Phys-irq-level     libata]
17  [Phys-irq-level     ehci_hcd:usb1]
17  [uhci_hcd:usb5]
18  [Phys-irq-level     eth0]
19  [Phys-irq-level     libata]
19  [uhci_hcd:usb3]
19  [uhci_hcd:usb8]
20  [Phys-irq-level     uhci_hcd:usb7]
21  [Phys-irq-level     libata]
21  [uhci_hcd:usb4]
22  [Phys-irq-level     ehci_hcd:usb2]
22  [uhci_hcd:usb6]
256 [Dynamic-irq-level     timer0]
257 [Dynamic-irq-level     resched0]
258 [Dynamic-irq-level     callfunc0]
259 [Dynamic-irq-level     resched1]
260 [Dynamic-irq-level     callfunc1]
261 [Dynamic-irq-level     timer1]
262 [Dynamic-irq-level     xenbus]
263 [Dynamic-irq-level     console]



[admin@MikroTik] > driver add name?

Name ::= 3c509 | lance | ne2k-isa
  3c509 -- 3com 3c509 ISA
  lance -- AMD Lance ISA
  ne2k-isa -- ISA NE2000

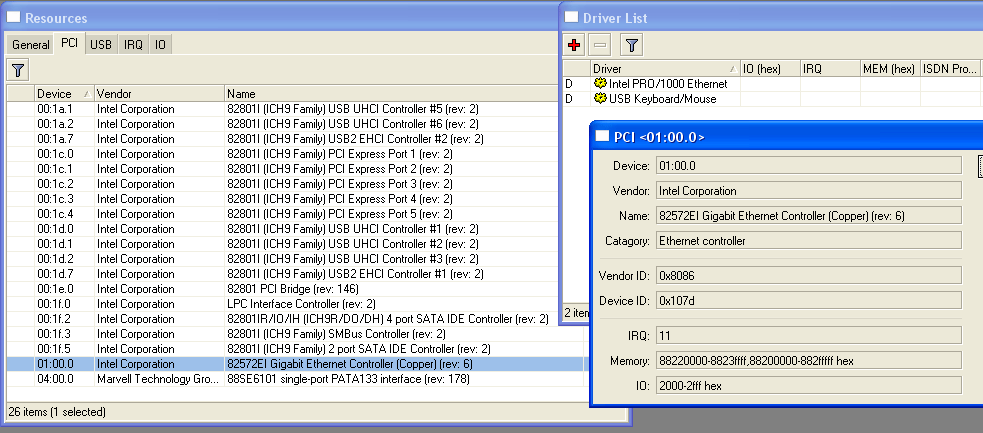

[admin@MikroTik] > driver print

Flags: I - invalid, D - dynamic
 #   DRIVER                                                     IRQ IO       MEMORY   ISDN-PROTOCOL
 0 D USB Keyboard/Mouse
 1 D Intel PRO/1000 Ethernet
[admin@MikroTik] >

What should I do next?

[admin@MikroTik] > driver add name=“Intel PRO/1000 Ethernet” irq=11 io=0x2fff

input does not match any value of name

What am I doing not right?

2

main question: what version of mt?

You cannot add new NIC drivers, they either work or they dont.

Try disabling all your USB, audio, secondary IDE channels, etc in the bios to see if it’s an IRQ conflict.

Sam

3

Sorry, I forgot to specify the version of MT - 3.20

4

In the BIOS setup to disable all unnecessary excluding internal LAN and USB.
USB is necessary for connecting a keyboard, because the motherboard has no PS / 2.

The most interesting that the integrated network card to work immediately, although it does not suit me.
And Intel network cards have been purchased specifically with chipsets 82572EI because it appears in http://wiki.mikrotik.com/wiki/Supported_Hardware

5

the driver menu is not for PCI cards, don’t use it. you can’t add new drivers, if the card doesn’t work in latest RouterOS version, there is nothing you can do

6

2 Mikrotik Team,



Again the same story as with the 82571EB.
What do Mikrotik support? Realtek?

I certainly understand that the issuance of Mikrotik OS, it is intended primarily for the RouterBOARD.
But why then do the version for PC? If supported only equipment which is not a server?
I have over 20 servers on Linux, many different network cards, with no problems.

RB/1000 you think its the most powerful product - read the other forums that are about to write. This product does not withstand the current loads of modern networks.

I understand that $ 100 - this is fine for the little OS, but then write on the site that MT is an operating system for HOME USE ONLY, or create a normal product in the box better as RB/1000.

You compare your product with Cisco? - You are laughing on the buyers?

7

You can excuse me for impudence, but you’re too high to deliver the product.
I like the MK as a product, but apparently I grew up above it.
My useful bandwidth of more than 130 TB per month.
I am tuning in every possible way to Linux, and take out with him all that can be up to the hardware limit, but it did not have their own stability.
I want to pay to get a ready-made solution in box.
But unfortunately you do not want.

8

WHY?
http://wiki.mikrotik.com/wiki/Supported_Hardware
have line:

Intel PRO/1000 PT ( 82572EI Gigabit Ethernet Controller rev: 6) 3.13 Works

Please explain who created this document?
I think that if you check there half of the equipment is not supported.

Question about shaping (possible or not)
9

roll back to 3.13 or 3.17. If you still have problems then send a supout with the card installed to support. If it’s working under the old version then also send a supout and update the wiki to state not working with 3.20. save someone else the headache.

rather than bitch at MT for not supporting it, ask nicely for them to look at why its not working when it was. they don’t have every nic available to test every release with.
