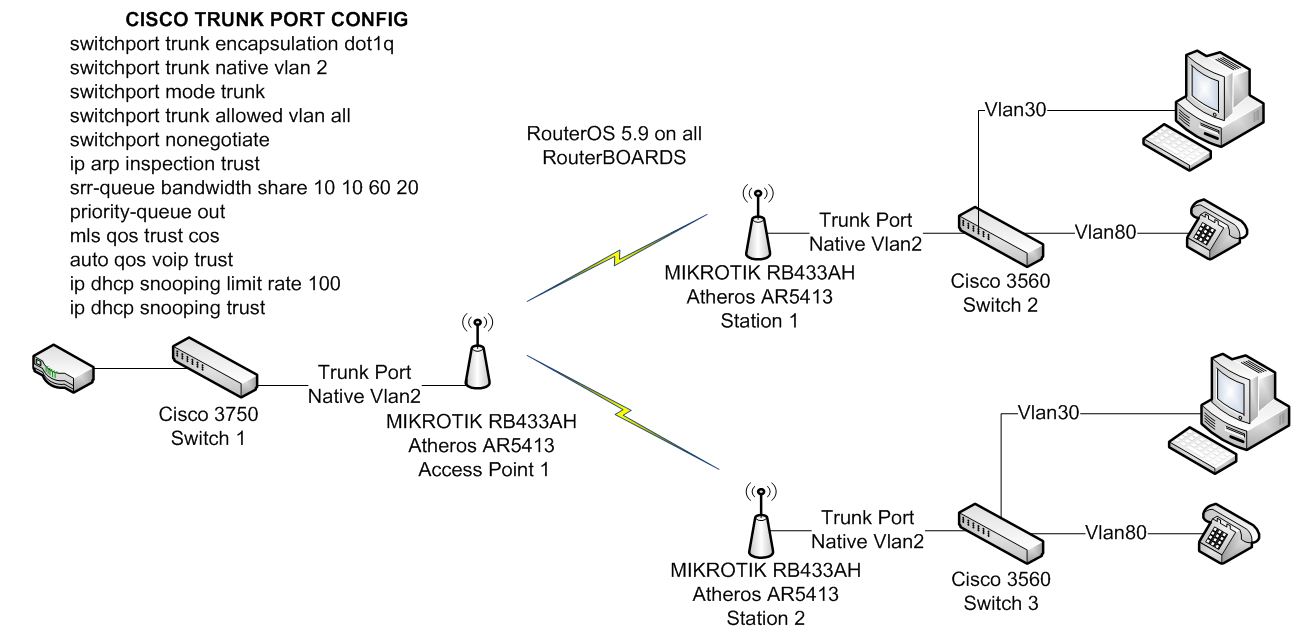

I’m having some difficulty configuring the Mikrotik RB433AH router boards to work in the following config:
Management VLAN is 60. Any ideas?
Thanks,
Igor
If you add ethernet ports connected to your cisco equipment to “bridge_tagged_side” under bridge ports you should have a working solution.
ref. http://forum.mikrotik.com/t/mikrotik-p-to-p-configuration/52487/1
I am new to MIKROTIK. Can you please be more specific about “bridge_tagged_side”. If you have time can you send me whole config?
Thanks
Igor
bridge_tagged_side is just a name of an ordinary bridge containing tagged ethernet for vlan - similar to cisco trunk.
The hole config is there, if you use winbox and walk slowly through you should have a full working solution.

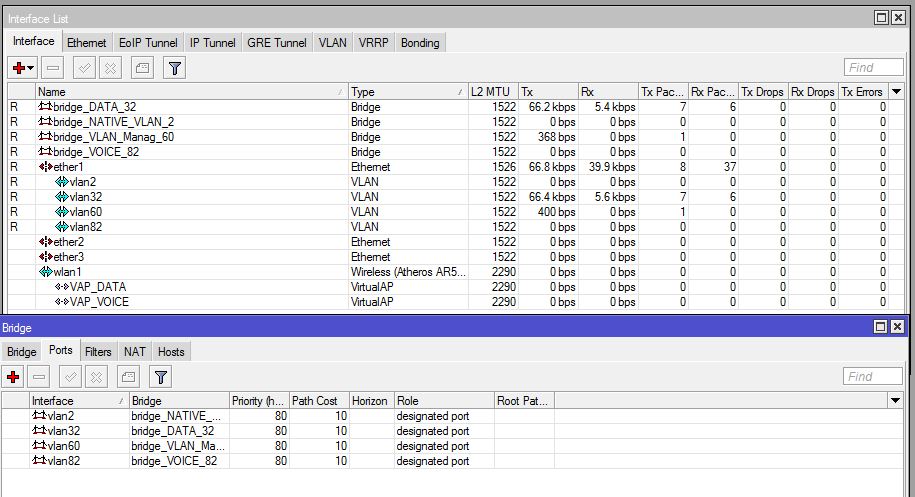

This is what i have done:
Wireless is still not connecting. I have used AP bridge on AP and station on client side.
I there a way to do this without dynamic WDS?
Thanks
Igor
Use station wds on client side.
could you also post the content of your wireless settings.
/interface wireless export hide-sensitive
I have changed complete config multiple time by now.
this is latest one that i have for the wireless station:
/interface wireless security-profiles
set default authentication-types=“” eap-methods=passthrough group-ciphers=
aes-ccm group-key-update=5m interim-update=0s management-protection=
disabled mode=none name=default radius-eap-accounting=no
radius-mac-accounting=no radius-mac-authentication=no radius-mac-caching=
disabled radius-mac-format=XX:XX:XX:XX:XX:XX radius-mac-mode=as-username
static-algo-0=none static-algo-1=none static-algo-2=none static-algo-3=none
static-sta-private-algo=none static-transmit-key=key-0 supplicant-identity=
MikroTik tls-certificate=none tls-mode=no-certificates unicast-ciphers=
aes-ccm
/interface wireless
set 0 adaptive-noise-immunity=none allow-sharedkey=no antenna-gain=0
antenna-mode=ant-a area=“” arp=enabled band=5ghz-a basic-rates-a/g=6Mbps
basic-rates-b=1Mbps bridge-mode=enabled burst-time=disabled channel-width=
40mhz-turbo compression=no country=no_country_set default-ap-tx-limit=0
default-authentication=yes default-client-tx-limit=0 default-forwarding=yes
dfs-mode=none disable-running-check=no disabled=no disconnect-timeout=3s
distance=dynamic frame-lifetime=0 frequency=5210 frequency-mode=
manual-txpower frequency-offset=0 hide-ssid=no hw-fragmentation-threshold=
disabled hw-protection-mode=none hw-protection-threshold=0 hw-retries=7
l2mtu=2290 mac-address=00:C0:CA:5F:26:7B max-station-count=2007 mode=
station mtu=1500 name=wlan1 noise-floor-threshold=default nv2-cell-radius=
30 nv2-noise-floor-offset=default nv2-qos=default nv2-queue-count=2
nv2-security=disabled on-fail-retry-time=100ms periodic-calibration=default
periodic-calibration-interval=60 preamble-mode=both proprietary-extensions=
post-2.9.25 radio-name=00C0CA5F267B rate-selection=advanced rate-set=
default scan-list=default security-profile=default ssid=MikroTik
station-bridge-clone-mac=00:00:00:00:00:00 supported-rates-a/g=
6Mbps,9Mbps,12Mbps,18Mbps,24Mbps,36Mbps,48Mbps,54Mbps supported-rates-b=
1Mbps,2Mbps,5.5Mbps,11Mbps tdma-period-size=2 tx-power-mode=default
update-stats-interval=disabled wds-cost-range=50-150 wds-default-bridge=
none wds-default-cost=100 wds-ignore-ssid=no wds-mode=disabled
wireless-protocol=unspecified wmm-support=disabled
/interface wireless manual-tx-power-table
set wlan1 manual-tx-powers=“1Mbps:17,2Mbps:17,5.5Mbps:17,11Mbps:17,6Mbps:17,9Mbp
s:17,12Mbps:17,18Mbps:17,24Mbps:17,36Mbps:17,48Mbps:17,54Mbps:17,HT20-0:17,H
T20-1:17,HT20-2:17,HT20-3:17,HT20-4:17,HT20-5:17,HT20-6:17,HT20-7:17,HT40-0:
17,HT40-1:17,HT40-2:17,HT40-3:17,HT40-4:17,HT40-5:17,HT40-6:17,HT40-7:17”
/interface wireless nstreme
set wlan1 disable-csma=no enable-nstreme=no enable-polling=yes framer-limit=
3200 framer-policy=none
/interface wireless align
set active-mode=yes audio-max=-20 audio-min=-100 audio-monitor=
00:00:00:00:00:00 filter-mac=00:00:00:00:00:00 frame-size=300
frames-per-second=25 receive-all=no ssid-all=no
/interface wireless sniffer
set channel-time=200ms file-limit=10 file-name=“” memory-limit=10
multiple-channels=no only-headers=no receive-errors=no streaming-enabled=no
streaming-max-rate=0 streaming-server=0.0.0.0
/interface wireless snooper
set channel-time=200ms multiple-channels=yes receive-errors=no
And these are settings is for AP wireless:
/interface wireless security-profiles
set default authentication-types=“” eap-methods=passthrough group-ciphers=aes-ccm group-key-update=5m interim-update=0s
management-protection=disabled mode=none name=default radius-eap-accounting=no radius-mac-accounting=no
radius-mac-authentication=no radius-mac-caching=disabled radius-mac-format=XX:XX:XX:XX:XX:XX radius-mac-mode=as-username
static-algo-0=none static-algo-1=none static-algo-2=none static-algo-3=none static-sta-private-algo=none static-transmit-key=
key-0 supplicant-identity=MikroTik tls-certificate=none tls-mode=no-certificates unicast-ciphers=aes-ccm
/interface wireless
set 0 adaptive-noise-immunity=none allow-sharedkey=no antenna-gain=0 antenna-mode=ant-a area=“” arp=enabled band=5ghz-a
basic-rates-a/g=6Mbps basic-rates-b=1Mbps bridge-mode=enabled burst-time=disabled channel-width=40mhz-turbo compression=no
country=no_country_set default-ap-tx-limit=0 default-authentication=yes default-client-tx-limit=0 default-forwarding=yes
dfs-mode=none disable-running-check=no disabled=no disconnect-timeout=3s distance=dynamic frame-lifetime=0 frequency=5210
frequency-mode=manual-txpower frequency-offset=0 hide-ssid=no hw-fragmentation-threshold=disabled hw-protection-mode=none
hw-protection-threshold=0 hw-retries=7 l2mtu=2290 mac-address=00:C0:CA:26:C4:96 max-station-count=2007 mode=ap-bridge mtu=1500
name=wlan1 noise-floor-threshold=default nv2-cell-radius=30 nv2-noise-floor-offset=default nv2-qos=default nv2-queue-count=2
nv2-security=disabled on-fail-retry-time=100ms periodic-calibration=default periodic-calibration-interval=60 preamble-mode=both
proprietary-extensions=post-2.9.25 radio-name=00C0CA26C496 rate-selection=advanced rate-set=default scan-list=default
security-profile=default ssid=MikroTik station-bridge-clone-mac=00:00:00:00:00:00 supported-rates-a/g=
6Mbps,9Mbps,12Mbps,18Mbps,24Mbps,36Mbps,48Mbps,54Mbps supported-rates-b=1Mbps,2Mbps,5.5Mbps,11Mbps tdma-period-size=2
tx-power-mode=default update-stats-interval=disabled wds-cost-range=50-150 wds-default-bridge=none wds-default-cost=100
wds-ignore-ssid=no wds-mode=disabled wireless-protocol=unspecified wmm-support=disabled
/interface wireless manual-tx-power-table
set wlan1 manual-tx-powers=“1Mbps:17,2Mbps:17,5.5Mbps:17,11Mbps:17,6Mbps:17,9Mbps:17,12Mbps:17,18Mbps:17,24Mbps:17,36Mbps:17,48Mbps:
17,54Mbps:17,HT20-0:17,HT20-1:17,HT20-2:17,HT20-3:17,HT20-4:17,HT20-5:17,HT20-6:17,HT20-7:17,HT40-0:17,HT40-1:17,HT40-2:17,HT40-
3:17,HT40-4:17,HT40-5:17,HT40-6:17,HT40-7:17”
/interface wireless nstreme
set wlan1 disable-csma=no enable-nstreme=no enable-polling=yes framer-limit=3200 framer-policy=none
/interface wireless align
set active-mode=yes audio-max=-20 audio-min=-100 audio-monitor=00:00:00:00:00:00 filter-mac=00:00:00:00:00:00 frame-size=300
frames-per-second=25 receive-all=no ssid-all=no
/interface wireless sniffer
set channel-time=200ms file-limit=10 file-name=“” memory-limit=10 multiple-channels=yes only-headers=yes receive-errors=no
streaming-enabled=no streaming-max-rate=0 streaming-server=0.0.0.0
/interface wireless snooper
set channel-time=200ms multiple-channels=yes receive-errors=no
If you need anything else please let me know.
Thanks
Igor
