POE out not working on OmniTIK UPA 5HnD

Hardware MikroTik hardware general
1

We use:
OmniTIK UPA-5HnD as AP and
SXTG-5HPnD-SAr2 for connection to other sites.

All ros 6.10 and upgraded firmware. We use original MT POE injectors and power supply.

OmniTIK is powered by POE-in over CAT7 wire. SXTG is powered from then OmniTIK with POE-out.

At least that was planned like that! But the SXTG doesn’t boot. It had not enough power to do so. The lights slightly flashed and the thing ticked.

So we got the OmniTIK and the SXTG in Office for testing…
Everything is OK when we use a network cable shorter than 5 meters to provide the OmniTIK with power.
As it is a 5 meter cable there is no power for the SXTG. There is always power for the OmniTIK itself.
It makes no difference which port is used and if POE-out is “forced on” or “auto”.

We tested two other OmniTIK with the same Result. Also with other ros versions.
And we used different POE-out gadgets like RB2011UiAS-2HnD-IN or RB951G-2HnD. That didn’t make a difference.
How to fix this problem?

2

With longer cable you probably want to increase the voltage of the power supply. Also check the amp rating of your psu. Do you have enough margin of power to supply both unit together including the increased loss in the cable?

3

It works when we are using two 3m cables.
It doesnt work when we use a 5m and 3m cable.
That length should not make any diffrence, right?

We use the PSU of the OmniTIK wich is 24V 2,5A.

4

Hey alexwaller,
open console on OmniTIK and type: /interface ethernet poe settings set ether1-poe-in-long-cable=yes


Good luck!


Regards,
Petr

5

When all else fails its always solved by a secret setting.

6

Or by soldering - it’s my favorite.

Sent from Android by Tapatalk.

7

Is this problem solved?

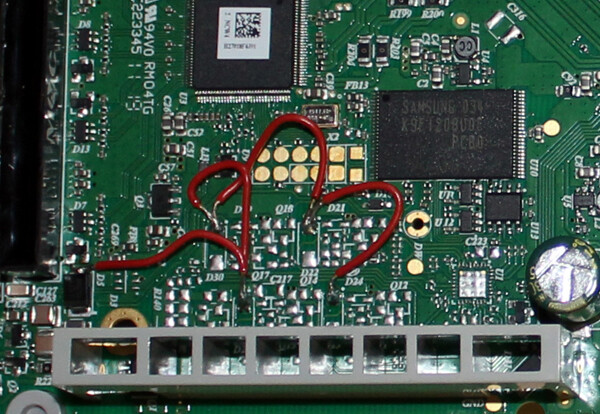

I soldered the POE (looks to the picture) for me is that the best solution to have a stable POE

8

I am soldering right behind the ports - shorter way is better way for electricity.

9

Can you made a picture and publisch here please?

10

yes, these secret settings (that are listed in manual):
http://wiki.mikrotik.com/wiki/Manual:PoE-Out#Global_settings

11

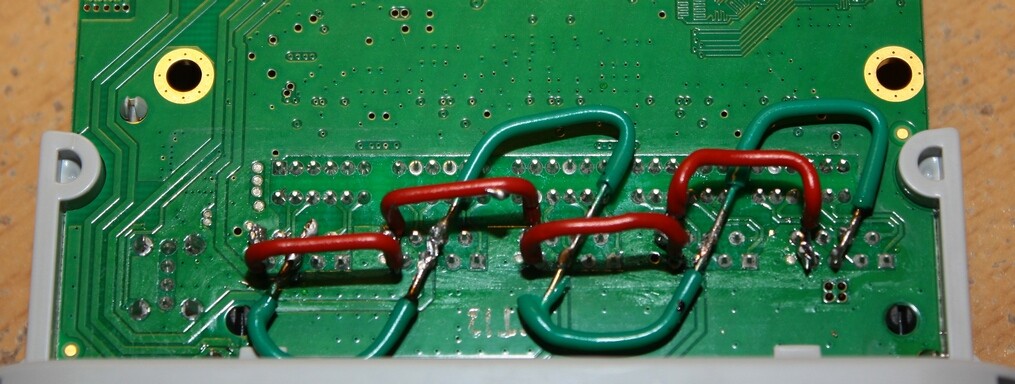

Here it is:

12

That worked perfect!
As maybee anyone will use a cable longer than 5m with that OmniTIK, why is it set to “no”?

Anyhow, now the project is finished and all three MT are working as supposed.

Thanks to all!

13

Can you help me, I have a problem with Omnitik U-5Hnd , when i turn on, All Lans dont work except PoE that works , PoE Light works but Lan lights dont work any , I’ve reset but still dont shows no IP in WinBox .

14

Does the ethernet link come up on the laptop / switch side ?

For configuring use Ether 2-5

15

I supposed this answer is joke. But it really works ! Then I have a question!
: Why manufacturer sets such mad willful option and donť set this option as default to sold devices ??? *What sense has this secret option?
*
