Base on the test results page of the model “hEX S” IPSec performance was declared to be ~469.3mbps
As result, we decided to use it as PPPoE client for one setup.
The profile of the connection is 500/90 .

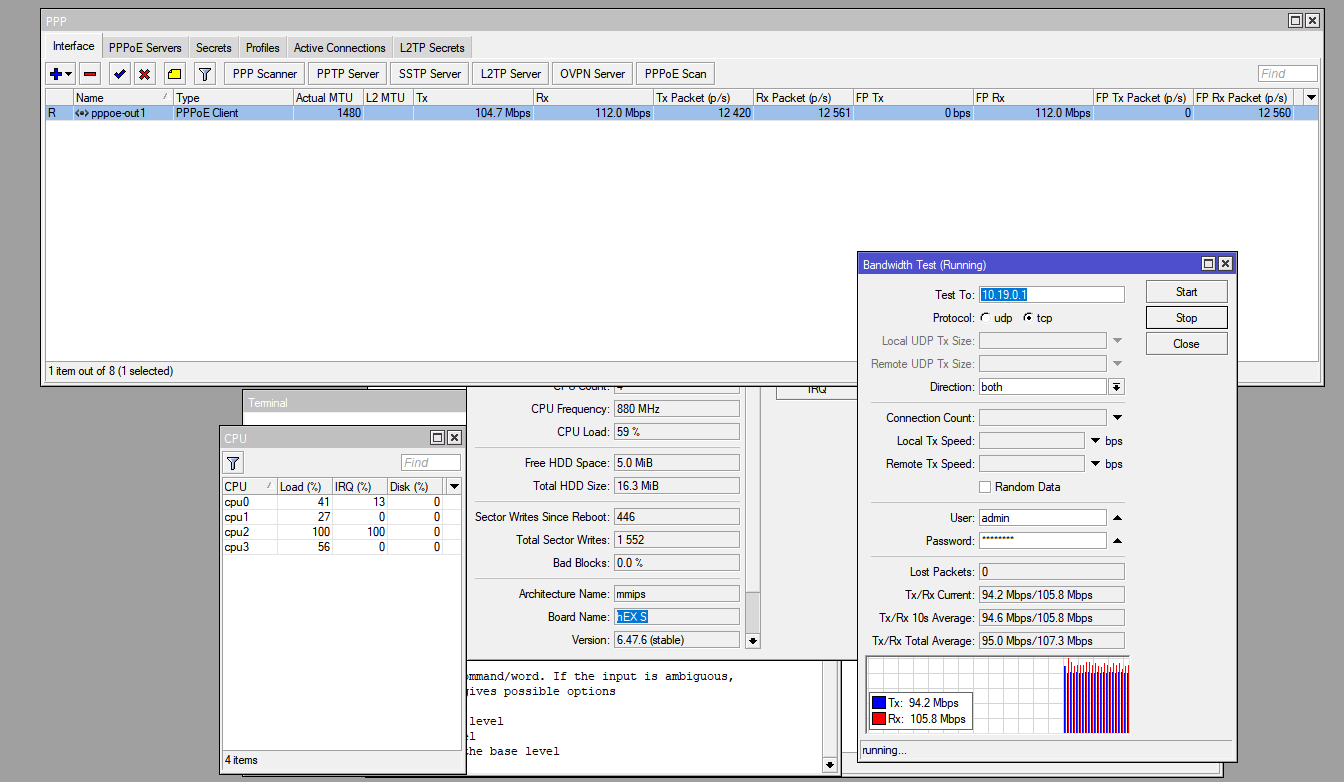

As you can see in this img the test show only ~100/90

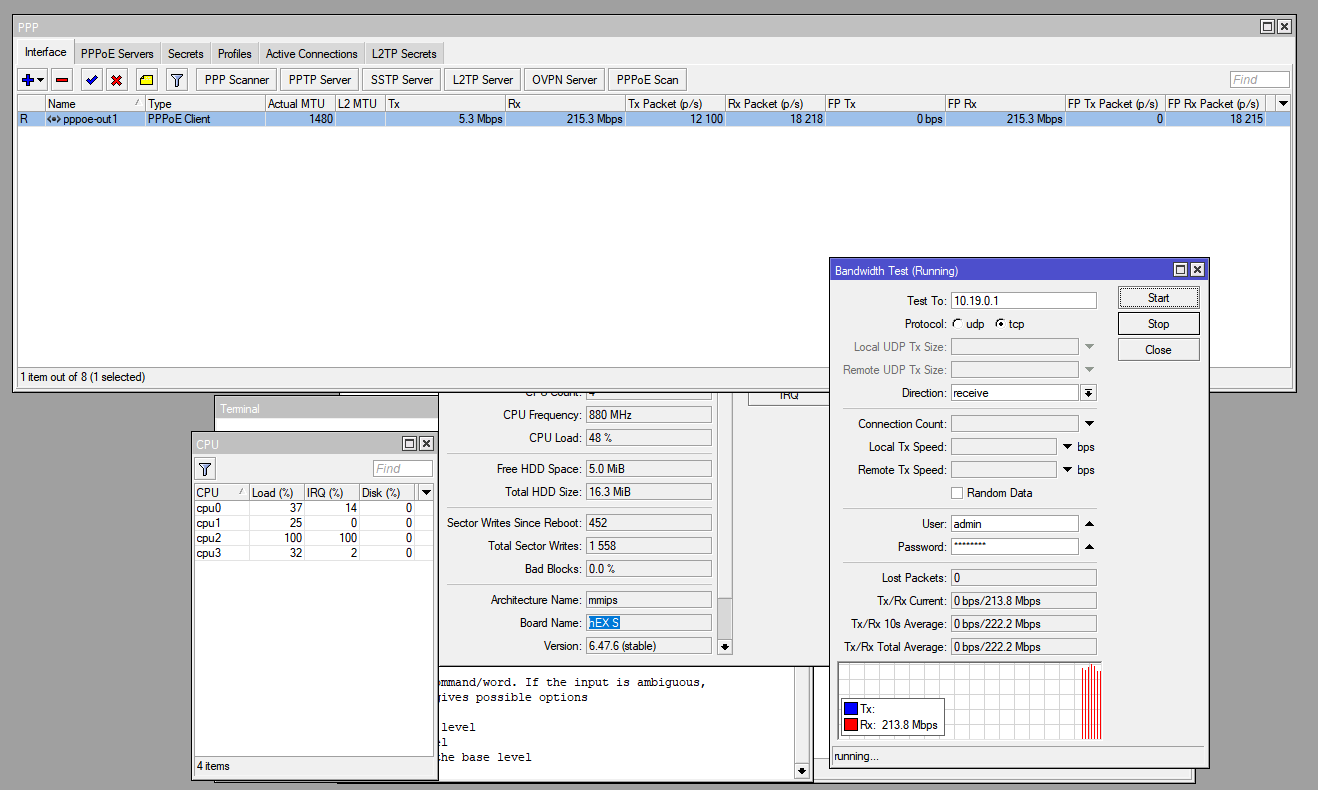

And this one 200 as is one side
Can someone share an opinion “why this is happening?”
If we use Huawei WS7200 we get Full speed as was set on the profile side.
If you haven’t seen this article before, it shows how those MT reports from are taken from measurements.
https://wiki.mikrotik.com/wiki/Manual:Performance_Testing_with_Traffic_Generator
No need,
You are getting the ipsec speeds you should be getting based on the AVAILABLE test results posted for that product.
I have found that the Mbps for 512K size chunks with 25 queues to be a fair marker of expectations wrt throughput.
So for the Hex S, on a 1gig fiber network I would expect to get around 735Mpbs max.
Some have reported more but most see around those speeds, including myself.
As for ipsec if I use the same entry criteria as above I see IPSEC speeds of 160-180.
So in your case you are under a bit but not my that much and perhaps the type of ipsec you are using have is slower? or the limiting factor is
the internet in between or the devices you are reaching???
OP is getting more than what you predict: he’s running bi-directional test and getting 95Mbps Tx + 105Mbps Rx … in uni-directional test he’s getting around 220Mbps. And I guess (based on same rule as @Anav) that this is it for the bucks …
@Sergiu, just to be sure, you can run CPU profiler to see CPU load and which particular process consumes most of it.
Can you make this test with PC running iPerf
