Hello
Recently, I decided to set up an SSH connection to my machine in a private network. I have a machine with a public IP and OpenSense installed on it. I have installed WireGuard there. This WireGuard is also connected to my Mikrotik router. Right now, the idea is:

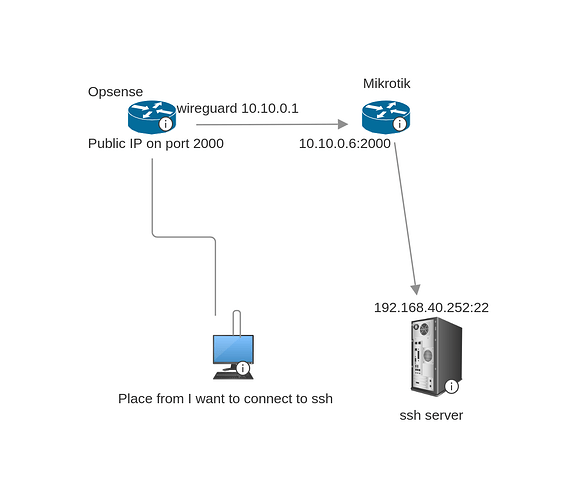

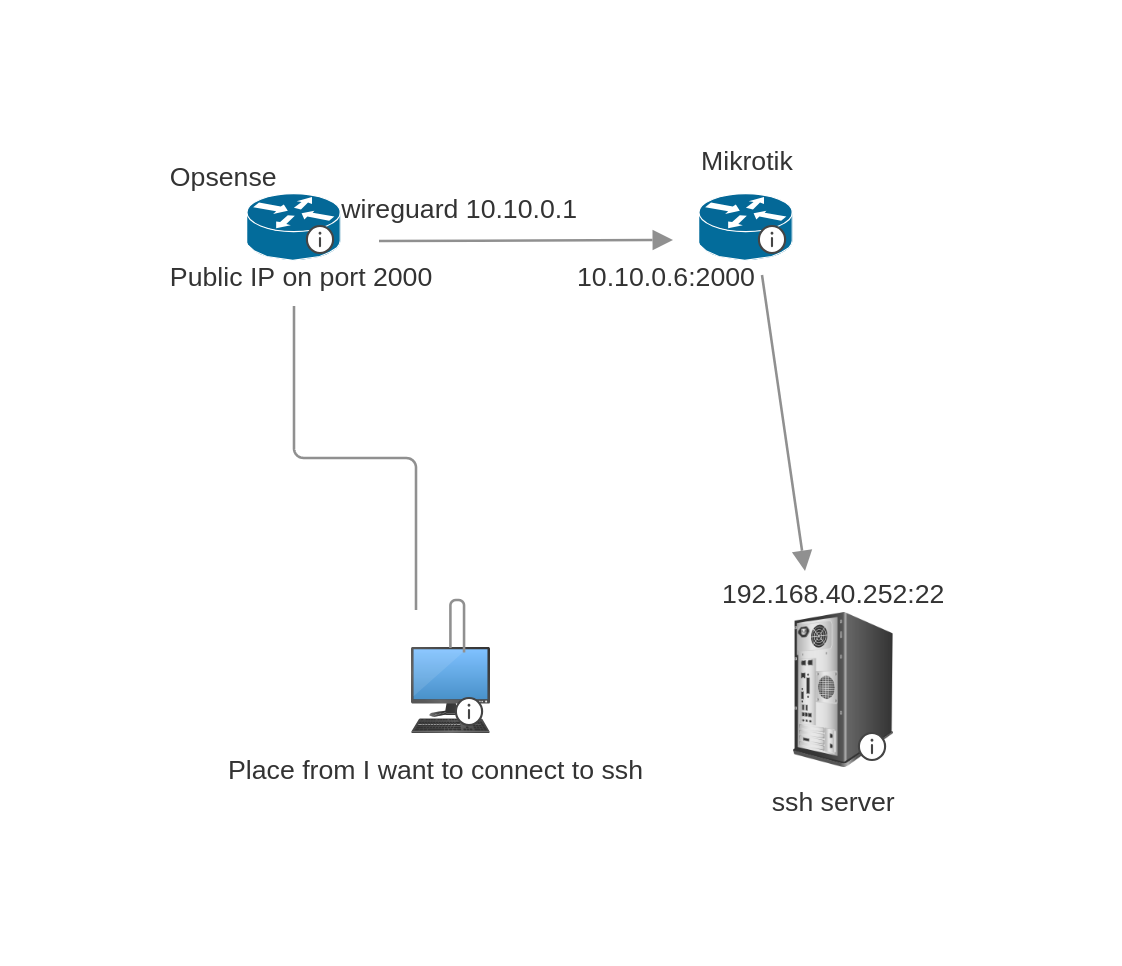

I try to connect to [public_ip]:2000, then it is forwarded to 10.10.0.6:2000, which is a private IP Mikrotik address in my vpn network, and lastly it is forwarded to 192.168.40.252:22, which is SSH in my private server, which is connected with ethernet to my Mikrotik. Of course, it does not work. On Mikrotik, I have created a NAT rule.
```
chain=dstnat action=dst-nat to-addresses=192.168.40.252 to-ports=22 protocol=tcp dst-address=10.10.0.6 in-interface=wireguard1 dst-port=2000 log=yes log-prefix=""
```
And also, I created a rule in my firewall
```
chain=forward action=accept protocol=tcp dst-address=192.168.40.252 in-interface=wireguard1 dst-port=22
```
When I start connecting with SSH on port 2000, I can see these rules are working in the Mikrotik panel. Also, I can see a connection going in with tcpdump on my server where I am trying to connect. I believe it is going in, meaning forwarding in Opnsense and Mikrotik works correctly, but it is not going out. In tcp dump, I can see the source address is my home pc address (ISP's to be exact), so I believe that the server does not know where to send packets back. I tried messing with srcnat so the src IP would be my router.
```
chain=srcnat action=masquerade protocol=tcp connection-mark=from_wg out-interface=bridge dst-port=22 log=no log-prefix=""
```
But this was not successful. I believe I am on the right track, but I just can't set up ``srcnat`` on my own.
I am trying to set up for hours and just do not have any idea what to do at this point.
I will also send my whole firewall configuration.
```
[admin@MikroTik] > /ip firewall nat print Flags: X - disabled, I - invalid; D - dynamic 0 ;;; defconf: masquerade chain=srcnat action=masquerade out-interface-list=WAN log=no log-prefix="" ipsec-policy=out, none 1 ;;; aang forward chain=dstnat action=dst-nat to-addresses=192.168.40.252 to-ports=22 protocol=tcp dst-address=10.10.0.6 in-interface=wireguard1 dst-port=2000 log=yes log-prefix="" 2 ;;; sokka forward chain=dstnat action=dst-nat to-addresses=192.168.40.253 to-ports=22 protocol=tcp dst-address=10.10.0.6 in-interface=wireguard1 dst-port=2001 3 ;;; katara forward chain=dstnat action=dst-nat to-addresses=192.168.40.254 to-ports=22 protocol=tcp dst-address=10.10.0.6 in-interface=wireguard1 dst-port=2002 4 chain=srcnat action=masquerade protocol=tcp connection-mark=from_wg out-interface=bridge dst-port=22 log=no log-prefix=""
```
```
[admin@MikroTik] > /ip firewall filter print Flags: X - disabled, I - invalid; D - dynamic 0 D ;;; special dummy rule to show fasttrack counters chain=forward action=passthrough 1 ;;; defconf: accept established,related,untracked chain=input action=accept connection-state=established,related,untracked 2 ;;; defconf: drop invalid chain=input action=drop connection-state=invalid 3 ;;; defconf: accept ICMP chain=input action=accept protocol=icmp 4 ;;; defconf: accept to local loopback (for CAPsMAN) chain=input action=accept dst-address=127.0.0.1 5 chain=input action=accept in-interface=wireguard1 log=no log-prefix="" 6 X ;;; sokka forward chain=forward action=accept protocol=tcp dst-address=192.168.40.253 in-interface=wireguard1 dst-port=22 7 ;;; aang forward chain=forward action=accept protocol=tcp dst-address=192.168.40.252 in-interface=wireguard1 dst-port=22 8 X ;;; katara forward chain=forward action=accept protocol=tcp dst-address=192.168.40.254 in-interface=wireguard1 dst-port=22 9 ;;; defconf: drop all not coming from LAN chain=input action=drop in-interface-list=!LAN 10 ;;; defconf: accept in ipsec policy chain=forward action=accept ipsec-policy=in,ipsec 11 ;;; defconf: accept out ipsec policy chain=forward action=accept ipsec-policy=out,ipsec 12 ;;; defconf: fasttrack chain=forward action=fasttrack-connection hw-offload=yes connection-state=established,related 13 ;;; defconf: accept established,related, untracked chain=forward action=accept connection-state=established,related,untracked 14 ;;; defconf: drop invalid chain=forward action=drop connection-state=invalid 15 ;;; defconf: drop all from WAN not DSTNATed chain=forward action=drop connection-state=new connection-nat-state=!dstnat in-interface-list=WAN
```
I would appreciate any help and ideas, and I would be happy to send more information about my setup if needed.
