Possible routing issue - any suggestion?

RouterOS General
1

Hi,

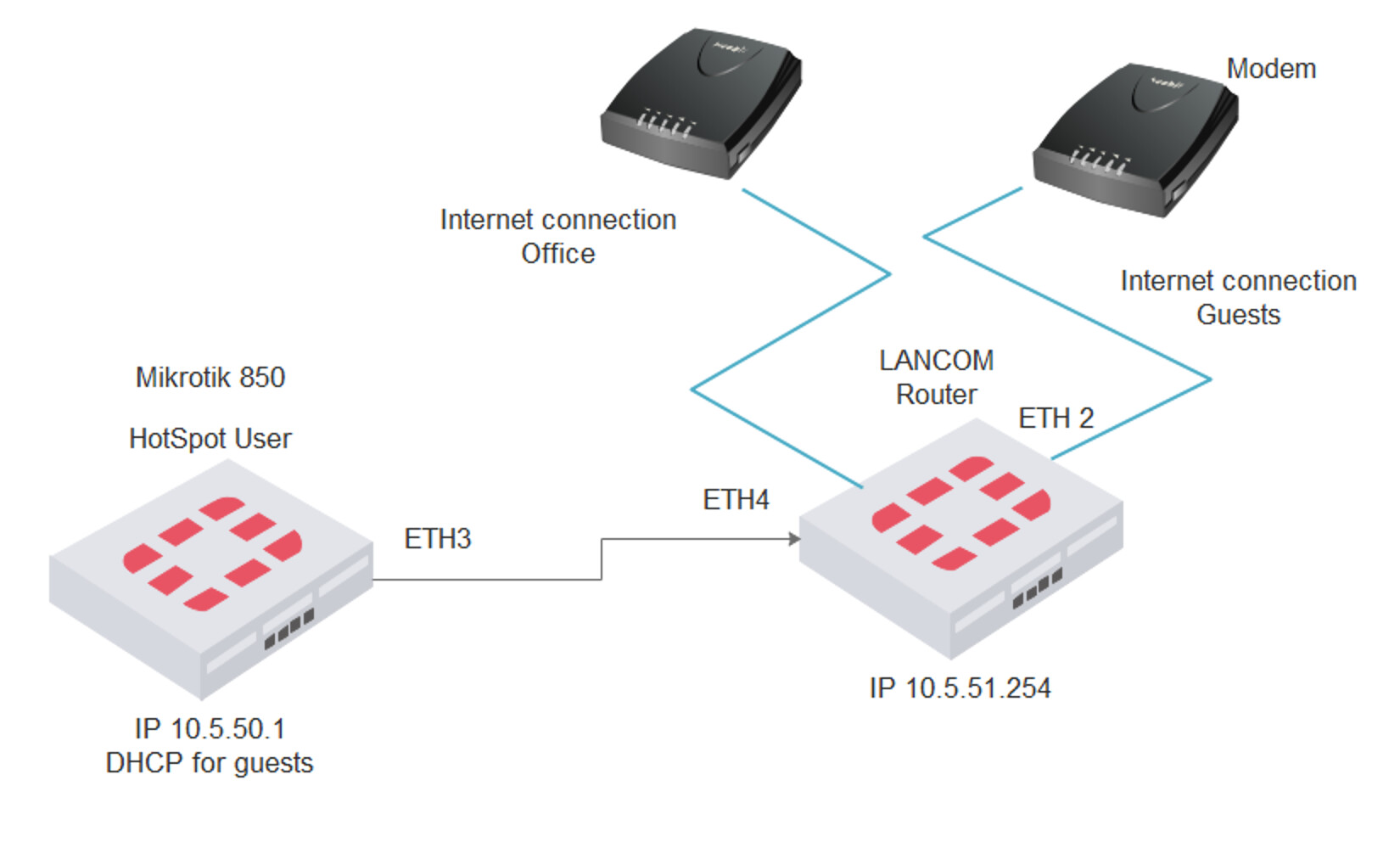

i have the following setup:
Screen Shot 2017-12-15 at 16.25.44.png
My MT 850 has gor two bridges: one for OFFICE users (192.168.0.x/24) and other for GUESTS user (10.5.50.0/23). MT Hotspot resp bridge guests has ip 10.5.50.1.MT is connected via Eth3 (which i put to bridge guests) to LANCOM router to Eth4. LANCOM should be doing following: connections from ip subnet 10.5.50.0/23 (connected to MT) should have internet connection via MODEM on LANCOM Eth3. The LANCOM support did that and if i connect with my laptop (fix IP address) i see connection via Eth3 which is fine. And here is my issue.

i have connected MT via Eth3 to LANCOM to Eht4 and i see in MT DHCP lease IP address from LANCOM but i can not ping it resp I do not have connection to 10.5.51.254. Is this a matter of routing?

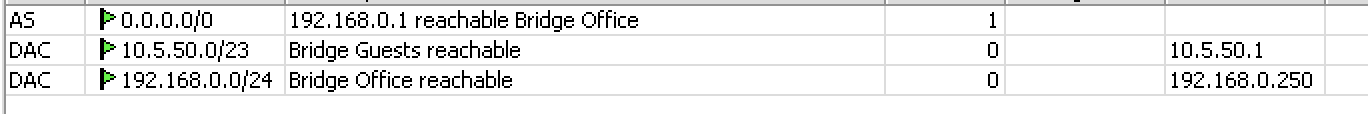

This is my current routing table:
Screen Shot 2017-12-15 at 16.27.19.png
Thank you for your tipps

korg

2

Hey there,

are u totaly sure about the IPs and Subnets given ? /23 ?

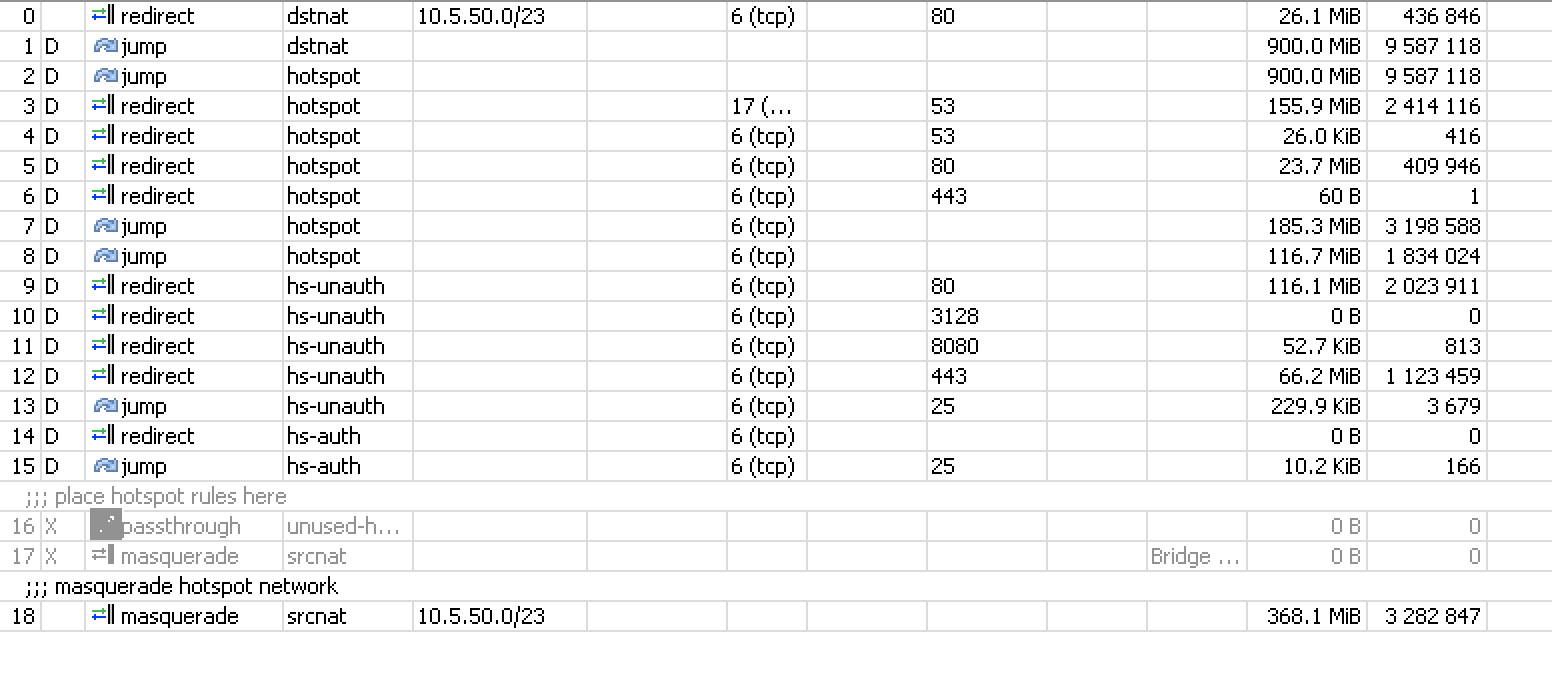

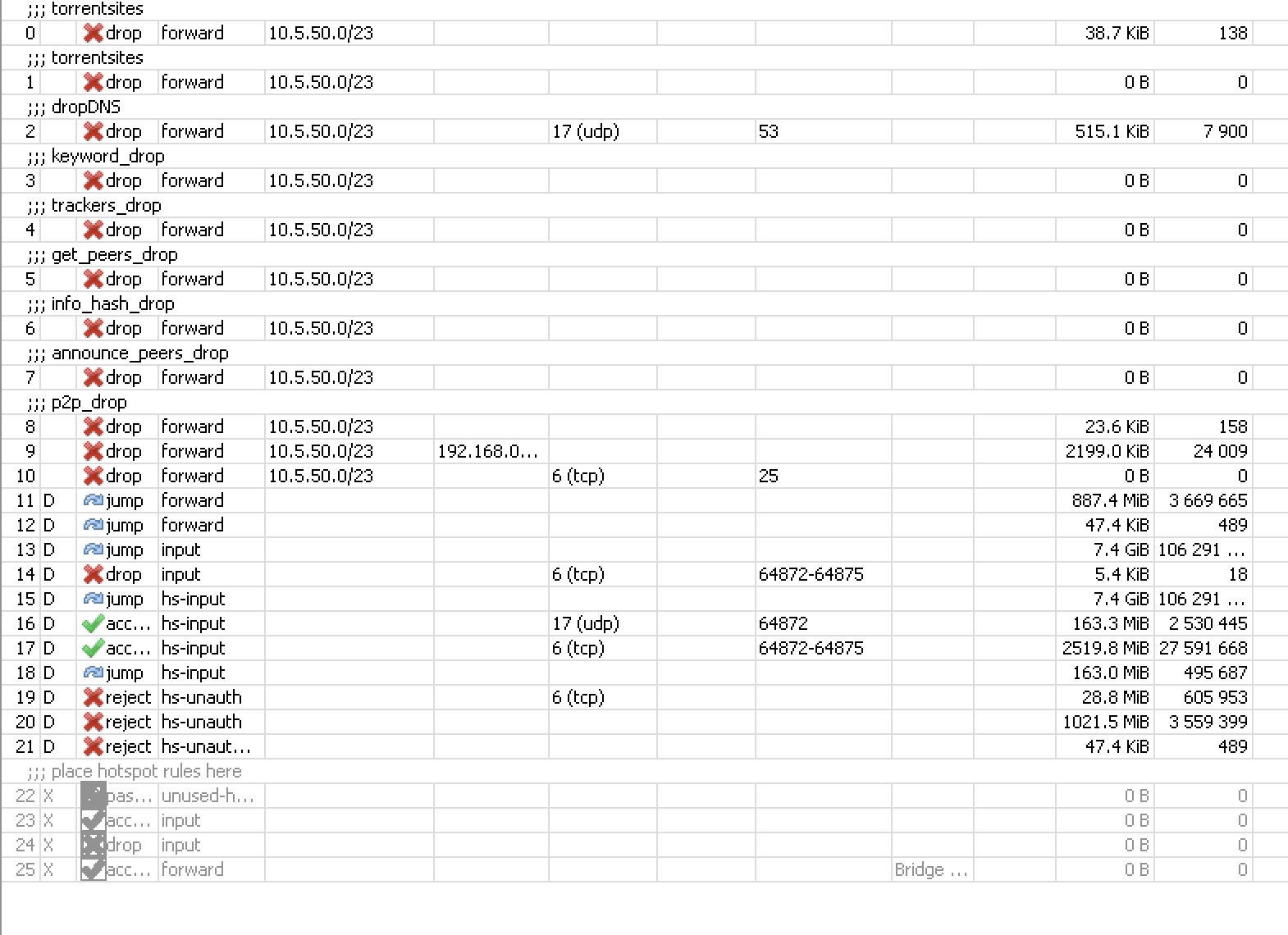

pls provide full config or screenshot of firewall and NAT

Did you use Wizard ?

Lancom has DHCP-Server enabled on ETH4 ?
Mtik has DHCP-Client enabled on ETH3 ?

Cheers,
Chris

3

are u totaly sure about the IPs and Subnets given ? /23 ?
Yes… totaly sure
pls provide full config or screenshot of firewall and NAT
Did you use Wizard ?
Yes.. i did

Lancom has DHCP-Server enabled on ETH4 ?
No.. LANCOM has static IP address which i have given to the TCOM Technician which is 10.5.51.254

Mtik has DHCP-Client enabled on ETH3 ?
MTik has DHCP enabled on Bridge Guests and Eth 3 is a part of that bridge.

tx
