Hello everyone
I am having a problem that I cannot solve if someone can help me I would be greatfull.Actually we are getting new connection from a new isp but we just have one ip from this new isp I know we can do masquerade private and create pppoe pools but in here. I have one main router(isp connection at one tower ) and and another router that is on the second tower(lets say router 2)
1)I assigned 192.168.199.2/24 ip on tower two routers(router 2) ethernet 1 and I assigned 192.168.199.1/24 on main towers(main router) ethernet1
2)ethernet 8 will be our isp connection on main tower(main router)
3)I created a pool on mikrotik router(router 2) that is 192.168.199.3-192.168.199.50

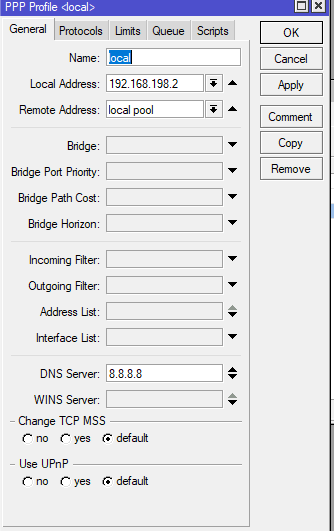

the pppoe server is on ethernet 2(router 2) I am using local address as 192.168.199,2 and remote address as pool i created.
4)I did masquerade on main tower(main router) to WAN ip the subnet 192.168.199.0/24
5)for dns on for pppoe clients i am putting ethernet 1 ip 192.168.199.2/24 on 2nd router.
6)I created a default route on 2nd router to 192.168.199.1

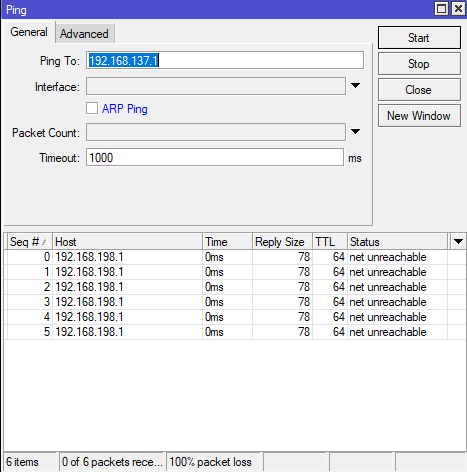

But still router 2 cannot ping dns which isp has given
The clients can get the ip from the pool and their connections shows in pppoe connections
But still this is not working

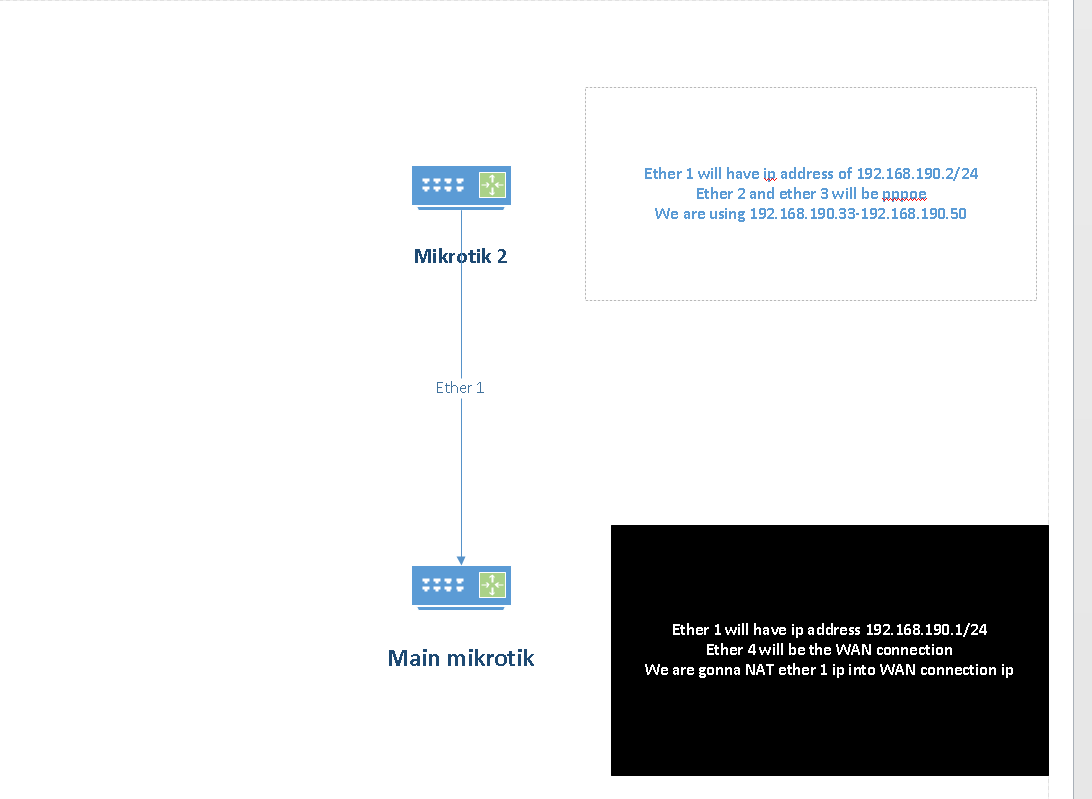

I am attaching a picture also.
R2:
change your pppoe-ip-pool addresses
R1
route new-ippool address to R2
chnage your src-nat src-address=new-ip-pool
R2:
change pppoe client ip pool address
R1:
/ip route
add des=R2-new-ip-pool gateway=192.168.199.2
/ip firewall nat
add chain=src-nat src-addrc=R2-ip-pool out-interface=WAN-Interface(Ether8) acction=masqurade
R1:
/ip route add dst-address=192.168.180.0/24 gateway=192.168.199.2 check-gateway=ping
Thanks alot man I really appreciate your replies
But it is still not working even in my lab environment
I think the problem is the dns server router 2 cannot ping the dns server in my lab environment I am sharing wifi with ethernet and ethernet is connected to main routers interface 8 (acting as isp connection) and I am running dhcp client on ether8 to get default gateway and dns and that is 192.168.137.1

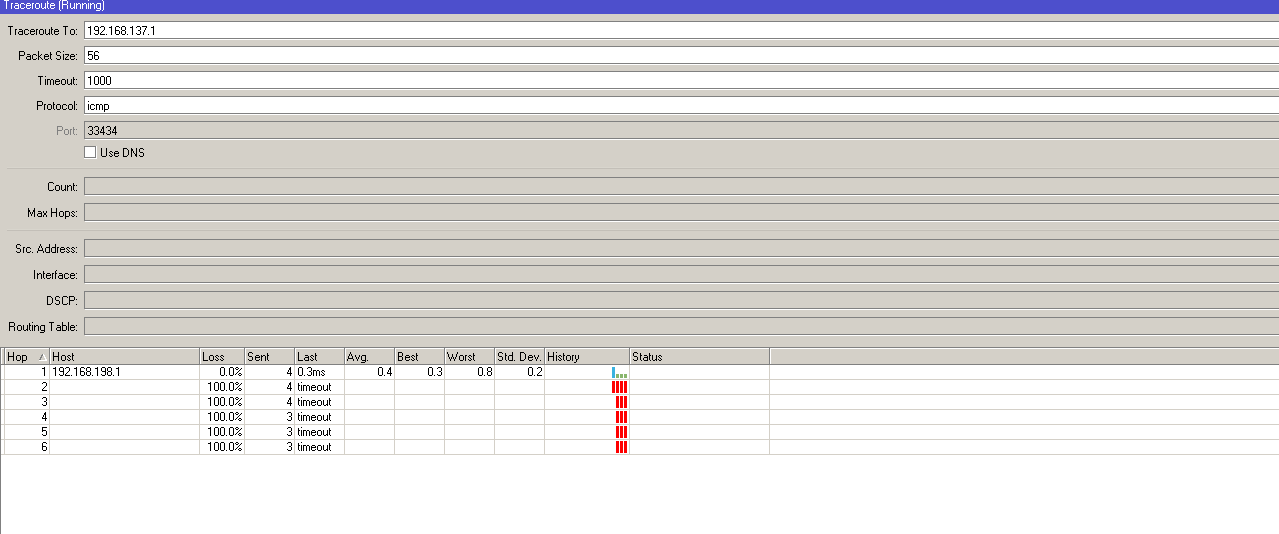

Please post here tracert to dns server ip address
And
R1&R2:

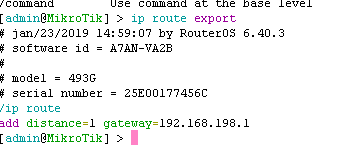

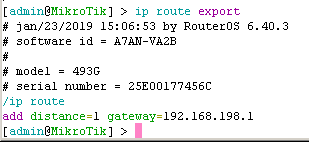

/ip route export

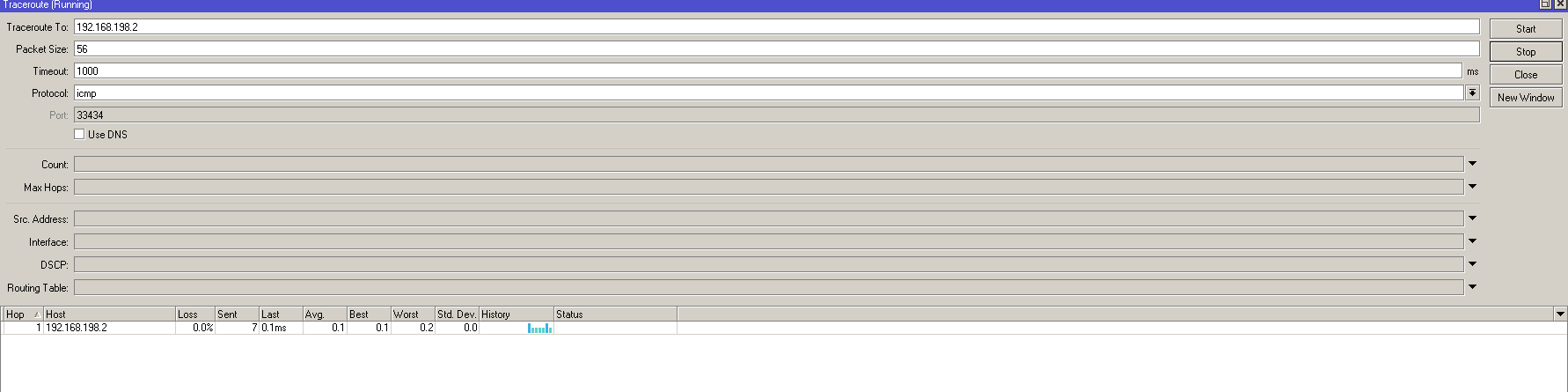

Traceroute from R1 post here
Here is your problem
Miss configuration
Add new route
Add deafult route to R1gateway=to ether8
On R1
ip route add gateway=dhcp-client-gateway ip address
R1:
/ip add pr
/ip dhcp-client export

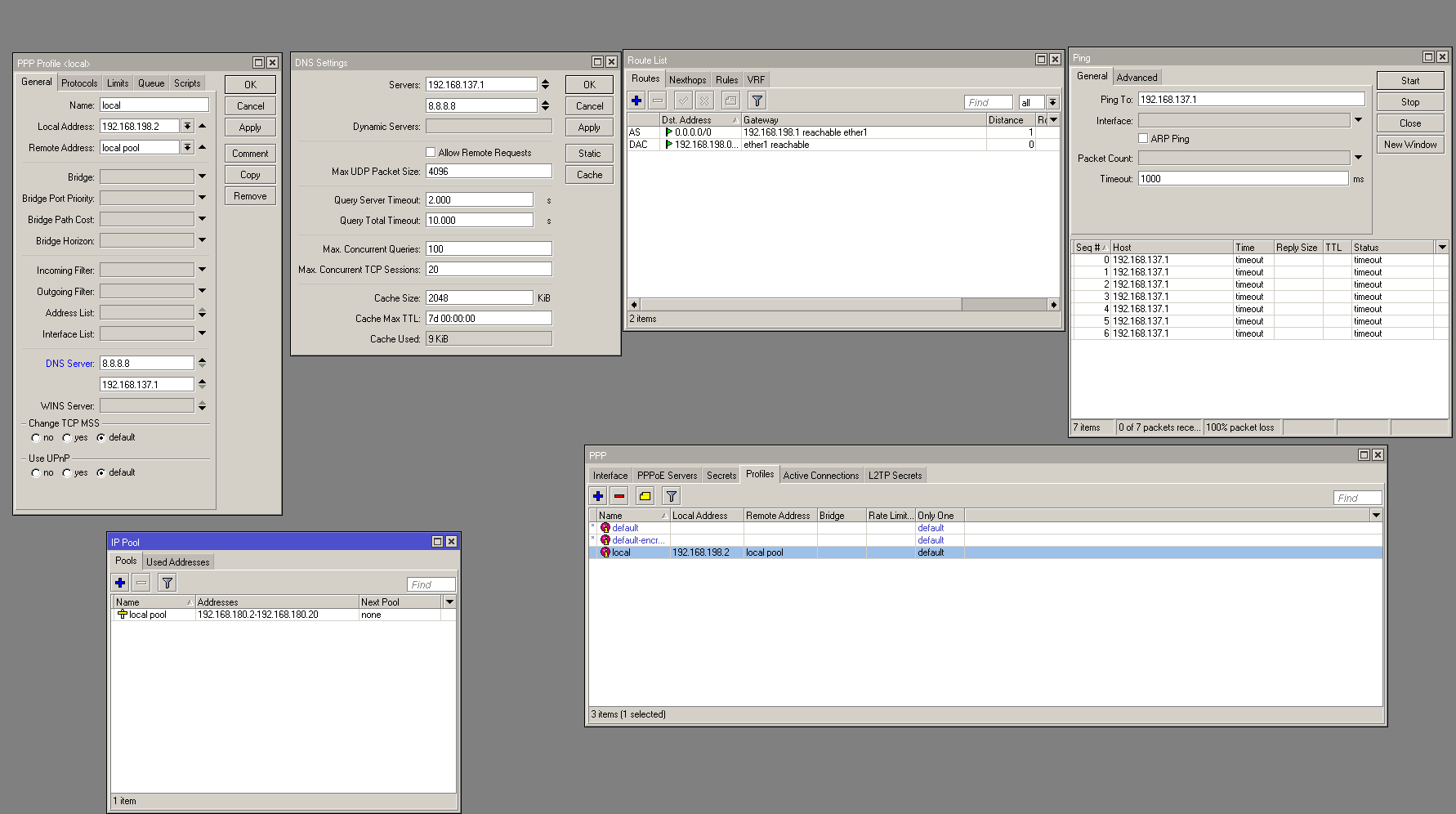

I think the problem is that r2 is not pinging the gateway of r1 I am showing all setting on r2

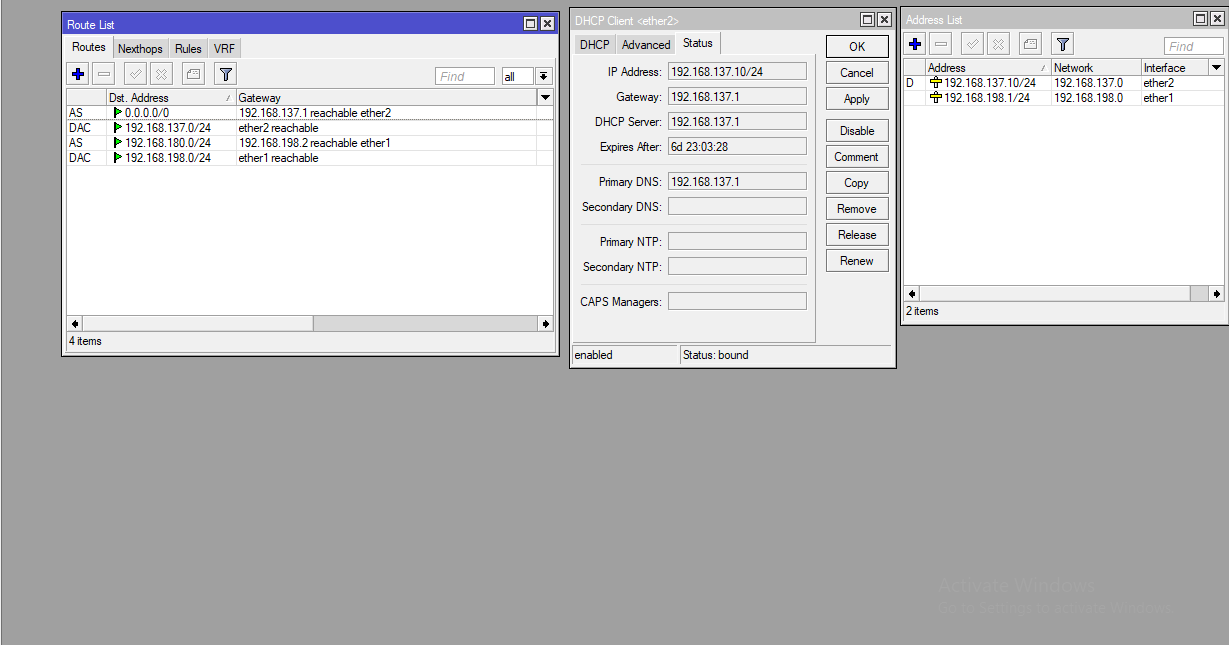

Send all of this details + ip address from R1
Everything is ok
You are nat only src address192.168.180.0/24
Your pppoe client now can access to dns 192.168.137.1
Without any problem
Disable NAT on R2 if exist
There is not nat on r2 but still the problem persists.
I do not know why but many many thanks for trying to help
