PPPoE Home Connection

RouterOS Beginner Basics
1

Hello guys !!! I need some help here !

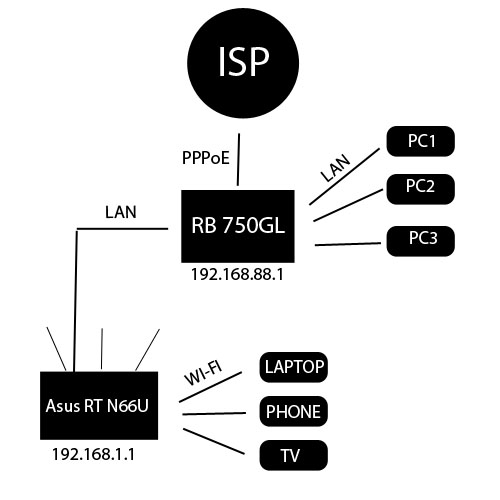

I’ve just bought a new routerboard 750GL and i have problems with configuration. I want to do something like this, If anyone could help with sugestions I would be very grateful.

2

This is correct idea. What problem do you have?

3

I need a guide step by step setup process because is the first time I make contact with this software.
I already created PPPoE by WinBox , but I’ll need to create two classes of dynamic IPs for each network and fail to do so. Can someone help me ?
What are the steps i need to go trought ?

4

I recommend to put the ASUS on the same network (192.168.88.x) and let the routerboard handle the DHCP.
Put the cable from the MikroTik on any LAN port of the ASUS and disable the DHCP server on the ASUS.

5

step by step guide

  1. set your asus wifi in AP mode or as an AP. Make sure the asus router is on the same subnet and isnt running dhcp
  2. perform the first set up of your routerboard (refer to mikrotik wiki for first time set up), set up all you like to your heart’s content
  3. create PPPOE connection and configure PPP section
  4. create firewall rules for security (tarpit everything on input from wan)
  5. create NAT and forwarding for your PPPOE connection from your LAN ip range
  6. enjoy internet

routerOS accepts IP and IP ranges in field. IF you want your entire subnet involved than the default field value would be 192.168.88.0/24. For using routerOS as a normal home router there arent many things involved but the more you read the wiki and the more you configure the more you can do with routerOS.

to create a dynamic ip range, create the ip range in pool, create the DHCP server for the interface with the IP pool and you’re set. You can even use ipv6 instead.
