problem between RB411AH and colubris networks

RouterOS Beginner Basics
1

Hey there

I was looking forwards to seean old post but nothing…(think so)

My problems is this..

Im using colubris networks (pro curve) AP and controller and I use them as an AP and wireless link between them (local mesh).

I bought a mikrotik RB411AR L4 (64MB 300MHz) to try this technology too but got stuck doing a wireless link between those two.

I did work with station pseudobridge between a adsl router (Thomson 585) but when I try this to the colubris network the status of my R52 card is searching the channels and do nothing.

Can anybody give me a solution to my problem ?

Colubris can make static links with remotes mac addresses and at the same time work as a AP for clients.

I got the RB411AR with on board card (only aux mmcx connector) and a mini pci card R52

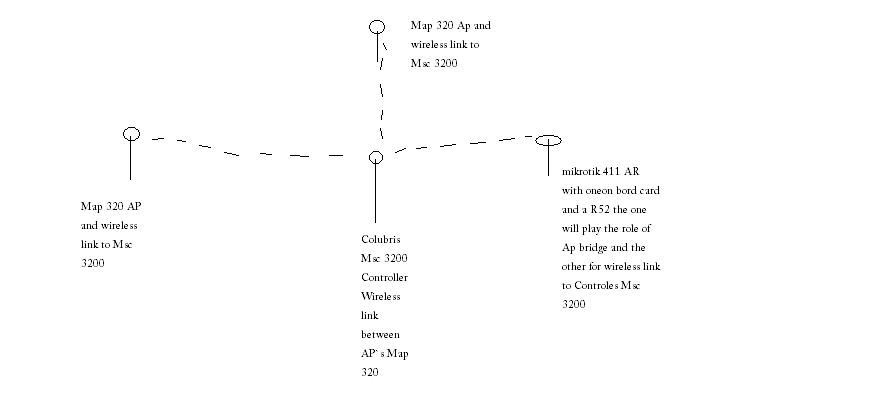

My plan
amateur diagram.jpg

Colubris examples

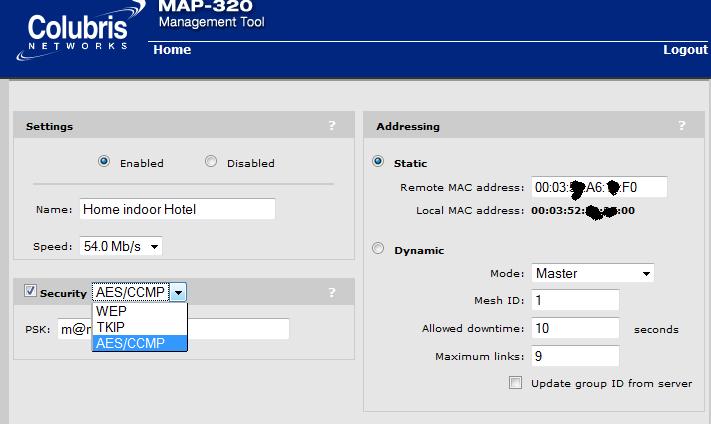

This is how colubris makes a static link using remote mac and if u want a security
colubris static link setup page.jpg

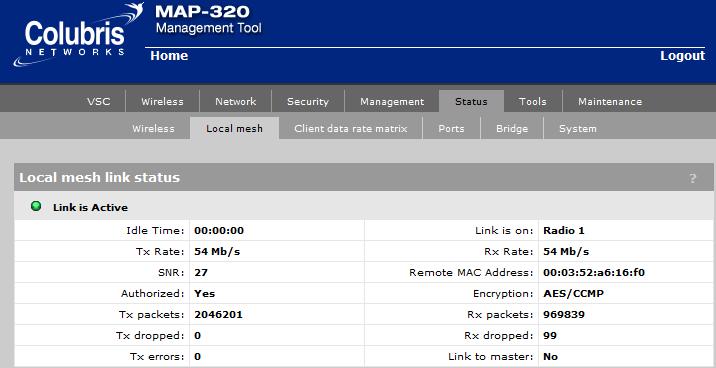

And here u can check the status if the link is up and running
wireless link status.jpg

I will appreciate any help of u guys

2

Ok guys after a long night i figure out that it needs a good signal strenght more than 20snr and needs dynamic Addressing and master (colubris)


last question is it possible to make it work with the mac addresses and lock it through a security as i shown u on the colubris pic ?

3

Ok guys after a long night i figure out that it needs a good signal strenght more than 20snr and needs dynamic Addressing and master (colubris)


last question is it possible to make it work with the mac addresses and lock it through a security as i shown u on the colubris pic ?

4

Ok Admin you can lock it

;-(
