I have routeros 6.41.2 and I am trying to set up l2tp / ipsec for windows client. Config seems to be correct but I cannot connect to it.
I managed to get it working with Android, but no luck with IOS11
routerboard was reset to default configuration after upgrade
Routerboard is rb751u-2hnd if that change something..
windows 10 error
connection to the remote computer could not be established. You might need to change network settings for this connection

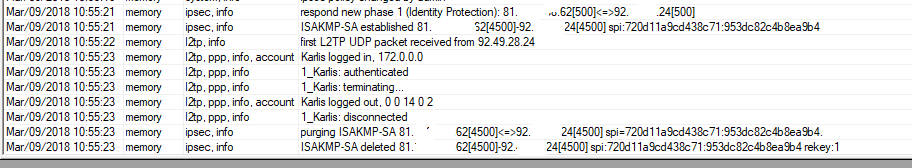

LOG from mikrotik
And here is my config, firewall ports are open.
ipsec peer
[admin@MikroTik-AP0] > /ip ipsec peer print
Flags: X - disabled, D - dynamic, R - responder
0 R address=0.0.0.0/0 auth-method=pre-shared-key secret=“1234567890” generate-policy=port-strict policy-template-grou
exchange-mode=main send-initial-contact=no nat-traversal=yes proposal-check=obey hash-algorithm=sha1 enc-algorith
dh-group=modp1024 lifetime=1d dpd-interval=2m dpd-maximum-failures=5
ipsec policy
[admin@MikroTik-AP0] > /ip ipsec policy print
Flags: T - template, X - disabled, D - dynamic, I - invalid, A - active, * - default
0 T * group=default src-address=::/0 dst-address=::/0 protocol=all proposal=default template=yes
ipsec proposal
[admin@MikroTik-AP0] > /ip ipsec proposal print
Flags: X - disabled, * - default
0 * name=“default” auth-algorithms=sha1 enc-algorithms=3des lifetime=30m pfs-group=modp1024
ppp profile
[admin@MikroTik-AP0] > /ip ipsec proposal print
Flags: X - disabled, * - default
0 * name=“default” auth-algorithms=sha1 enc-algorithms=3des lifetime=30m pfs-group=modp1024
Does anybody has any suggestions ?
Thanks in advance.
EDIT
After some more experiments, I found that it works allso from windows7 machine, so it must be something with windows / ios proposals or something like that
EDIT2
After some fiddling with IOS settings managed to get it to work, had to chose L2TP insted of IPSEC..
Still no luck with windows 10
