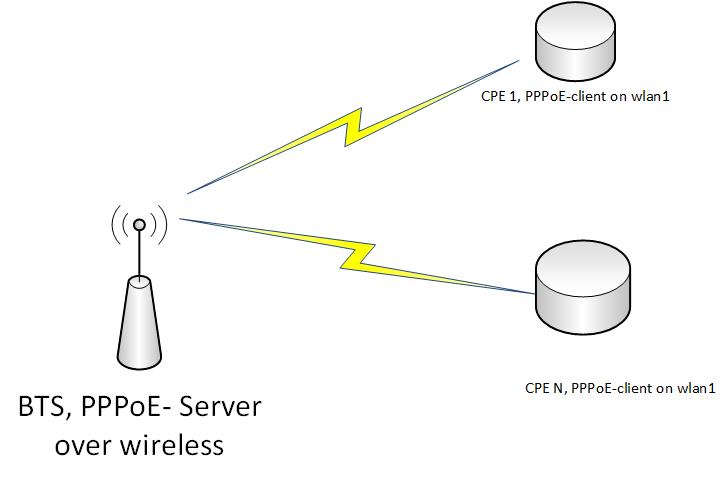

hello, i’ve problem with PPPoE over WIFI,regardless ROS version or models Routeros ( QRT,NETBOX,METMETAL), distance between BTS and CPE, numbers of CPE:
offen not established PPPoE between BTS and CPE (not all CPEs but 1-3 for BTS),but if i enter through mac-telnet ( from BTS to CPE) it established
I think that it is a problem a wireless setting, because same PPPoE configuration on ethernet interface does not give this problem
I tried to change:
-
nv2 ;TDMA period size 2- auto
-
ROs versione from 6.19 to 6.40.2
-
reduce number of CPE until 8-10
export config BTS
session PPPoE
/interface pppoe-server server
add disabled=no interface=wlan1 service-name=pppoe-service
/ppp profile
set *0 dns-server=8.8.8.8,8.8.4.4 local-address=172.22.134.1 queue-type=
pcq-download session-timeout=4d6h use-encryption=no
session wireless
/interface wireless
set [ find default-name=wlan1 ] ampdu-priorities=0,1,2,3,4,5,6,7 band=5ghz-onlyn country=italy
default-forwarding=no disabled=no frequency=5240 frequency-mode=superchannel guard-interval=long
ht-basic-mcs=mcs-0 ht-supported-mcs=mcs-0,mcs-3,mcs-4,mcs-10,mcs-11,mcs-12,mcs-13 hw-retries=15 mode=
ap-bridge nv2-cell-radius=19 nv2-preshared-key=HELLO nv2-security=enabled radio-name=
AP_HELLO rate-set=configured ssid=AP_HELLO supported-rates-a/g=6Mbps,18Mbps,24Mbps tdma-period-size=
10 tx-power=24 tx-power-mode=all-rates-fixed wireless-protocol=nv2
export config BTS
session PPPoE
/interface pppoe-client
add-default-route=yes allow=pap,chap,mschap1,mschap2
comment=Added-by-Connectivia default-route-distance=1 dial-on-demand=no
disabled=no interface=wlan1 keepalive-timeout=60 max-mru=1480 max-mtu=148
mrru=disabled password=
xxxxxx profile=default service-name=pppoe-service use-peer-dns=no
user=xxxxx
/ppp profile
name=“default” use-mpls=default use-compression=default
use-vj-compression=default use-encryption=default only-one=default
change-tcp-mss=yes address-list=“”
session wireless
/interface wireless
set [ find default-name=wlan1 ] band=5ghz-onlyn country=italy disabled=no frequency=5240 l2mtu=2290
nv2-preshared-key=HELLO nv2-security=enabled periodic-calibration=disabled radio-name=
KISSKISS ssid=HELLO supported-rates-a/g=6Mbps tx-power=26 tx-power-mode=card-rates
wireless-protocol=nv2
can you help me?
