I’m experiencing some puzzling behavior on a CRS326-24S+2Q+ running RouterOS 7.12.1, and I hope someone here might have insights. It’s a simple setup and shouldn’t really cause any problems. It’s more or less just like the ‘VLAN Example - Trunk and Access Ports’ example in the documentation found here. But there’s obviously something at my end that’s different but I cannot see it nor pinpoint it. Been at it for way to long and can’t make sense of it.
Any help is much appreciated.
Here’s the situation:

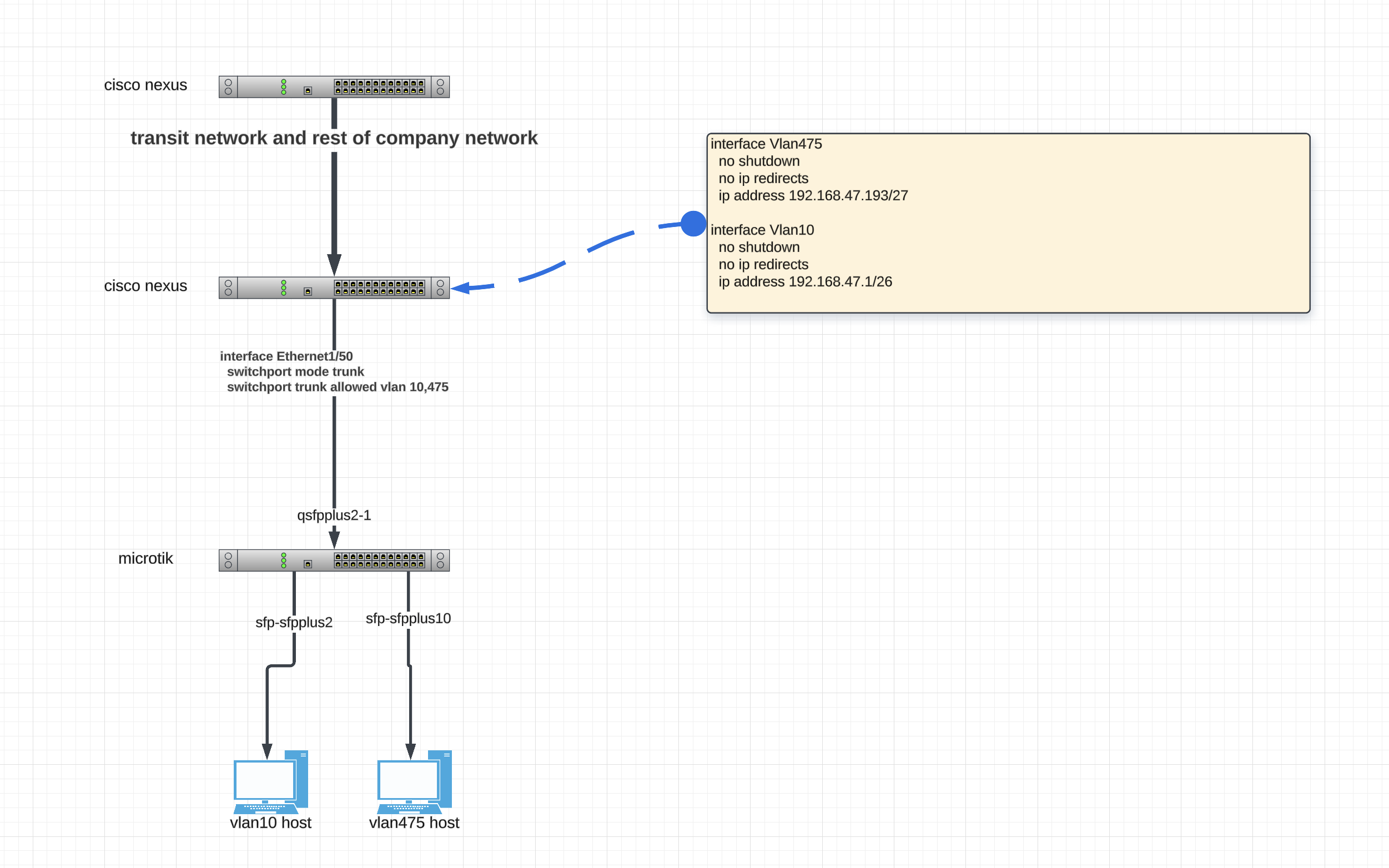

1. Setup Overview
- One trunk with two vlans (vlan10 and vlan475) connects to the MikroTik
- VLAN filtering is enabled.
- Two VLANs are configured:
- VLAN 475: Main client VLAN, operating on a 10GbE interface.
- VLAN 10: Auxiliary management VLAN, operating on multiple 1GbE interfaces.
- Both VLANs are tagged on a trunk port (qsfpplus2-1) connecting to a Cisco switch.
2. Issues Observed
Throughput on VLAN 475 (10GbE)
- Incoming traffic reaches near 10Gbps, but outgoing traffic caps at ~400Mbps.
- CPU usage spikes to 50% during outbound traffic; profiling shows high usage in “Networking” (42%), “Unclassified” (24%), and “Bridging” (5.5%).
- Hardware offloading (hw=yes) is enabled for all interfaces.
VLAN 10
- Devices on VLAN 10 can communicate locally but cannot access upstream networks, even though the gateway (192.168.47.1) is reachable.
- Outbound pings from VLAN 10 fail with “host unreachable,” despite correct routes and ARP entries.
- Sniffer shows ICMP packets entering the bridge with VLAN 10 but exiting the trunk without a tag.
3. Troubleshooting Steps Taken
- Verified VLAN filtering and bridge port settings (pvid, ingress-filtering, frame-types) for all interfaces.
- Cleared ARP entries and ensured proper routes are set.
- Disabled IGMP snooping, checked firewall rules (none active), and ensured correct tagging on the Cisco trunk.
- Hardware offloading is active on all interfaces, but the CPU still processes traffic.
4. Questions
- Why does traffic on VLAN 475 cap at ~400Mbps outbound when hardware offloading is enabled?
- On VLAN 10, why do packets lose their tag on the trunk port and fail to reach the upstream gateway?
- Could there be additional steps to debug the high “Networking” CPU usage and ensure proper VLAN tagging on the trunk?
Any guidance would be greatly appreciated! I’ve included relevant configs and outputs below. Please let me know if there’s more information I can provide.
/ip route print
0 As 0.0.0.0/0 192.168.47.193 1
DAc 192.168.47.0/26 vlan10 0
DAc 192.168.47.192/27 vlan475 0
/interface bridge vlan print detail
Flags: X - disabled, D - dynamic
0 bridge=bridge vlan-ids=475 tagged=qsfpplus2-1,bridge untagged="" current-tagged=bridge,qsfpplus2-1 current-untagged=sfp-sfpplus10
1 bridge=bridge vlan-ids=10 tagged=qsfpplus2-1,bridge untagged=sfp-sfpplus4,sfp-sfpplus2 current-tagged=bridge,qsfpplus2-1 current-untagged=sfp-sfpplus2,sfp-sfpplus4
2 D bridge=bridge vlan-ids=1 tagged="" untagged="" current-tagged="" current-untagged=bridge
/interface bridge port print detail where interface=qsfpplus2-1
interface=qsfpplus2-1 bridge=bridge priority=0x80 path-cost=10 internal-path-cost=10 edge=auto point-to-point=auto learn=auto horizon=none hw=yes auto-isolate=no restricted-role=no restricted-tcn=no pvid=1 frame-types=admit-only-vlan-tagged ingress-filtering=yes unknown-unicast-flood=yes unknown-multicast-flood=yes broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no multicast-router=temporary-query fast-leave=no
/tool sniffer quick interface=sfp-sfpplus2 ip-protocol=icmp
Columns: INTERFACE, TIME, NUM, DIR, SRC-MAC, DST-MAC, VLAN, SRC-ADDRESS, DST-ADDRESS, PROTOCOL, SIZE, CPU
INTERFACE TIME NUM DIR SRC-MAC DST-MAC VLAN SRC-ADDRESS DST-ADDRESS PROTOCOL SIZE CPU
sfp-sfpplus2 7.235 1 -> 18:FD:74:49:FB:1E EC:71:DB:B7:7D:67 10 192.168.47.200 192.168.47.45 ip:icmp 102 0
sfp-sfpplus2 7.236 2 <- EC:71:DB:B7:7D:67 18:FD:74:49:FB:1E 192.168.47.45 192.168.47.200 ip:icmp 98 0
sfp-sfpplus2 8.241 3 -> 18:FD:74:49:FB:1E EC:71:DB:B7:7D:67 10 192.168.47.200 192.168.47.45 ip:icmp 102 0
sfp-sfpplus2 8.241 4 <- EC:71:DB:B7:7D:67 18:FD:74:49:FB:1E 192.168.47.45 192.168.47.200 ip:icmp 98 0
Thanks a bunch!

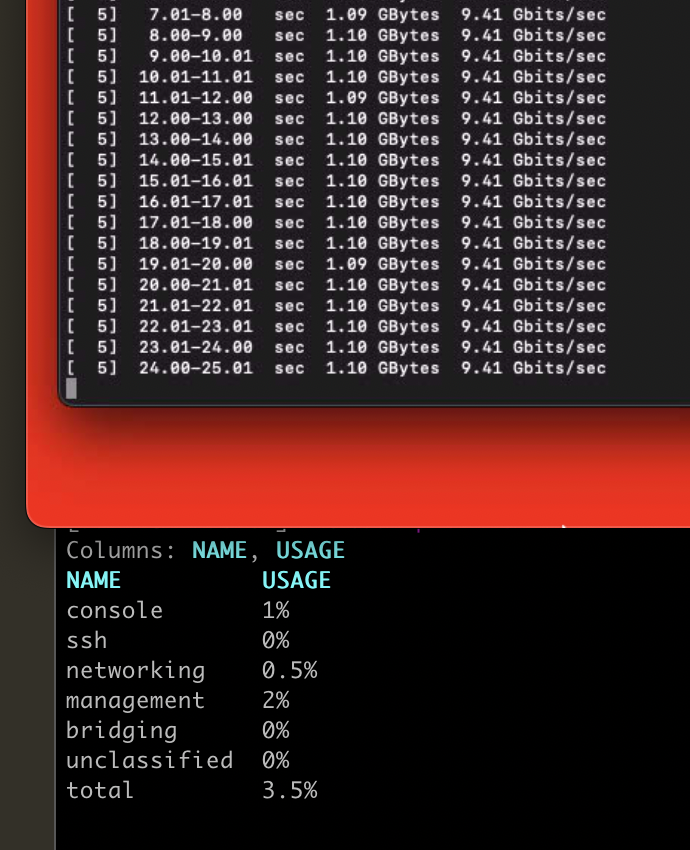

That actually helped with the speed. Now near line speed in and out on that vlan. But that doesn’t solve the vlan10 issues and the odd vlan tagging though. Thinking that I might have to abandon multiple vlans. But it shouldn’t really be an issue or even hard. So strange.
I’ll try to find the time to test that config. Many many many thanks for taking your time with this! Much appreciated.
