Problem WIth VPN Ike2

RouterOS General
1

Hi need Help for a VPN trought my Mikrotik

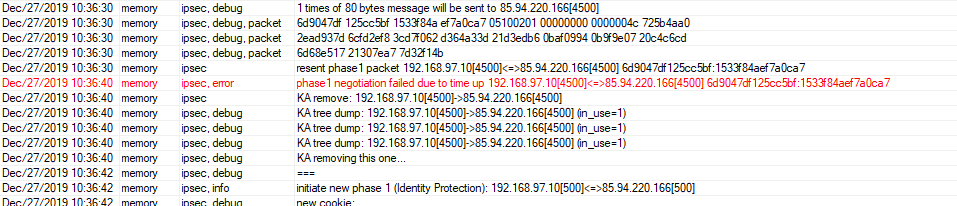

I receive this message when i’m trying to connect

this is export

add address=8x.xx.xx.xx.xx.xx/32 comment=VPN_SEEWEB name=peer3 profile=proposal_5
add enc-algorithms=aes-256-cbc,aes-256-ctr,aes-256-gcm,camellia-256 name=seeweb

/ip firewall filter
add action=accept chain=input dst-port=20,21,500,1701,4500,1194 protocol=udp
add action=accept chain=input dst-port=500,4500,1701,20,21,1194 ingress-priority=0 priority=0 protocol=tcp
add action=accept chain=input protocol=ipsec-esp
add action=accept chain=input protocol=ipsec-ah
add action=accept chain=forward connection-state=established,related dst-address=192.xx.xx.0/24 src-address=10.xx.xx.0/24
add action=accept chain=forward connection-state=established,related dst-address=10.xx.xx.0/24 src-address=192.xx.xx.0/24
/ip firewall nat
add action=accept chain=srcnat dst-address=10.xx.xx.0/24 src-address=192.xx.xx.0/24
/ip ipsec identity
add generate-policy=port-strict peer=peer1 secret=xxxxxxxx
add peer=peer3 secret=xxxxxxx

2

It says authentication failed, so does the client use the same preshared key as the server ?

3

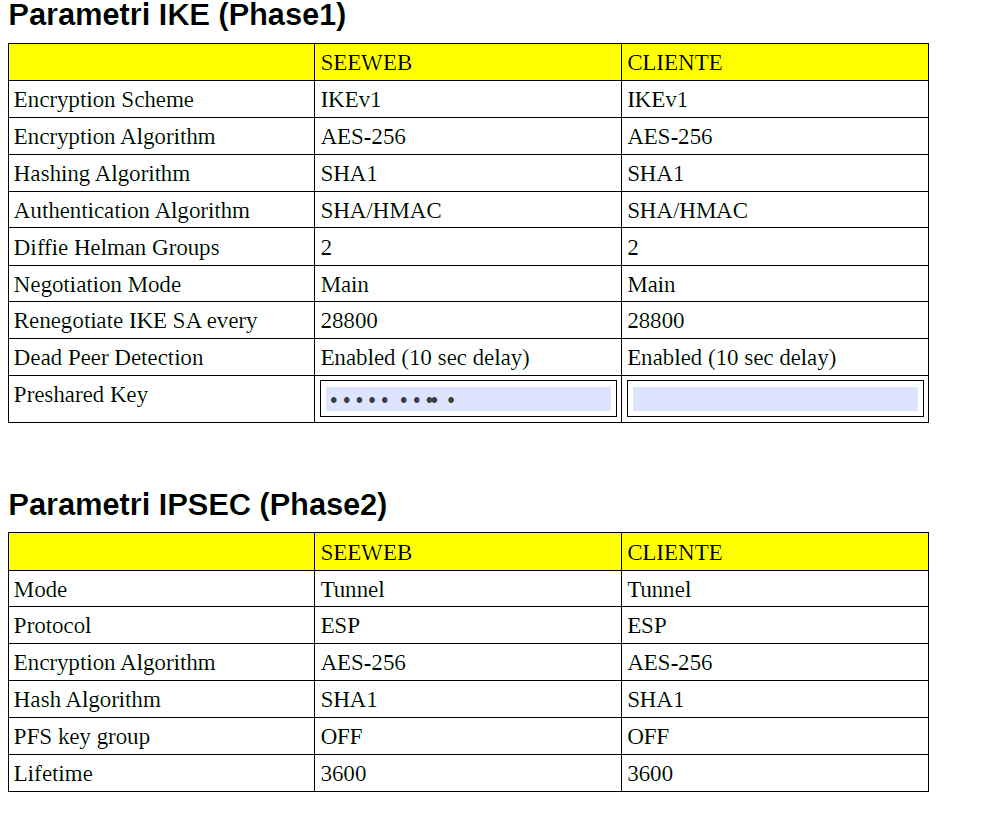

Yes confirmed that it’s ok other side it’s a Cisco Router

4

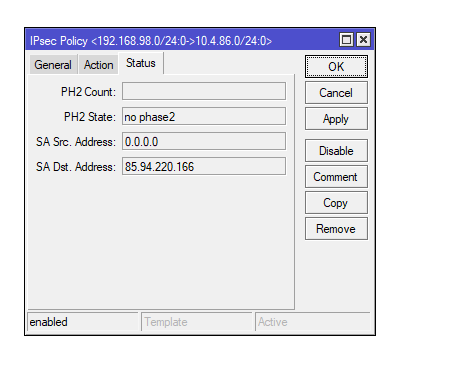

Ok but now you get a different error than in your first post…
The time up you get could be :
misconfigured Phase 1 IP addresses; firewall blocking UDP ports 500 and 4500; NAT between peers not properly translating IPsec negotiation packets.
This error message can also appear when local-address parameter is not used properly.
Source : https://wiki.mikrotik.com/wiki/Manual:IP/IPsec#Troubleshooting.2FFAQ

By the way its not really goot to show your Public IP addresses…

5

Is that because you are behind NAT and at this case 85.94… cannot respond to you! You have to set port forward to router that is before Mikrotik!

6

Hi thanks for responce,

have other VPN perfectly connected between Mikrotik, my only problem it’s this new one

other side it’s a Cisco but i cannot find problem
