The original network was built on a Ruijie Layer 3 switch. The switch added a default route 0.0.0.0/0 to 192.168.252.102, so I bought a CRS309 to bridge the egress network and set up filtering. Change the route of the Ruijie switch to 0.0.0.0/0 192.168.88.1, and then set 0.0.0.0/0 192.168.252.102 on the CRS. The rest of the intranet segments have been set up and can access the Internet normally.
The current requirement is that the school needs to conduct a large-scale exam. Since the server is in the external network and uses CDN, I used the match subdomain function of dns to match the domain name suffix, and then filtered through dst-address-list. In the nat chain, chain=dstnat action=dst-nat to-addresses=192.168.252.101 to-ports=53 protocol=udp src-address=0.0.0.0/0 dst-port=53 log=no log-prefix=“”
We have about 1,000 people taking the exam, and the maximum number of concurrent connections can reach 10,000+, so I switched to CHR (48 cores, 16G memory, set the queue to multi-queue-ethernet-default, and turn off RPS) the next day. However, the domain name cannot be resolved. Specifically, pinging any domain name is stuck and cannot be resolved successfully.
Later, I changed the NAT rules and set 20 rules. Each rule is as follows:
chain=dstnat action=dst-nat to-addresses=192.168.252.101 to-ports=53 protocol=udp src-address=172.22.113.0/24 dst-port=53 log=no log-prefix=“”

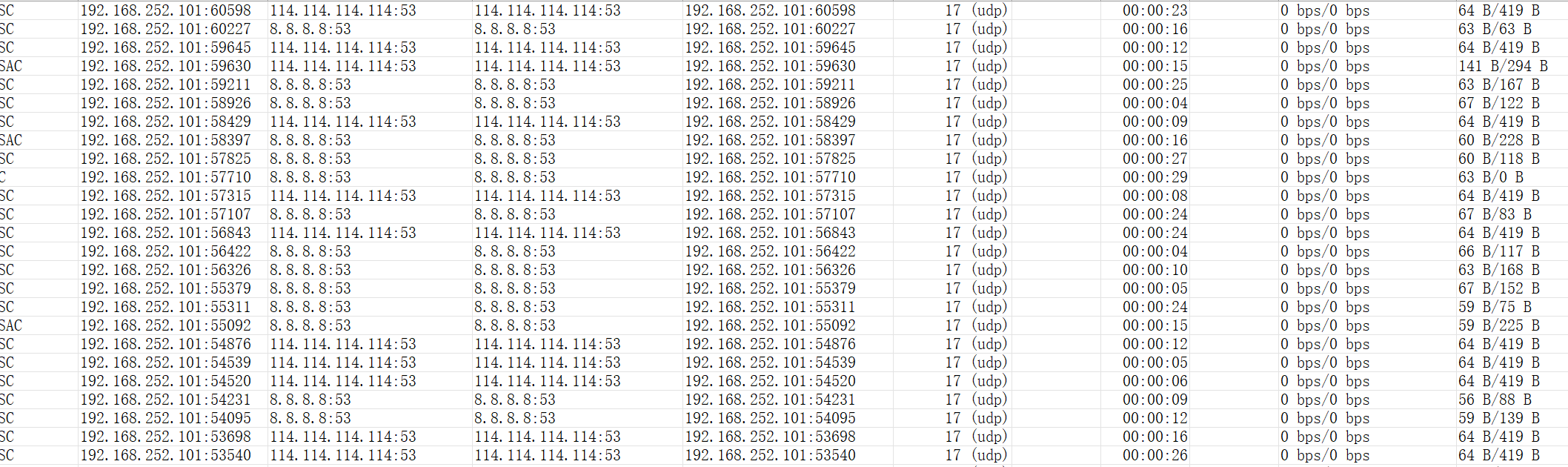

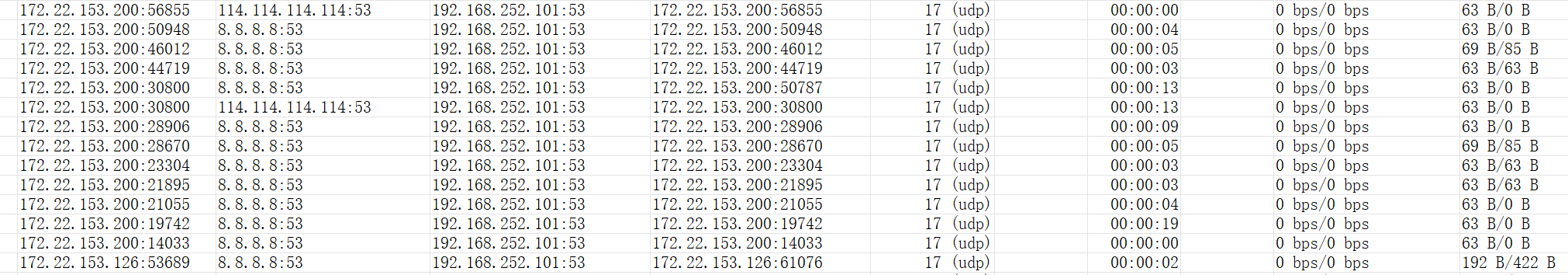

It was very normal at first, but when students logged in in batches or did questions, a large number of unresponsiveness occurred. After checking, it was found that 192.168.252.101 (CHR address) would not respond to the client’s dns request.
I want to confirm how to set it up to ensure the normal operation of an exam with 1,000 or even 2,000 people?
/queue type
set 8 mq-pfifo-limit=10
/queue interface
set ether1 queue=multi-queue-ethernet-default
set ether2 queue=multi-queue-ethernet-default
/ip address
add address=192.168.252.101/30 interface=ether1 network=192.168.252.100
add address=192.168.88.1/24 interface=ether2 network=192.168.88.0
/ip dns
set allow-remote-requests=yes cache-max-ttl=1m cache-size=204800KiB max-concurrent-queries=20000 max-concurrent-tcp-sessions=20000 max-udp-packet-size=40960 query-server-timeout=20s query-total-timeout=1m40s servers=114.114.114.114,8.8.8.8
/ip dns static
add address-list=chaoxing forward-to=114.114.114.114 match-subdomain=yes name=chaoxing.com type=FWD
add address-list=chaoxing forward-to=8.8.8.8 match-subdomain=yes name=chaoxing.com type=FWD
add address-list=chaoxing forward-to=114.114.114.114 match-subdomain=yes name=reconova.com type=FWD
add address-list=chaoxing forward-to=8.8.8.8 match-subdomain=yes name=reconova.com type=FWD
add address-list=chaoxing forward-to=114.114.114.114 match-subdomain=yes name=easemob.com type=FWD
add address-list=chaoxing forward-to=8.8.8.8 match-subdomain=yes name=easemob.com type=FWD
add address-list=chaoxing forward-to=114.114.114.114 match-subdomain=yes name=www.time.ac.cn type=FWD
add address-list=chaoxing forward-to=8.8.8.8 match-subdomain=yes name=www.time.ac.cn type=FWD
add address-list=chaoxing forward-to=114.114.114.114 match-subdomain=yes name=time.windows.com type=FWD
add address-list=chaoxing forward-to=8.8.8.8 match-subdomain=yes name=time.windows.com type=FWD
add address-list=chaoxing forward-to=114.114.114.114 match-subdomain=yes name=cn.pool.ntp.org type=FWD
add address-list=chaoxing forward-to=8.8.8.8 match-subdomain=yes name=cn.pool.ntp.org type=FWD
add address-list=chaoxing forward-to=114.114.114.114 match-subdomain=yes name=aichaoxing.com type=FWD
add address-list=chaoxing forward-to=8.8.8.8 match-subdomain=yes name=aichaoxing.com type=FWD
add address-list=chaoxing forward-to=114.114.114.114 match-subdomain=yes name=ntp.aliyun.com type=FWD
add address-list=chaoxing forward-to=8.8.8.8 match-subdomain=yes name=ntp.aliyun.com type=FWD
add address-list=qyyyfz forward-to=114.114.114.114 match-subdomain=yes name=qyyyfz.com type=FWD
add address-list=qyyyfz forward-to=8.8.8.8 match-subdomain=yes name=qyyyfz.com type=FWD
add address-list=qyyyfz forward-to=114.114.114.114 match-subdomain=yes name=chuangjianweilai.com type=FWD
add address-list=qyyyfz forward-to=8.8.8.8 match-subdomain=yes name=chuangjianweilai.com type=FWD
/ip firewall address-list
add address=172.22.113.0/24 list=jszx
add address=172.22.115.0/24 disabled=yes list=jszx
add address=172.22.116.0/24 disabled=yes list=jszx
add address=172.22.118.0/24 list=jszx
add address=172.22.119.0/24 disabled=yes list=jszx
add address=172.22.120.0/24 disabled=yes list=jszx
add address=172.22.121.0/24 disabled=yes list=jszx
add address=172.22.122.0/24 list=jszx
add address=172.22.127.0/24 disabled=yes list=jszx
add address=172.22.128.0/24 disabled=yes list=jszx
add address=172.22.129.0/24 disabled=yes list=jszx
add address=172.22.130.0/24 disabled=yes list=jszx
add address=172.22.131.0/24 disabled=yes list=jszx
add address=172.22.132.0/24 disabled=yes list=jszx
add address=172.22.136.0/23 list=jszx
add address=172.22.139.0/24 list=jszx
add address=172.22.140.0/24 disabled=yes list=jszx
add address=172.22.141.0/24 disabled=yes list=jszx
add address=172.22.142.0/24 disabled=yes list=jszx
add address=172.22.149.0/24 disabled=yes list=jszx
add address=172.22.151.0/24 disabled=yes list=jszx
add address=172.22.152.0/24 disabled=yes list=jszx
add address=172.22.153.0/24 disabled=yes list=jszx
add address=172.22.154.0/24 disabled=yes list=jszx
add address=39.107.80.219 list=qyyyfz
/ip firewall filter
add action=accept chain=forward comment="allow wireguard" src-address=172.22.114.25
add action=accept chain=forward comment="accept jiketang conn" src-address=172.22.114.196
add action=accept chain=forward comment="allow 114 dns" dst-address=114.114.114.114
add action=accept chain=forward comment="allow google dns" dst-address=8.8.8.8
add action=accept chain=forward comment="allow google dns" dst-address=192.168.252.101
add action=accept chain=forward comment="allow chaoxing conn" dst-address-list=chaoxing src-address-list=jszx
add action=accept chain=forward comment="allow chaoxing conn" dst-address-list=qyyyfz src-address-list=jszx
add action=accept chain=forward comment="allow established related untracked conn" connection-state=established,related,untracked
add action=drop chain=forward comment="drop other conn" connection-state=new protocol=tcp src-address-list=jszx
add action=drop chain=forward comment="drop other conn" protocol=udp src-address-list=jszx
/ip firewall nat
add action=dst-nat chain=dstnat comment="6 floor conn" disabled=yes dst-port=53 protocol=udp src-address=172.22.130.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat disabled=yes dst-port=53 protocol=udp src-address=172.22.131.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat disabled=yes dst-port=53 protocol=udp src-address=172.22.141.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat disabled=yes dst-port=53 protocol=udp src-address=172.22.140.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat disabled=yes dst-port=53 protocol=udp src-address=172.22.132.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat comment="5 floor conn" disabled=yes dst-port=53 protocol=udp src-address=172.22.128.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat disabled=yes dst-port=53 protocol=udp src-address=172.22.129.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat disabled=yes dst-port=53 protocol=udp src-address=172.22.151.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat disabled=yes dst-port=53 protocol=udp src-address=172.22.142.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat disabled=yes dst-port=53 protocol=udp src-address=172.22.120.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat disabled=yes dst-port=53 protocol=udp src-address=172.22.119.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat comment="4 floor conn" dst-port=53 protocol=udp src-address=172.22.113.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat dst-port=53 protocol=udp src-address=172.22.118.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat dst-port=53 protocol=udp src-address=172.22.122.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat dst-port=53 protocol=udp src-address=172.22.115.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat dst-port=53 protocol=udp src-address=172.22.139.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat comment="3 floor conn" disabled=yes dst-port=53 protocol=udp src-address=172.22.149.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat disabled=yes dst-port=53 protocol=udp src-address=172.22.127.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat disabled=yes dst-port=53 protocol=udp src-address=172.22.116.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat disabled=yes dst-port=53 protocol=udp src-address=172.22.153.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat disabled=yes dst-port=53 protocol=udp src-address=172.22.121.0/24 to-addresses=192.168.252.101 to-ports=53
add action=dst-nat chain=dstnat comment="2 floor conn" dst-port=53 protocol=udp src-address=172.22.136.0/23 to-addresses=192.168.252.101 to-ports=53
