Problems with VRRP

RouterOS General
1

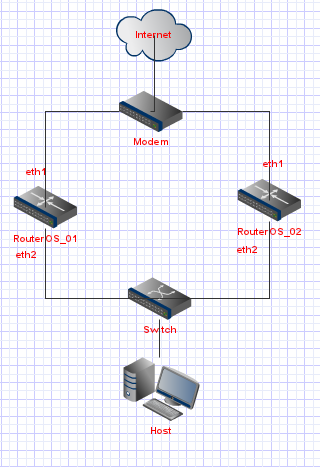

Hello everyone, I’m trying VRRP in RouterOS 5.5, follow below my simple topology:

http://imageshack.us/photo/my-images/21/screenshotyww.png/ or see the Attachments.

Settings on RouterOS_01(VRRP Master):

[admin@MikroTik_01] > ip address print detail
Flags: X - disabled, I - invalid, D - dynamic
 0   address=172.168.0.201/24 network=172.168.0.0 broadcast=172.168.0.255 interface=ether1_internet actual-interface=ether1_internet

 1   address=192.168.0.2/24 network=192.168.0.0 broadcast=192.168.0.255 interface=ether2_LAN actual-interface=ether2_LAN

 2   address=192.168.0.1/32 network=192.168.0.0 broadcast=192.168.0.255 interface=vrrp1 actual-interface=vrrp1
[admin@MikroTik_01] >



[admin@MikroTik_01] > interface vrrp print detail
Flags: X - disabled, I - invalid, R - running, M - master, B - backup
 0   RM name="vrrp1" mtu=1500 mac-address=00:00:5E:00:01:01 arp=enabled interface=ether2_LAN vrid=1 priority=255 interval=1 preemption-mode=yes authentication=none
        password="" on-backup="" on-master=""
[admin@MikroTik_01] >

Settings on RouterOS_02(VRRP Backup):

[admin@MikroTik_02] > ip address print detail
Flags: X - disabled, I - invalid, D - dynamic
 0   address=172.168.0.202/24 network=172.168.0.0 broadcast=172.168.0.255 interface=ether1_internet actual-interface=ether1_internet

 1   address=192.168.0.3/24 network=192.168.0.0 broadcast=192.168.0.255 interface=ether2_LAN actual-interface=ether2_LAN

 2   address=192.168.0.1/24 network=192.168.0.0 broadcast=192.168.0.255 interface=vrrp1 actual-interface=vrrp1
[admin@MikroTik_02] >

[admin@MikroTik_02] > interface vrrp print detail
Flags: X - disabled, I - invalid, R - running, M - master, B - backup
 0    B name="vrrp1" mtu=1500 mac-address=00:00:5E:00:01:01 arp=enabled interface=ether2_LAN vrid=1 priority=100 interval=1 preemption-mode=yes authentication=none
        password="" on-backup="" on-master=""
[admin@MikroTik_02] >

I’m not even “ping” on IP 192.168.0.1 from my host which have the following settings:
IP: 192.168.0.10/24
GW: 192.168.0.1

Does anyone here can help me?

2

Your virtual IP isn’t the same on both machines: on the master you’re using 192.168.0.1/32, on the backup you’re using 192.168.0.1/24.

3

Ok fewi, thanks for your reply. I see some tutorials/documents and I get one that says to me to use a /32 and others to use a /24. Can I use a /24 network in my vrrp interface?

But whatever, I can’t ping my gateway, even I set a /32 or /24. For example, this configuration doesn’t work for me:



Settings on RouterOS_01:

[admin@MikroTik_01] > ip address print detail
Flags: X - disabled, I - invalid, D - dynamic
0   address=172.168.0.201/24 network=172.168.0.0 broadcast=172.168.0.255 interface=ether1_internet actual-interface=ether1_internet

1   address=192.168.0.2/24 network=192.168.0.0 broadcast=192.168.0.255 interface=ether2_LAN actual-interface=ether2_LAN

2   address=192.168.0.1/24 network=192.168.0.0 broadcast=192.168.0.255 interface=vrrp1 actual-interface=vrrp1
[admin@MikroTik_01] >



[admin@MikroTik_01] > interface vrrp print detail
Flags: X - disabled, I - invalid, R - running, M - master, B - backup
0   RM name="vrrp1" mtu=1500 mac-address=00:00:5E:00:01:01 arp=enabled interface=ether2_LAN vrid=1 priority=255 interval=1 preemption-mode=yes authentication=none
        password="" on-backup="" on-master=""
[admin@MikroTik_01] >

Settings on RouterOS_02(VRRP Backup):

[admin@MikroTik_02] > ip address print detail
Flags: X - disabled, I - invalid, D - dynamic
0   address=172.168.0.202/24 network=172.168.0.0 broadcast=172.168.0.255 interface=ether1_internet actual-interface=ether1_internet

1   address=192.168.0.3/24 network=192.168.0.0 broadcast=192.168.0.255 interface=ether2_LAN actual-interface=ether2_LAN

2   address=192.168.0.1/24 network=192.168.0.0 broadcast=192.168.0.255 interface=vrrp1 actual-interface=vrrp1
[admin@MikroTik_02] >

[admin@MikroTik_02] > interface vrrp print detail
Flags: X - disabled, I - invalid, R - running, M - master, B - backup
0    B name="vrrp1" mtu=1500 mac-address=00:00:5E:00:01:01 arp=enabled interface=ether2_LAN vrid=1 priority=100 interval=1 preemption-mode=yes authentication=none
        password="" on-backup="" on-master=""
[admin@MikroTik_02] >

any idea

4

Last config is not going to work, because virtual IP must be /32. And from configuration output I can see that you are not using v5.5 as you said in first post. It is either 4.x or early v5 RC version.
