PtP Link with 10db difference in chain 0 and 1

RouterOS Wireless Networking
1

Hi,

I have this ptp link, with a 10db difference between chain 0 and chain 1 (both signal and tx-singnal). The boards are RB 711G and the antennas are UBNT RD 30.
Tried to align better the link, but I cant get more. Tried to change the cables also.

Any suggestion?

             tx-rate: 270.0Mbps
                 rx-rate: 90.0Mbps
                    ssid: LINK1
                   bssid: D4:CA:6D:82:xx:xx
              radio-name: radio1
         signal-strength: -66dBm
     signal-strength-ch0: -67dBm
     signal-strength-ch1: -76dBm
      tx-signal-strength: -54dBm
  tx-signal-strength-ch0: -54dBm
  tx-signal-strength-ch1: -64dBm
             noise-floor: -112dBm
         signal-to-noise: 46dB
                  tx-ccq: 80%
                  rx-ccq: 37%
   authenticated-clients: 1
        current-distance: 13
                wds-link: no
Optimize SXT Lite 5 PtP Link , bad CCQ
2

Mmmmm!! :confused:

Have you tried to change the pigtale cables too?
Have you picked MANUAL Tx in any of them or so?
Try to REBOOT BOTH boards too at the config that you have.

3

Hi,

fixed replacing the antenna at one side.

Does the SNR is too high? the tx power is now at “default”, should I set it to manual and lower it?


station side:

  signal-strength: -53dBm
     signal-strength-ch0: -55dBm
     signal-strength-ch1: -57dBm
      tx-signal-strength: -52dBm
  tx-signal-strength-ch0: -56dBm
  tx-signal-strength-ch1: -56dBm
             noise-floor: -113dBm
         signal-to-noise: 60dB
                  tx-ccq: 71%
                  rx-ccq: 78%
   authenticated-clients: 1
        current-distance: 13
                wds-link: no
                  bridge: yes

This is the registration table stats on STATION side:

interface=wlan1 radio-name="radio1" mac-address=xxxxx
   ap=yes wds=no bridge=yes rx-rate="240.0Mbps" tx-rate="180.0Mbps"
   packets=416830,714804 bytes=112441462,984946617 frames=147838,679948
   frame-bytes=113409671,959811916 uptime=17h25m15s last-activity=0ms
   signal-strength=-53dBm signal-to-noise=60dB signal-strength-ch0=-55dBm
   signal-strength-ch1=-58dBm tx-signal-strength-ch0=-55dBm
   tx-signal-strength-ch1=-56dBm
   strength-at-rates=-53dBm@6Mbps 0ms,-54dBm@HT20-0 17h23m14s990ms,-55dBm@HT20-
                  1 17h23m23s390ms,-54dBm@HT20-2 3h34m39s60ms,-55dBm@HT20-3
                  3h34m38s220ms,-56dBm@HT20-4 3h2m43s630ms,-60dBm@HT20-5
                  2h43m21s660ms,-61dBm@HT20-6 13m24s200ms,-62dBm@HT20-7 13m23s,-
                  57dBm@HT40-0 17h23m27s610ms,-57dBm@HT40-1 3h35m42s990ms,-
                  59dBm@HT40-2 2h58m26s470ms,-58dBm@HT40-3 7m37s450ms,-
                  60dBm@HT40-4 10ms,-61dBm@HT40-5 10ms,-64dBm@HT40-6 10ms,-
                  66dBm@HT40-7 40ms
   tx-signal-strength=-52dBm tx-ccq=68% rx-ccq=77% distance=13
   routeros-version="5.14" encryption=aes-ccm group-encryption=aes-ccm
   tdma-timing-offset=81 tdma-tx-size=2544 tdma-rx-size=4000 tdma-retx=11
   tdma-winfull=53

AP side:

status: running-ap
                   band: 5ghz-n
              frequency: 5500MHz
      wireless-protocol: nv2
            noise-floor: -114dBm
     registered-clients: 1
  authenticated-clients: 1
      current-tx-powers: 6Mbps:19(19/22),9Mbps:19(19/22),12Mbps:19(19/22),
                         18Mbps:19(19/22),24Mbps:19(19/22),36Mbps:16(16/19),
                         48Mbps:13(13/16),54Mbps:12(12/15),HT20-0:19(19/22),
                         HT20-1:18(18/21),HT20-2:17(17/20),HT20-3:17(17/20),
                         HT20-4:16(16/19),HT20-5:13(13/16),HT20-6:12(12/15),
                         HT20-7:12(12/15),HT40-0:18(18/21),HT40-1:17(17/20),
                         HT40-2:16(16/19),HT40-3:16(16/19),HT40-4:15(15/18),
                         HT40-5:12(12/15),HT40-6:11(11/14),HT40-7:11(11/14)
    notify-external-fdb: no

This is the registration table stats on AP side:

0 interface=wlan1 radio-name="link1" mac-address=xxxxxx ap=no
   wds=no bridge=yes rx-rate="180.0Mbps" tx-rate="240.0Mbps"
   packets=276327,180974 bytes=370968919,39546937 frames=260900,85032
   frame-bytes=371067093,24750861 uptime=17h27m43s last-activity=0ms
   signal-strength=-52dBm signal-to-noise=61dB signal-strength-ch0=-56dBm
   signal-strength-ch1=-56dBm tx-signal-strength-ch0=-55dBm
   tx-signal-strength-ch1=-58dBm
   strength-at-rates=-52dBm@6Mbps 0ms,-59dBm@54Mbps 260ms,-53dBm@HT20-0
                  3h3m41s60ms,-54dBm@HT20-1 3h3m36s340ms,-54dBm@HT20-2
                  3h3m45s450ms,-55dBm@HT20-3 1h30m44s390ms,-56dBm@HT20-4
                  34m24s120ms,-59dBm@HT20-5 5m430ms,-61dBm@HT20-6 4m58s630ms,-
                  61dBm@HT20-7 5m1s600ms,-57dBm@HT40-0 3h3m53s120ms,-58dBm@HT40-
                  1 1h34m10s40ms,-59dBm@HT40-2 37m7s730ms,-59dBm@HT40-3 20ms,-
                  57dBm@HT40-4 30ms,-63dBm@HT40-5 40ms,-64dBm@HT40-6 100ms,-
                  65dBm@HT40-7 1s430ms
   tx-signal-strength=-53dBm tx-ccq=77% rx-ccq=71% distance=13
   routeros-version="5.21" last-ip=10.250.1.7 encryption=aes-ccm
   group-encryption=aes-ccm tdma-timing-offset=81 tdma-tx-size=3056
   tdma-rx-size=2544 tdma-retx=11 tdma-winfull=1
4

DON’T touch anything!!!.. :smiley:

Now let’s fix our Tx/Rx CCQ not to have “ups and downs” in the HT MCS table of the wireless config.

Go first to AP side and check via winbox from MCS 0 up to (and) MCS 12 on both tables. All the others uncheck it. (MCS 13, 14, 15)
Then do the same on CLE too.
By doing so, you will be able to STABLE LOCK at 180Mbps both with HIGH signal quality.
If you are still BELOW 90% CCQ on Tx or on Rx, UNCHECK the MCS 12 too (leave up to MCS 11).
Your last will be the MCS 11 because ALL of the below, DON’T WORK. (You will be oblidged to lock from MCS 7 and below then that they work).
IF you can’t get CCQ ABOVE 90% from the above settings and it fluctuates a lot, then you have interfearence from something else.
After doing so, REBOOT BOTH AP and CLE.

EDIT: You MUST run a bandwidth test (or something else) on BOTH to see where you are locked to.

5

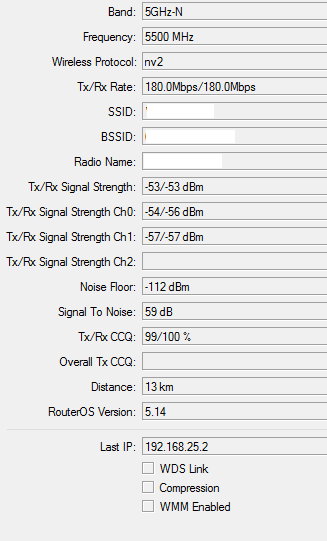

Many Thanks!! Now the CCQ is stable at 99/100% both sides. :smiley:

The results are:

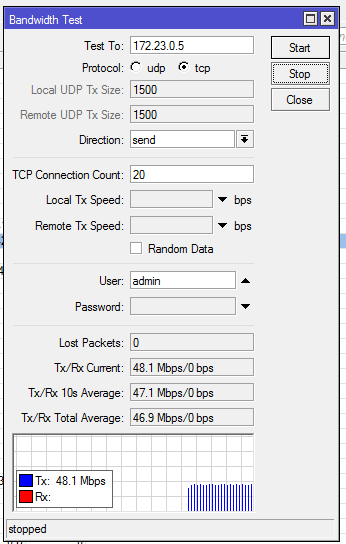

TCP test:

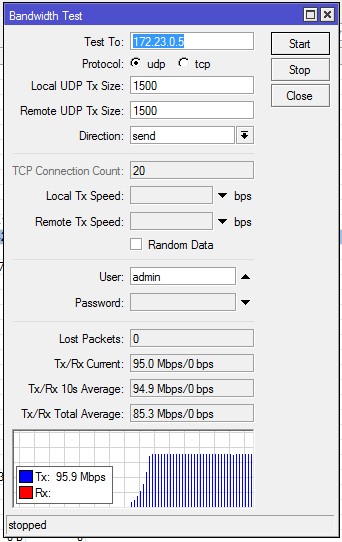

UDP test:

6

Heh, heh, heh…THAT’S IT M8… :smiley:

DON’T TOUCH ANYTHING now…MAKE you backups and your export compacts to have them and you’re ready. :smiley:

7

Hello There! I have done a PtP wireless links with router board RB433 with two wlan cards R52HN (dual chain). I have done ap-bridge wireless configuration mode on RB433 board and station bridge on the another sites. All the other station sites are at different directions. So i decided to utilize the dual chain R52HN radio cards with single chain 24dBi grid antennas for different location based station directions that is four different directions with chain0 connectors to two directions and chain1 connectors to another two station directions. For chain0 link connectivity at station end i have used Mikrotik groove52Hpn having single chain0 and link connected good with Rx/Tx signal strength -65/-63dBm. For chain1 connectivity i am using Mikrotik dual chain DISC Lite 5 with activating both chain0 and chain1 on this station end, as there is no radio with single chain1. But chain1 is not making link from AP base site to this dual chain DISC Lite 5 station. It must work at least with chain1 on this dual chain DISC Lite 5 station. Why this is so it must detect the station and get connected? Any link connectivity technical support will be appreciated from Mikrotik Wireless Network Exert here. Thank you very much.
IMG_20170725_132438 (Copy).jpg

8

My advice would be not to connect a dual chain client to a single chain ap

9

Thanks for your advice. I understand your concern very well wireless point of view. But right now i have no other option to upgrade the AP site and at the same time would like to utilizing dual chain connectivity with different configuration setup. I have tried to work to align and configure wireless setting one more time again visiting at AP base site and now one remote dual chain client site get connected with Tx/Rx signal strength at chain1 is -81/-76dBm and at chain0 -77/-95 dBm and overall signal strength is -75/-76dBm at registration tab. Should i make some more configuration changes at AP site for better signals. Thanks.

10

Hi,
What command did you use to get this output ?
signal-strength: -53dBm
signal-strength-ch0: -55dBm
signal-strength-ch1: -57dBm
tx-signal-strength: -52dBm
tx-signal-strength-ch0: -56dBm
tx-signal-strength-ch1: -56dBm
noise-floor: -113dBm
signal-to-noise: 60dB
tx-ccq: 71%
rx-ccq: 78%
authenticated-clients: 1
current-distance: 13
wds-link: no
bridge: yes

Best Regards
Esben
