Public IP NAT Rule Issue

RouterOS Beginner Basics
1

Hello,

I want to assign one of my WAN IPs (public IPs) to my User and I have configured my Router as below but still not working;

NAT Rule

Chain: srcnat
src-address: 192.168.100.20 (private ip)

Action: netmap
To Addresses: 301.102.XX.20 (public ip)

Note! The 301.102.XX.20 already added to WAN-Ethernet in Address list.

The User WAN IP not change to the assigned Public IP.

How do I make the assigned Public IP work for the User?

2

use action src-nat, not netmap.

3

Action changed to “src-nat” and still the same problem… user WAN IP not change to the 301.102.XX.20

4

ip 301.102.XX.20 is not a valid one, you can’t change it to that. src-nat is the correct action, check the order of other nat rules and move the new one up on top.

5

IP 301.102.XX.20 is just a sample here… I’m using valid public IP.

Yes, I understand that the rule is correct but is not working on my router, I don’t understand what could be the problem.

Even the action netmap should work, if not the problem.

MikroTk Guru Guys, please help out!!

6

What about order of NAT rules? They are evaluated from top to bottom, first one matching executes.

7

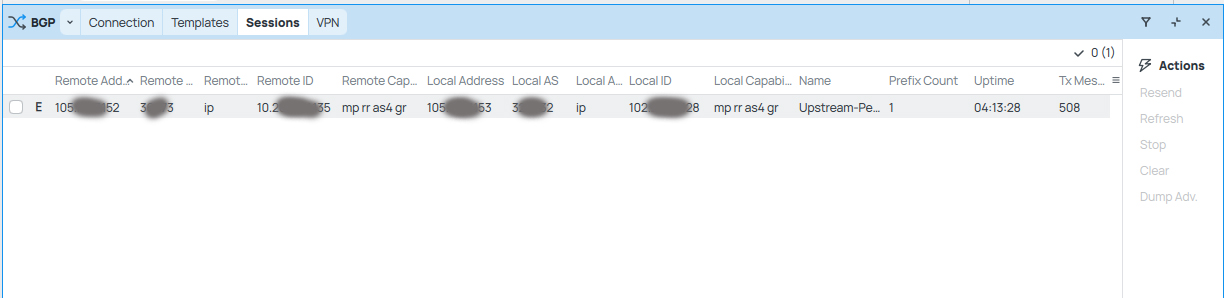

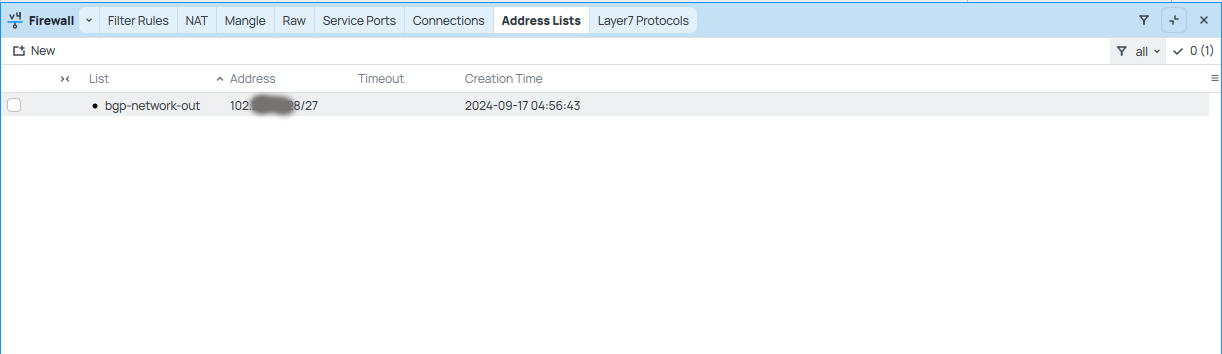

Attached images here are my settings…

The advertised network IP not route in the route list…

8

You have two rules in srcnat chain. The screenshots don’t show all the gory details, but … masquerade rule is higher than “normal” src-nat rule. If masquerade rule selection rules match the packets which src-nat rule is supposed to act on, then masquerade rule will do it’s job and src-nat rule won’t get evaluated (and executed).

If you’re unsure about it, create text export of NAT section, and copy-paste them here (execute /ip/firewall/nat/export to show NAT rules only in full detail).

9

I moved the src-nat rule to top and now working perfectly.

Thanks.
