Question: Link / 2 legs / 3,7 and 0,7 km / Configuration?

RouterOS Beginner Basics
1

Hey all,

the goal is to built up a backbone to provide internet.

Internet will be at *AP1 (RB133 1xRC52)
24dbi Panel
|
Link 3,7 km
|
24dbi Panel
*AP2 (RB133 3xRC52) --> 1x Omni
18dbi Panel
|
Link 0,7 km
|
18 dbi Panel
*AP3 /RB133 2xRC52) --> 1x Omni

What settings I have to do?

Thanks

Ralph

DSL für KHN

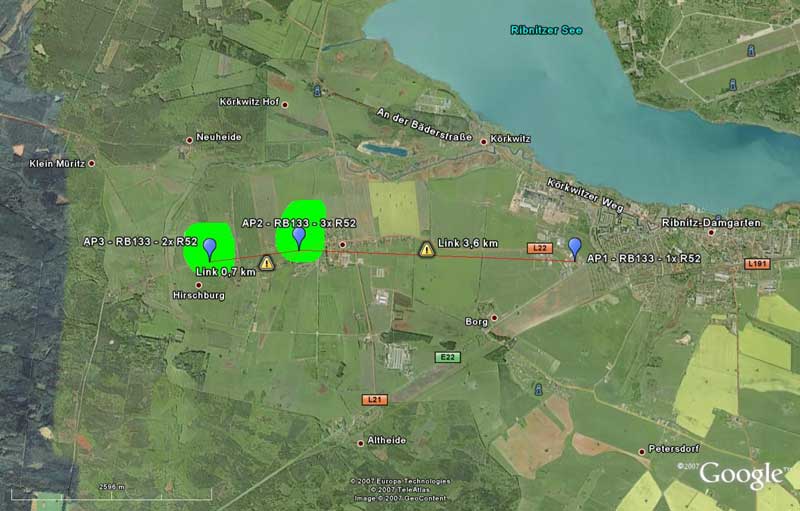

uebersicht_link.jpg800×511 51.9 KB

2

I have tried a configuration like it is described on wiki.mikrotik.com.

WDS-Bridge between the 3x RB133.

Would you recommend the config or mention another one?

Thanks

Ralph

3

your choice looks ok.

4

I prefer AP3 connected directly to AP1, not through AP2.

5

Is not possible because there is no direct sight between them so I have to go over a relais.

Ralph

6

oh, ic… so should go with repeating your signal on AP2.
