Situation is absurd.

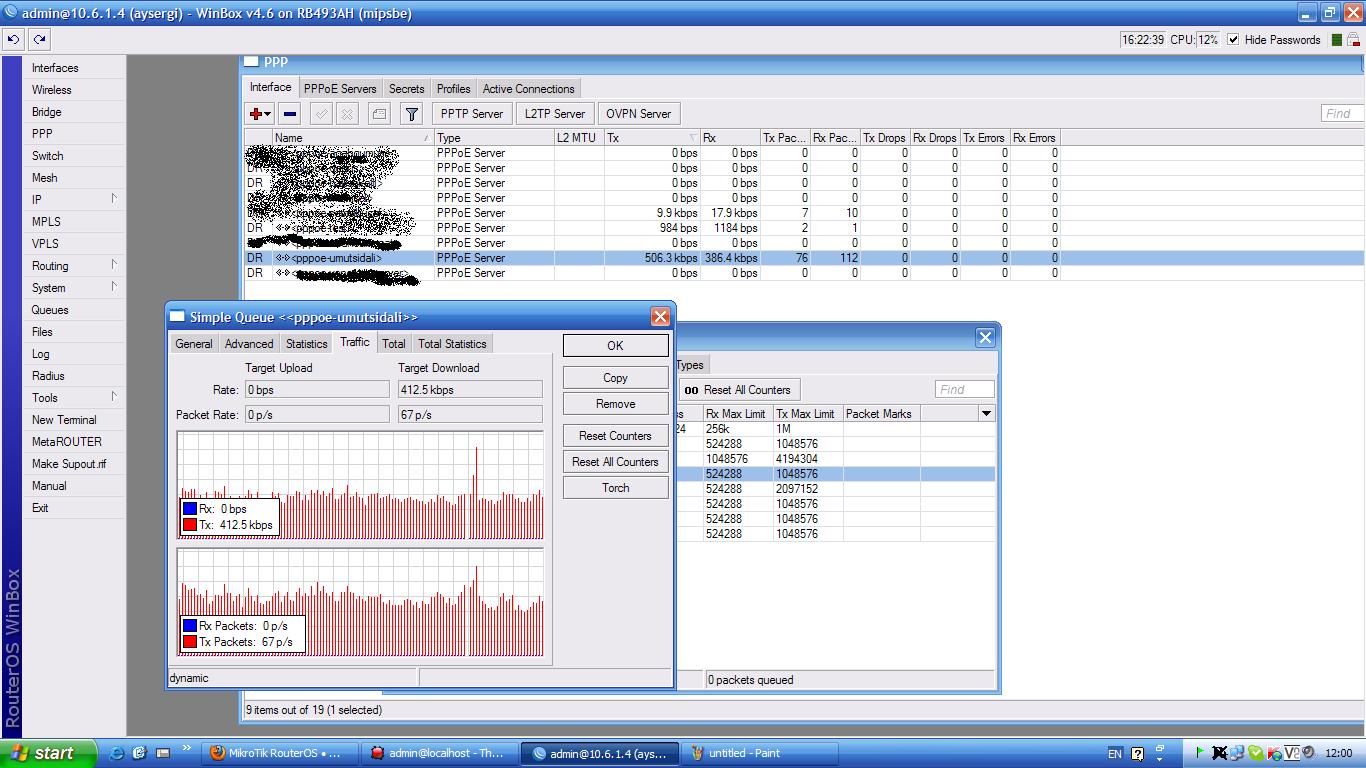

I have 3 Airmax rockets connected to a RB493AH ethernet side. All 3 ports are bridged and PPPoE server is set up on the bridge interface. Use IP Firewall is checked on the bridge interface. See the picture.
As you can see, in the traffic window of queues, no upload traffic is seen although there is traffic for that pppoe interface.
I need help because users can now use unlimited upload.
anyone on this one ? No one knows ?
What you dont see ? I see your upload trafic … it is RX traffic … It is normal that is lower than download …
Look at the queue traffic window. It doesnt see that there is traffic for that PPPoE interface although there actually is as you can see from PPPoE Interface menu.
So queue doesnt limit the pppoe interface making all my users to use unlimited upload.
Look at the picture I have uploaded
Im really trying to sort this one out, Dynamic queue Target Upload doesnt see any traffic. Normis ?
it’s strange
i waiting to see answer u will have
is there any rule on queue tree?
M.
/queue export
try to torch your interface
trying to find the pppoe user make this traffic and find if u set limit for this user
Is there any solution for that bug?
http://youtu.be/SE_dR9cZk7A
http://www.youtube.com/watch?v=SE_dR9cZk7A
In your case TX is your upload traffic (traffic that goes out from pppoe interface) and RX is your download (traffic that incoming to pppoe interface), try to understand this.
Sorry, my English is not good.
Try to understand this – dynamically generated query do not detect no download traffic at all!
As you can visibly understand from attached video, on interface PPOE-serg we have some traffic about 10 megabits per second, for now doesn’t matter download or upload, and we do not see this kind of traffic in dynamically generated query PPOE-serg, neither download or upload.
Tx is the traffic that is transmitted from RB493AH to the clients - from a client view of point its download traffic of clients
Rx is the traffic that is received from clients - upload from clients
doush pls export u’r simple queue and bridge setting
do u use Queue Types??
As you can visibly understand from attached video, on interface PPOE-serg we have some traffic about 10 megabits per second, for now doesn’t matter download or upload, and we do not see this kind of traffic in dynamically generated query PPOE-serg, neither download or upload.
Yes, you’re right. The bug have place to be. But I prefer queue tree instead simple/dynamic queue.
Can you show yours PPP profile ?
/ppp profile print
