I bought an R2SHPn card to use with my 411 routerboard believing that its a 32dbm card
I was surprised to find out that its only a 26dbm card
32dbm i supposed to run at mimox1
What do you mean by mimo 1x1 ,is this a real thing?Do you mean Buy another card and go to x2 or x3 with a 433 routerboard?
If you under frequency mode select “manual tx power” and then “no country set” then you should achieve maximum TX power,
and see under advanced menu Current TX power will show you current
also these wireless card have only on Chain.

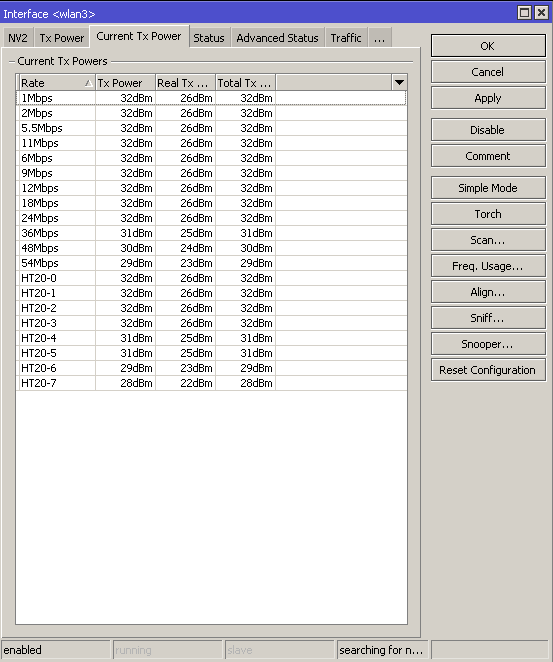

“Real TX” means the setting that the EEPROM chip sees. Total is the final power including the offset and amplification. The last column is what you need to look at. We will fix the inteface so this is more clear.
Thats exactly how i operate it no country manual 32dbm
Working with a 15dbi omni just barely pulling 1.5 km in in plain site 300m obstructed
What is the client radio?
At that power level and distance it isn’t unheard of for a laptop to work.
Anything with a better antenna than a laptop should be guaranteed at 1.5km.
1.5 in plain site with whatever i tried
Not a client problem too weak signal with everything
I ask this
Are these really 32dbm cards and i should get another one?
Or are they bullshiting us like many others?
Mine matches my 26dbm cards
