RB 1100AHX2 problem at boot

Hardware MikroTik hardware general
1

Sorry my english, I’m using google translate.

RB 1100AHX2 system manufactures and RouterBOOT booter 2:38 RouterOS 5.8
In an attempt to downgrade to version 4.17 RB no longer starts.

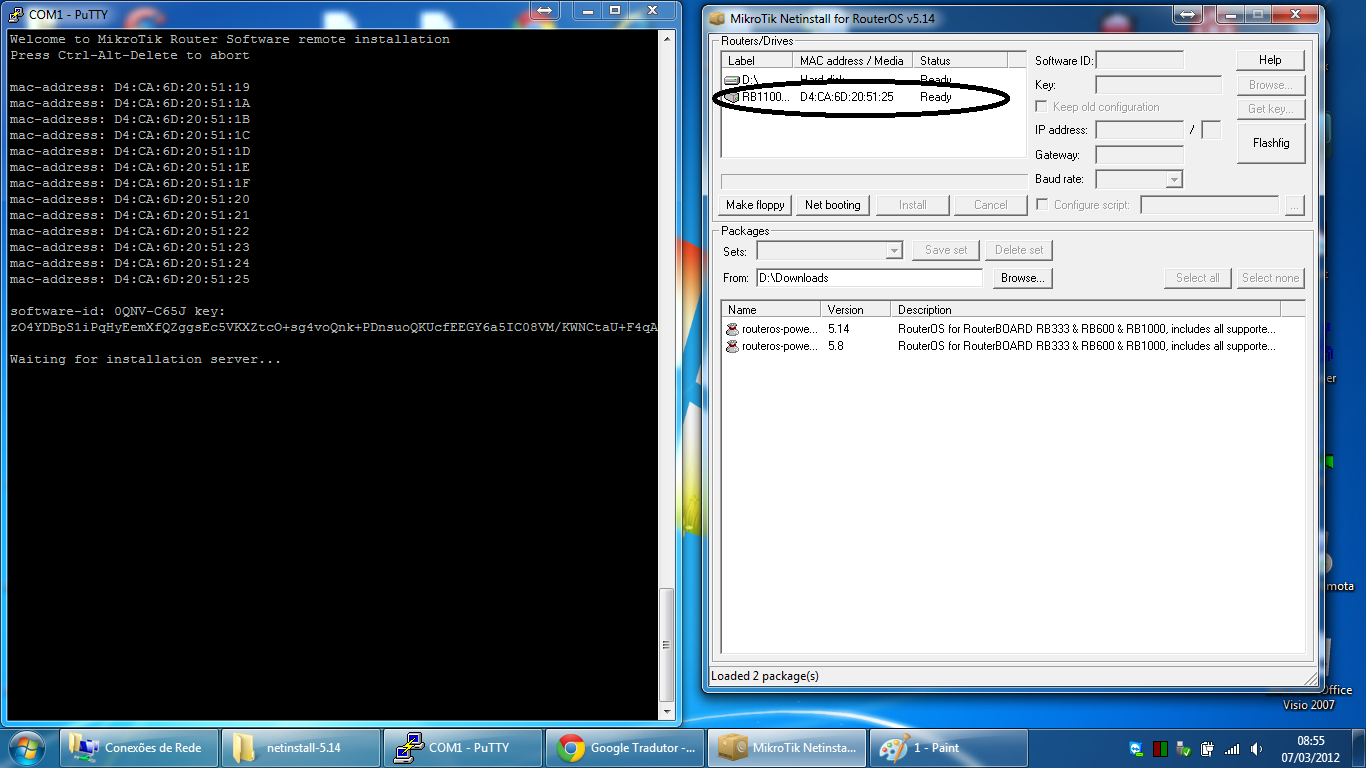

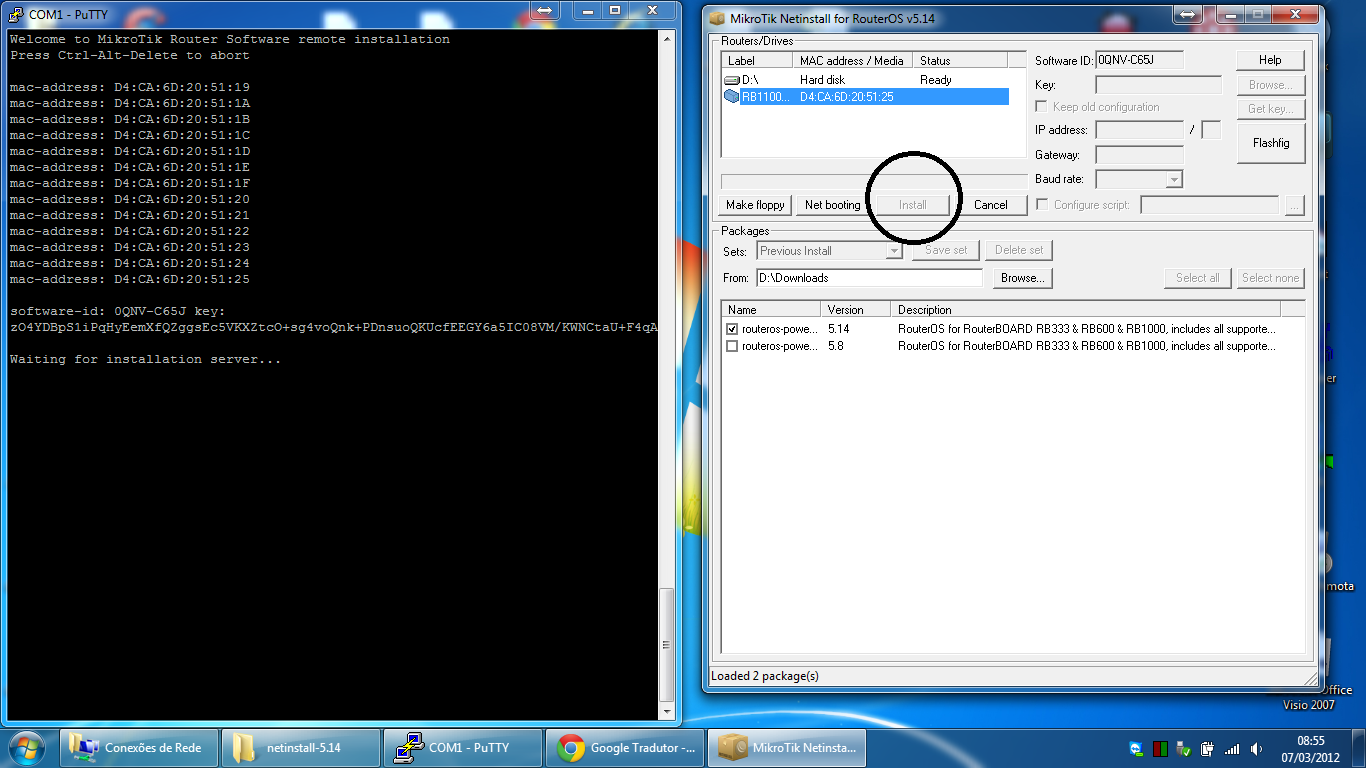

I tried to install from the netinstall versions 4.17, 5.8, 5.14 without success.
Upgrade to 2:39 Booter without success.

RouterBOOT booter 2.39

RouterBoard 1100AHx2

CPU frequency: 1066 MHz
Memory size: 2048 MB

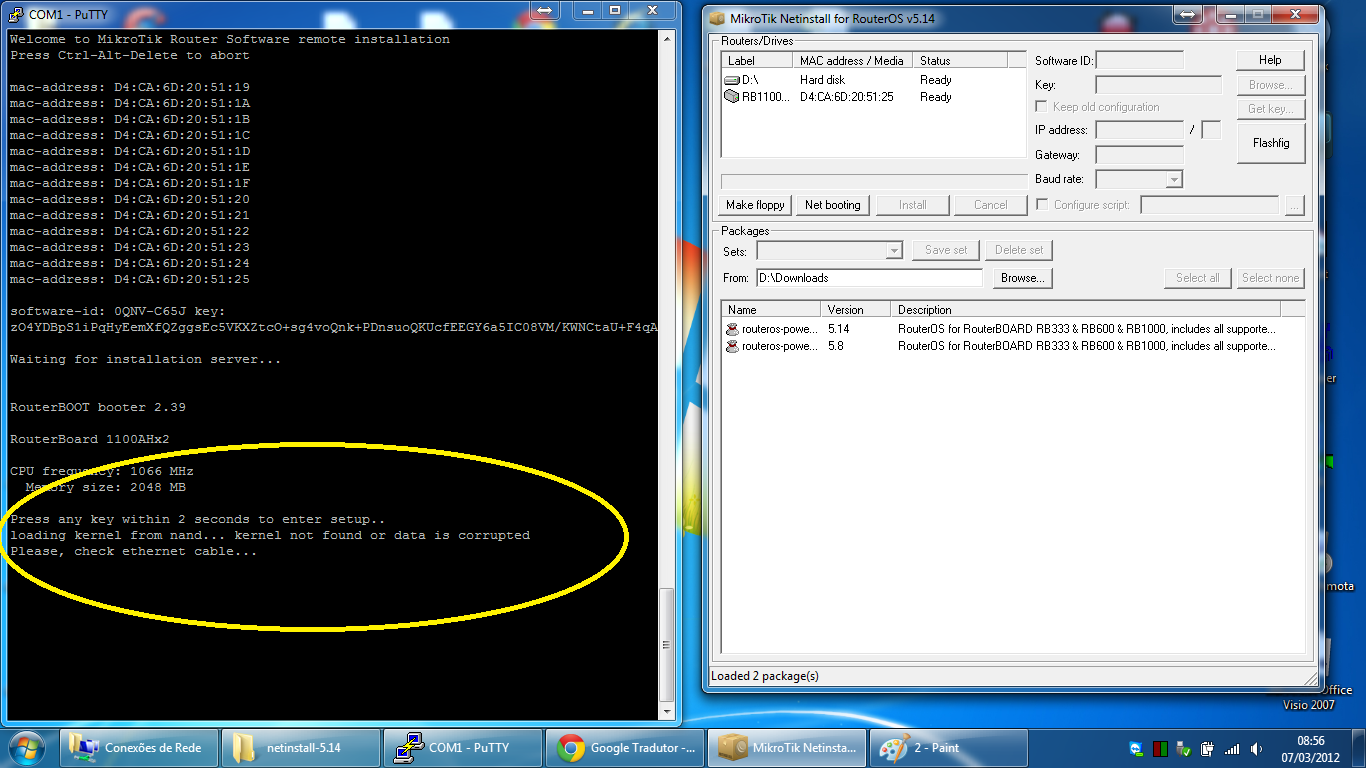

Press any key within 2 seconds to enter setup..
loading kernel from nand… OK
setting up elf image… not an elf header
kernel loading failed

any suggestions? thank you

2

follow instructions closely:
http://wiki.mikrotik.com/wiki/Netinstall

and install RotuerOS 5.14

3

This procedure has been done without success.

4

What step is unsuccessful? What error message are you getting?

5

Follow the step by step

6

Possible problem in nand? As tests nand?

7

I had same problem. I have tried to upgrade ROS version but router never starts. Then I tried to install new ROS using Netinstall. Some PC failed to install new ROS using Netinstall. For example: My Dell N5010 never works with MAC based applications. (MT neighbor veiwer, Winbox mac login, Netinstall etc). Maybe there is some problem with NIC card. It can discover MAC addresses but can not login or transfer files.

I used Thinkpad E100 for to use netinstall.

8

exactly the same problem

RouterBOOT 2.8

Roterboard RB1100AH

NAND formatted correctly
replacement of netinstall servers, network cards on servers, switches, does not help
What should I do? help me
Maybe it is possible to restore the chassis via a booting from microSD ?
