RB/2011UAS-2HnD-IN as AP and WLAN-Bridge at the same time?

RouterOS Wireless Networking
1

Dear all,

I try to configure the following scenario with a RB/2011UAS-2HnD-IN:

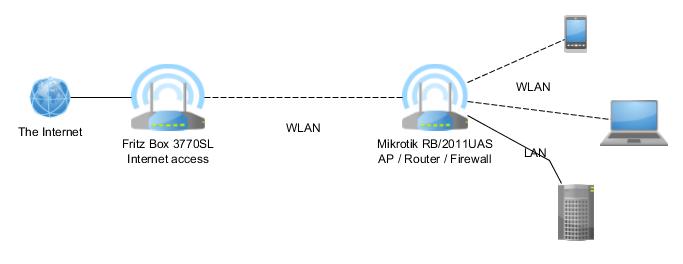

Internet ↔ FritzBox 3770SL ← WLAN → Mikrotik RB/2011UAS-2HnD-IN (as AP) ← WLAN and LAN devices
Is this scenario possible with only one RB/2011UAS? If so, can somebody point me to the right direction for configuration?

Thanks
Peter

2

If you want the routerboard connect with the fritzbox must you set the wireless interface as client.
You can’t the radio use as client and accesspoint.

3

You can use wds in your case. But you need mikrotik device on other side too. So you have four options:

  1. Use mikrotik instead fritzbox and wds connection.
  2. Use client for connecting to fritzbox and ap for further distribution.
  3. Use device with universal repeater capability instead mikrotik- e.g. ovislink 5460.
  4. Connect fritzbox and mikrotik by wire. This is the most reliable option.

Sent from Android by Tapatalk.

4

WDS between fritzbox and routerboard should not work

5

Of course not. I have written that.

Sent from Android by Tapatalk.

6

thank you all for the fast reply. I connected the Fritz box via wire, which works almost out of the box.

Cheers
Peter

7

That is the only right solution if you want a good performance.
