Dears
I am using RB1036 AS queues and RB1016 As PPPOE .I have issue with from 1036 to 1016 when i disable any mangel the bandwidth increase

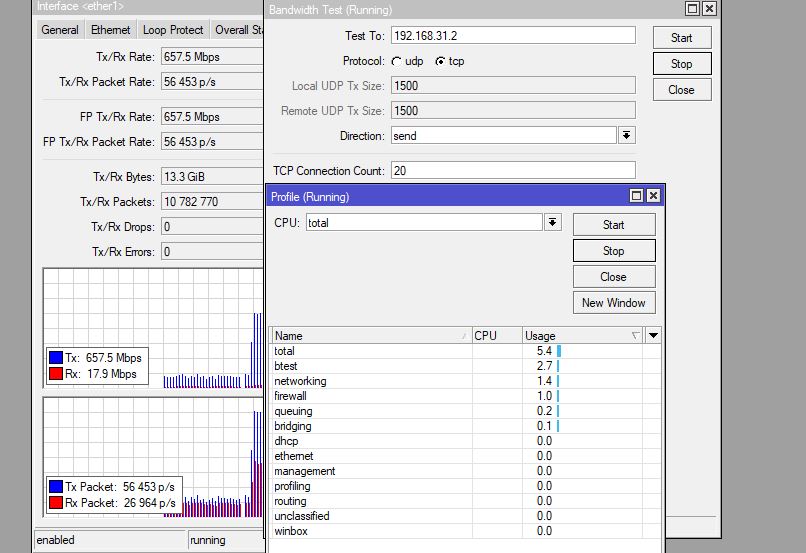

I Check with bandwidth test and all mangel disabled
Traffic about 700M

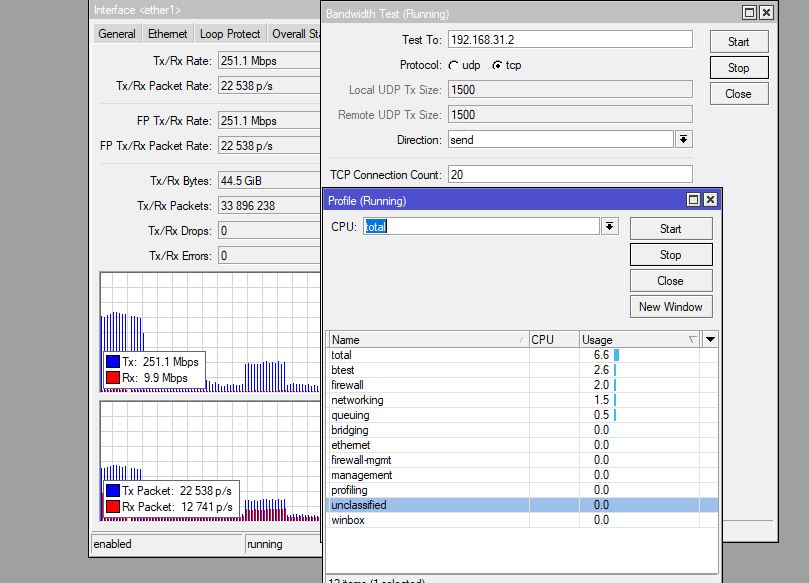

recheck but all the mangel enabled
Traffic about 250M
I try to update 1036 but still same thing and trying disabled all mangle and add new mangle the bandwidth drop form 700M to 600M
I am using , Chains (prerouting ,postrouting) and action (Accept ,Mark routing , Mark connection , Mark Packet)
I don’t know what’s the problem
Thanks
In the profiler, select “all” instead of “total”. It will show you load on individual cores.
Queuing on CCR is limited to single core / queue tree, so with above you’ll be able to check if that is your issue.
Dear Sebastia
My issue with traffic now with CPU ,
Any mangel add to 1036 the traffic on PPPOE RB.1016 decreased
Which mangle rules do you have in place? Please list your config
Dears
i am using , Chains (prerouting ,postrouting) and action (Accept ,Mark routing , Mark connection , Mark Packet)
0 ;;; Band.FNA
chain=forward action=mark-connection new-connection-mark=FNA.Band.Customer passthrough=yes src-address-list=FNA
dst-address-list=Band.Customer-Band log=no log-prefix=""
1 ;;; Band.Customer
chain=postrouting action=accept src-address-list=Share dst-address-list=Band.Customer-Band log=no log-prefix=""
2 ;;; Accs-Peeruser
chain=postrouting action=accept src-address-list=Privet dst-address-list=All-Pool log=no log-prefix=""
3 ;;; Band.FNA
chain=forward action=mark-packet new-packet-mark=Band.FNA passthrough=no src-address-list=FNA
dst-address-list=Band.Customer-Band connection-mark=FNA.Band.Customer log=no log-prefix=""
4 ;;; Band.GGC
chain=forward action=mark-packet new-packet-mark=Band.GGC passthrough=no src-address=X.X.X.X/25
dst-address-list=Band.Customer-Band log=no log-prefix=""
5 ;;; Band.Inter
chain=forward action=mark-packet new-packet-mark=Band.Inter passthrough=no dst-address-list=Band.Customer-Band log=no
log-prefix=""
6 ;;; P1-Xsite
chain=prerouting action=mark-routing new-routing-mark=Lo-Route passthrough=no src-address-list=P1
dst-address-list=Xsite log=no log-prefix=""
7 ;;; P2-Xsite
chain=prerouting action=mark-routing new-routing-mark=Lo-Route passthrough=no src-address-list=P2
dst-address-list=Xsite log=no log-prefix=""
8 ;;; P3-Xsite
chain=prerouting action=mark-routing new-routing-mark=Lo-Route passthrough=no src-address-list=P3
dst-address-list=Xsite log=no log-prefix=""
9 ;;; P1-Snap
chain=prerouting action=mark-routing new-routing-mark=Lo-Route passthrough=no src-address-list=P1
dst-address-list=Snapchat log=no log-prefix=""
10 ;;; P2-Snap
chain=prerouting action=mark-routing new-routing-mark=Lo-Route passthrough=no src-address-list=P2
dst-address-list=Snapchat log=no log-prefix=""
11 ;;; P3-Snap
chain=prerouting action=mark-routing new-routing-mark=Lo-Route passthrough=no src-address-list=P3
dst-address-list=Snapchat log=no log-prefix=""
12 ;;; P5-GGC
chain=prerouting action=mark-routing new-routing-mark=Lo-Route passthrough=no dst-address=185.69.7.0/25
src-address-list=P5 log=no log-prefix=""
39 ;;; Q-Cache
chain=postrouting action=mark-packet new-packet-mark=Cache.Q passthrough=no dst-address=172.17.2.2
src-address-list=!FNA&GGC log=no log-prefix=""
40 ;;; ICMP-Q
chain=postrouting action=mark-packet new-packet-mark=ICMP passthrough=no protocol=icmp
dst-address-list=All-Pool log=no log-prefix=""
41 ;;; DNS-Q
chain=postrouting action=mark-packet new-packet-mark=DNS passthrough=no protocol=udp dst-address-list=All-Pool
src-port=53 log=no log-prefix=""
42 ;;; Xsiter.Conn
chain=postrouting action=mark-connection new-connection-mark=Xsite.conn passthrough=yes src-address-list=Xsite
dst-address-list=All-Pool log=no log-prefix=""
43 ;;; Xsite.Q-P1
chain=postrouting action=mark-packet new-packet-mark=Xsite.Q-P1 passthrough=no src-address-list=Xsite
dst-address-list=P1 connection-mark=Xsite.conn log=no log-prefix=""
44 ;;; Xsite.Q-P2
chain=postrouting action=mark-packet new-packet-mark=Xsite.Q-P2 passthrough=no src-address-list=Xsite
dst-address-list=P2 connection-mark=Xsite.conn log=no log-prefix=""
45 ;;; Xsite.Q-P3
chain=postrouting action=mark-packet new-packet-mark=Xsite.Q-P3 passthrough=no src-address-list=Xsite
dst-address-list=P3 connection-mark=Xsite.conn log=no log-prefix=""
46 ;;; Xsite.Q-P4
chain=postrouting action=mark-packet new-packet-mark=Xsite.Q-P4 passthrough=no src-address-list=Xsite
dst-address-list=P4 connection-mark=Xsite.conn log=no log-prefix=""
47 ;;; Xsite.Q-P5
chain=postrouting action=mark-packet new-packet-mark=Xsite.Q-P5 passthrough=no src-address-list=Xsite
dst-address-list=P5 connection-mark=Xsite.conn log=no log-prefix=""
48 ;;; Xsite.Q-P6
chain=postrouting action=mark-packet new-packet-mark=Xsite.Q-P6 passthrough=no src-address-list=Xsite
dst-address-list=P6 connection-mark=Xsite.conn log=no log-prefix=""
49 ;;; Snapchat.Conn
chain=postrouting action=mark-connection new-connection-mark=Snap.conn passthrough=yes
src-address-list=Snapchat dst-address-list=All-Pool log=no log-prefix=""
50 ;;; SNAP-P1-Q
chain=postrouting action=mark-packet new-packet-mark=SnapC-P1 passthrough=no src-address-list=Snapchat
dst-address-list=P1 connection-mark=Snap.conn log=no log-prefix=""
51 ;;; SNAP-P2-Q
chain=postrouting action=mark-packet new-packet-mark=SnapC-P2 passthrough=no src-address-list=Snapchat
dst-address-list=P2 connection-mark=Snap.conn log=no log-prefix=""
52 ;;; SNAP-P3-Q
chain=postrouting action=mark-packet new-packet-mark=SnapC-P3 passthrough=no src-address-list=Snapchat
dst-address-list=P3 connection-mark=Snap.conn log=no log-prefix=""
53 ;;; SNAP-P4-Q
chain=postrouting action=mark-packet new-packet-mark=SnapC-P4 passthrough=no src-address-list=Snapchat
dst-address-list=P4 connection-mark=Snap.conn log=no log-prefix=""
54 ;;; SNAP-P5-Q
chain=postrouting action=mark-packet new-packet-mark=SnapC-P5 passthrough=no src-address-list=Snapchat
dst-address-list=P5 connection-mark=Snap.conn log=no log-prefix=""
55 ;;; SNAP-P6-Q
chain=postrouting action=mark-packet new-packet-mark=SnapC-P6 passthrough=no src-address-list=Snapchat
dst-address-list=P6 connection-mark=Snap.conn log=no log-prefix=""
56 ;;; Inter-FB.Q
chain=postrouting action=mark-connection new-connection-mark=INT-FB passthrough=yes src-address-list=INT-FB
dst-address-list=All-Pool log=no log-prefix=""
57 ;;; INT-FB-P1-Q
chain=postrouting action=mark-packet new-packet-mark=INT-FB-P1 passthrough=no src-address-list=INT-FB
dst-address-list=P1 connection-mark=INT-FB log=no log-prefix=""
58 ;;; INT-FB-P2-Q
chain=postrouting action=mark-packet new-packet-mark=INT-FB-P2 passthrough=no src-address-list=INT-FB
dst-address-list=P2 connection-mark=INT-FB log=no log-prefix=""
59 ;;; INT-FB-P3-Q
chain=postrouting action=mark-packet new-packet-mark=INT-FB-P3 passthrough=no src-address-list=INT-FB
dst-address-list=P3 connection-mark=INT-FB log=no log-prefix=""
60 ;;; INT-FB-P4-Q
chain=postrouting action=mark-packet new-packet-mark=INT-FB-P4 passthrough=no src-address-list=INT-FB
dst-address-list=P4 connection-mark=INT-FB log=no log-prefix=""
61 ;;; INT-FB-P5-Q
chain=postrouting action=mark-packet new-packet-mark=INT-FB-P5 passthrough=no src-address-list=INT-FB
dst-address-list=P5 connection-mark=INT-FB log=no log-prefix=""
62 ;;; INT-FB-P6-Q
chain=postrouting action=mark-packet new-packet-mark=INT-FB-P6 passthrough=no src-address-list=INT-FB
dst-address-list=P6 connection-mark=INT-FB log=no log-prefix=""
63 ;;; Inter-Q
chain=postrouting action=mark-connection new-connection-mark=Inter-Q passthrough=yes src-address-list=!FNA&GGC
dst-address-list=All-Pool log=no log-prefix=""
64 ;;; Inter-P1-Q
chain=postrouting action=mark-packet new-packet-mark=Inter-P1 passthrough=no src-address-list=!FNA&GGC
dst-address-list=P1 connection-mark=Inter-Q log=no log-prefix=""
65 ;;; Inter-P2-Q
chain=postrouting action=mark-packet new-packet-mark=Inter-P2 passthrough=no src-address-list=!FNA&GGC
dst-address-list=P2 connection-mark=Inter-Q log=no log-prefix=""
66 ;;; Inter-P3-Q
chain=postrouting action=mark-packet new-packet-mark=Inter-P3 passthrough=no src-address-list=!FNA&GGC
dst-address-list=P3 connection-mark=Inter-Q log=no log-prefix=""
67 ;;; Inter-P4-Q
chain=postrouting action=mark-packet new-packet-mark=Inter-P4 passthrough=no src-address-list=!FNA&GGC
dst-address-list=P4 connection-mark=Inter-Q log=no log-prefix=""
68 ;;; Inter-P5-Q
chain=postrouting action=mark-packet new-packet-mark=Inter-P5 passthrough=no src-address-list=!FNA&GGC
dst-address-list=P5 connection-mark=Inter-Q log=no log-prefix=""
69 ;;; Inter-P6-Q
chain=postrouting action=mark-packet new-packet-mark=Inter-P6 passthrough=no src-address-list=!FNA&GGC
dst-address-list=P6 connection-mark=Inter-Q log=no log-prefix=""
