RB2011UAS-2HnD-IN Gigabit switch throughput

Hardware MikroTik hardware general
1

Hi Guys,

Having an issue with my RB2011UAS-2HnD-IN and the gigabit switchports.

Running cable internet that works at 100Mbit, with my Netgear WNDR3700 i can speedtest at 116Mbps

If i plug the modem into the 100Mbit switch ports on the device i can get a speed test of 90 - 95Mbps (Expected)

If i plug the modem into the 1000Mbit switch, speedtest is restricted to approx 50Mbps.

Have tried doing this on a basic configuration with only Masquerade NAT Rule and DHCP Client configured to test and the same results happen.

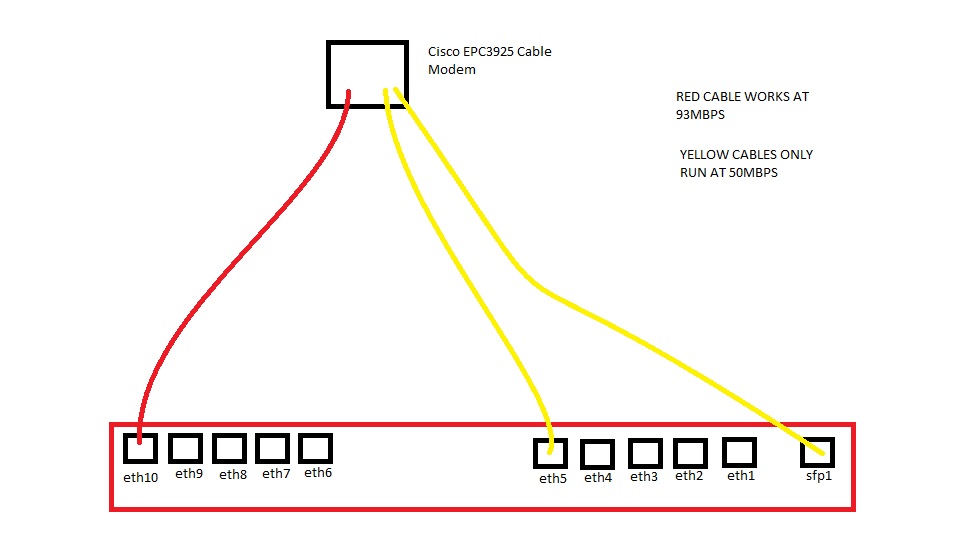

Basic diagram attached - Appologies Visio is currently not installed

Any Ideas why the Gigabit ports are not running at the full 116Mbit?

Thanks
Daniel

2

That sounds like a duplex mismatch between your modem and the gigabit ports on the 2011.

There are a couple of threads on the forum related to BT supplied VDSL modems.

It seems that the autonegotiation fails to work correctly and the port gets set to half duplex.

Have a look at the interface status tab

Nick.

3

Hi Nick,

There does seem to be an issue with Auto Negotiation see below screenshot.

Have tried disabling auto negotiation and forcing Full Duplex but it doesn’t seem to fix

Cheers
Dan

4

Problem is that Gigabit requires auto-neg so you can’t force it.

You need to email support@mikrotik.com with the details, hopefully they will fix this problem.

Nick

5

sfp port its normal don’t display status…i use it too and said autoneg - done ,rate unknow…

you set differents bridge for port1 and port5 ?

if not its possible you get a loop !!! or maybe not if u configured dhcp-client. this modem have 4 port for LAN switch, not 4 wan port…

i use 2 docsis3 modem,

1x sb6120 100/50 port sfp bridge1 port gbether1-5
1x SB5120 30/10 port10 bridge2 on eth6-9.

and wifi have 2 vAP for this bridges.

6

The modem does indeed have 4 WAN ports if you place it in Bridge mode,

Ill plug it back into Eth1 tonight and check if the autoneg says unknwon there

7

There is nothing in my config that would be a risk exposing, so heres a copy of my config! Critique away!
backup.txt (21.6 KB)

8

Fixed!

As specialist posted above, seemed to be an issue with my Bridges, creating a new one and assigning Ether5 and Wlan1 over to it seems to have fixed the issue.

Thanks Guys!

Dan

9

Just an update -recreating the bridge fixed for all of 20 minutes and it relapsed.

Any other ideas?
