RB3011UiAS can't connect from itself to internet

RouterOS General
1

Hi,

I'm using this kind a router to connect my network to the internet. So far so good.

But I can't perform a package update, cause the router won't connect to the internet itself.

May be it's just a struggle with the NAT rules or similar with the firewall rules, but I can't believe this.

I have to admit, that any manual package update do not work, either providing an arm64 (the router isn't) or an arm32 only, the router won't access the packge at all.

Hence I'm a bit lost in getting the correct package and will make use of the direct connecttion to upgrade my packages.

If there is any other topic to consult, please advice. I couldn't find any so far.

Thanks for any hint,

Michael

2

If they were asking you the same thing,
wouldn't you at least tell them what version the router is currently running?
How much free space is there inside /files?
Which file was used?
What's written in the logs after copying the file and rebooting?

Ask us for hints, but you're actually the one who has to provide them.

3

Currently it's the version 7.18 and I'd like to update on 7.25.3.

Currently 44MB of 128MP occupied.

I used follwing files: routeros-7.23.5-arm.npk and routeros-7.23.5-arm64.npk

The logfiles tell me somthing about a missing wireless package, but I can't find such an package.

4

As you can see on this page you should use the arm and not arm64.
https://mikrotik.com/product/RB3011UiAS-RM

And if you are little handy do your self a favor and use the netinstall to install the RouterOS from scratch.

And on the product page you also see that the version that is stable and recommended from Mikrotik is:
https://download.mikrotik.com/routeros/7.24.2/routeros-7.24.2-arm.npk

And start easy and start also from the default setup.

5

"AND"?
NOT!

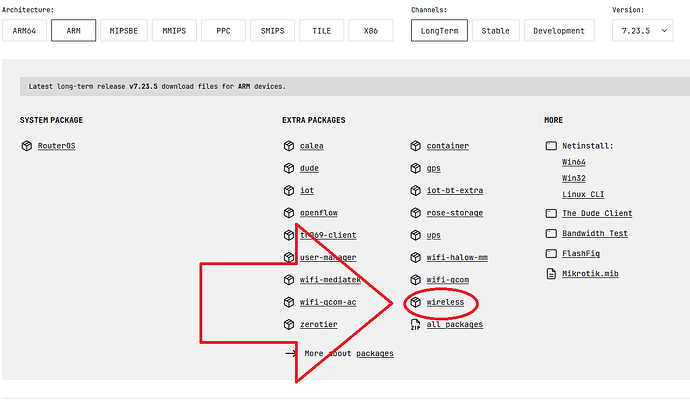

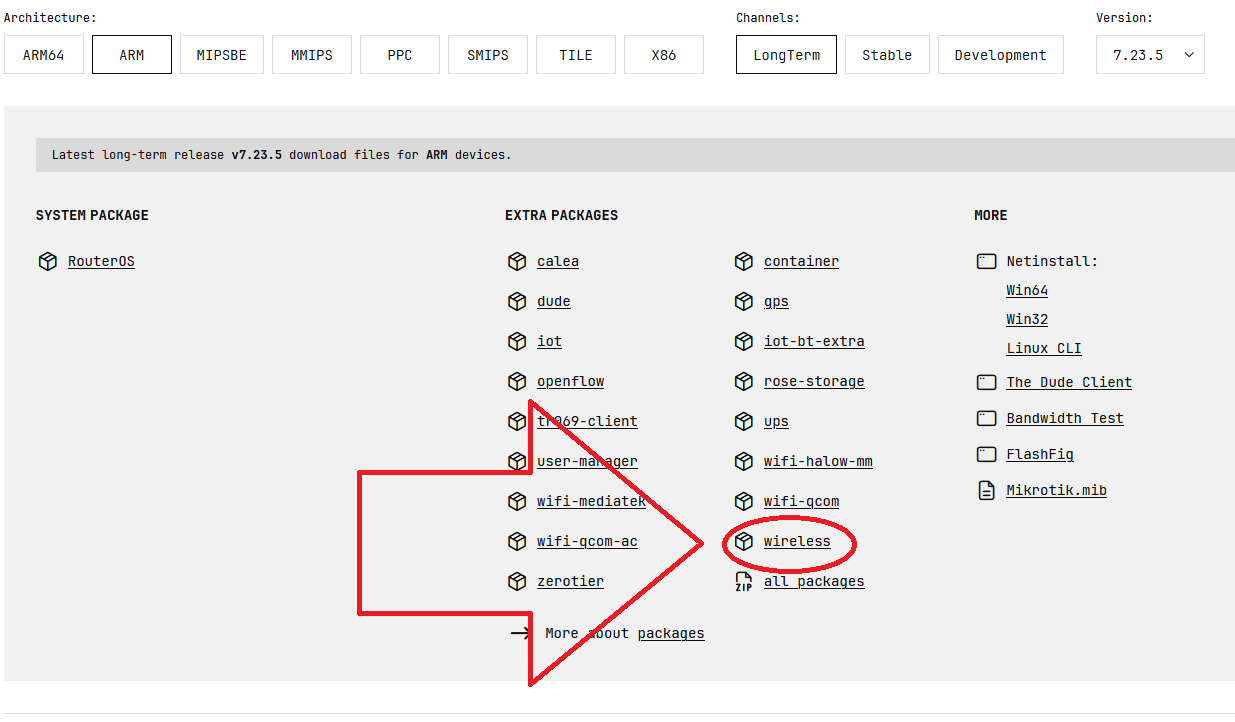

only one, and only "arm"-only

immagine
immagine1235×722 43.3 KB

6

Oops, I found the package meanwhile and applied it. The router has now 7.25.3. Blame myself....:lying_face:

But the internet connection directly from the router isn't working, which was my initial intend to raise the ticket.

7

Don't waste people's time (about ticket), untill you are sure that is not your fault.
You probably haven't set up your DNS server or you've set a rule that blocks the router itself.
Does on inside router "tool/ping" pinging 1.1.1.1 work? And typing one.one.one.one directly?

8

I tried a ping on various internet hosts but none of them worked.

Sorry for wasting your time.

9

You don't understand. I didn't say you were wasting my (our) time, but don't contact support until you are sure that is one bug.
First, let's see if there's a configuration error in the router...
If the devices connected to the router work, but the router itself doesn't, maybe there's something misconfigured, rather than a bug...

So logic dictates...

10

Does on inside router "tool/ping" pinging 1.1.1.1 work? And typing one.one.one.one directly?

I asked these two specifically, since with "various internet hosts" I don't know what you tried to ping.

11

Take a backup of your config, there are lots of threads about how to do that.
And then reset the router to it's default settings, and start from there.

Or do like everyone does in this forum, they share there config without any secrets.

Do a /export file=filename from the terminal and get the file and edit the file, and then paste the content into this forum, between the code tags characters

/export file=anynameyouwish (minus router serial number, any public WANIP information, keys, dhcp lease lists)
12

My config with my firewall rules is exceeding the maximum entries here. I first have to shorten my firewall list before I can provide a config.

And try to ping either google on its two ip addresses and some other webpage I can access with my PC.

13

If your firewall list is that long, its probably bloated and in need of TLC. I have a big carving knife.
/export file=anynameyouwish (minus router serial number, any public WANIP information,keys, dhcp lease lists.
export, open in notepadd++ then make any needed mods as per above. then post the file.

14

I still can't provide my config. Its about 80000 line but 32... are only allowed.

# 2026-09-04 17:09:29 by RouterOS 7.23.5
# software id = UCYE-VK1K
#
# model = RB3011UiAS
# serial number = E7E60FD836A5
/interface bridge
add admin-mac=DC:2C:6E:9A:55:0D auto-mac=no comment=defconf name=bridge \
    port-cost-mode=short
add name=bridge-vlan vlan-filtering=yes
/interface ethernet
set [ find default-name=ether10 ] disabled=yes name=DMZ
set [ find default-name=ether1 ] mtu=1504 name=Stadtwerke
/interface vxlan
add dont-fragment=disabled mac-address=92:9A:FF:D2:E6:E8 name=vxlan1 vni=1
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
/interface lte apn
set [ find default=yes ] ip-type=ipv4 use-network-apn=no
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip smb users
set [ find default=yes ] disabled=yes
/system logging action
add disk-file-name=logg name=logfiless target=disk
/interface bridge port
add bridge=bridge comment=defconf ingress-filtering=no interface=ether2 \
    internal-path-cost=10 path-cost=10
add bridge=bridge comment=defconf ingress-filtering=no interface=ether3 \
    internal-path-cost=10 path-cost=10
add bridge=bridge comment=defconf ingress-filtering=no interface=ether4 \
    internal-path-cost=10 path-cost=10
add bridge=bridge comment=defconf ingress-filtering=no interface=ether5 \
    internal-path-cost=10 path-cost=10
add bridge=bridge comment=defconf ingress-filtering=no interface=ether6 \
    internal-path-cost=10 path-cost=10
add bridge=bridge comment=defconf ingress-filtering=no interface=ether7 \
    internal-path-cost=10 path-cost=10
add bridge=bridge comment=defconf ingress-filtering=no interface=ether8 \
    internal-path-cost=10 path-cost=10
add bridge=bridge comment=defconf ingress-filtering=no interface=ether9 \
    internal-path-cost=10 path-cost=10
add bridge=bridge comment=defconf disabled=yes ingress-filtering=no \
    interface=DMZ internal-path-cost=10 path-cost=10
add bridge=bridge comment=defconf ingress-filtering=no interface=sfp1 \
    internal-path-cost=10 path-cost=10
/ip firewall connection tracking
set udp-timeout=10s
/ip neighbor discovery-settings
set discover-interface-list=LAN
/ip settings
set max-neighbor-entries=8192
/ipv6 settings
set disable-ipv6=yes max-neighbor-entries=8192 soft-max-neighbor-entries=8191
/interface detect-internet
set internet-interface-list=WAN wan-interface-list=WAN
/interface list member
add comment=defconf interface=bridge list=LAN
add comment=defconf interface=Stadtwerke list=WAN
/interface ovpn-server server
add auth=sha1,md5 mac-address=FE:6B:20:D3:81:6C name=ovpn-server1
/ip address
add address=192.168.0.253/24 comment=defconf interface=bridge network=\
    192.168.0.0
add address=91.136.133.54/24 interface=Stadtwerke network=91.136.133.0
/ip dhcp-client
add comment=defconf disabled=yes interface=Stadtwerke name=client1
/ip dhcp-server
add address-pool=*1 disabled=yes interface=bridge lease-time=10m name=defconf
/ip dns
set allow-remote-requests=yes servers=9.9.9.9,1.1.1.1,192.168.0.78
/ip dns static
add address=192.168.0.253 comment=defconf name=router.lan type=A
/ip firewall filter
add action=accept chain=forward out-interface=Stadtwerke src-address=\
    192.168.0.253
add action=drop chain=input comment="Adresslist Blacklists" in-interface=\
    Stadtwerke log-prefix=Blacklist___ protocol=tcp src-address-list=\
    black-list
add action=drop chain=input comment="Adresslist Blacklists" in-interface=\
    Stadtwerke log-prefix=Blacklist___ protocol=tcp src-address-list=\
    blacklist
add action=drop chain=input comment="Adresslist Blacklists" in-interface=\
    Stadtwerke log-prefix=Blacklist___ protocol=tcp src-address-list=\
    digitalocean
add action=accept chain=input comment=\
    "accept established and related from the router itself" connection-state=\
    established,related in-interface=!Stadtwerke
add action=accept chain=input comment=\
    "defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
add action=drop chain=input comment="drop icmp" disabled=yes protocol=icmp
add action=drop chain=input in-interface=Stadtwerke src-address-list=\
    Hurricane
add action=drop chain=input in-interface=Stadtwerke protocol=tcp \
    src-address-list=OHV
add action=drop chain=input in-interface=Stadtwerke protocol=tcp \
    src-address-list=M247
add action=drop chain=input in-interface=Stadtwerke protocol=tcp \
    src-address-list=leaseweb
add action=drop chain=input in-interface=Stadtwerke protocol=tcp \
    src-address-list=Linode
add action=drop chain=input disabled=yes in-interface=Stadtwerke protocol=tcp \
    src-address-list=CountryIPBlocks
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
    invalid
add action=drop chain=input comment="anti Ping Flood" in-interface=Stadtwerke \
    limit=2,2:packet protocol=icmp
add action=drop chain=input comment="defconf: drop all not coming from LAN" \
    in-interface-list=!LAN log-prefix=!LAN_
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" \
    connection-state=established,related
add action=accept chain=forward comment="defconf: accept in ipsec policy" \
    ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" \
    ipsec-policy=out,ipsec
add action=accept chain=forward comment="Alllowed Adresslist" in-interface=\
    Stadtwerke log=yes log-prefix=allowed_blacklist_foward_ src-address-list=\
    allowed_blacklist
add action=accept chain=forward comment=\
    "defconf: accept established,related, untracked" connection-state=\
    established,related
add action=drop chain=forward comment="Adresslist Blacklist" in-interface=\
    Stadtwerke log-prefix=Blacklist___forward protocol=tcp src-address-list=\
    black-list
add action=drop chain=forward comment="Adresslist Blacklist" in-interface=\
    Stadtwerke log-prefix=Blacklist___forward protocol=tcp src-address-list=\
    blacklist
add action=drop chain=forward comment="Adresslist Blacklist" in-interface=\
    Stadtwerke log-prefix=Blacklist___forward protocol=tcp src-address-list=\
    digitalocean
add action=drop chain=forward in-interface=Stadtwerke protocol=tcp \
    src-address-list=Linode
add action=drop chain=forward in-interface=Stadtwerke protocol=tcp \
    src-address-list=leaseweb
add action=drop chain=forward disabled=yes in-interface=Stadtwerke protocol=\
    tcp src-address-list=M247
add action=drop chain=forward comment=CountryBlocks in-interface=Stadtwerke \
    log-prefix=Country_FORWARD_ src-address-list=CountryIPBlocks
add action=drop chain=forward comment="defconf: drop invalid" \
    connection-state=invalid
add action=drop chain=forward disabled=yes dst-address=192.168.0.78 \
    in-interface=Stadtwerke
add action=accept chain=forward comment="Proxy 113" disabled=yes log=yes \
    protocol=tcp src-address=192.168.0.113
add action=drop chain=forward comment="Windows 7 (118)" log-prefix=113_gen_ \
    src-address=192.168.0.118
add action=drop chain=forward comment=\
    "Drop all traffic from this virtual machine Win10 (114)" log-prefix=114_ \
    src-address=192.168.0.114
add action=drop chain=forward comment=\
    "Drop all traffic from this virtual machine Win10 (116)" \
    dst-address-list=!windows_update log-prefix=116_WInUpdate_ src-address=\
    192.168.0.116
add action=drop chain=forward comment=\
    "Drop all traffic from this virtual machine (113)" log-prefix=\
    116_WInUpdate_ src-address=192.168.0.113
add action=drop chain=forward comment=\
    "Drop all traffic from virtual machine (94)" src-address=192.168.0.94
add action=drop chain=forward comment=XP src-address=192.168.0.11
add action=drop chain=forward comment=saveDB dst-address-list=!windows_update \
    log=yes log-prefix=64_ src-address=192.168.0.64
add action=accept chain=output comment="UDP Connect towards ptbtime1.ptb.de" \
    dst-address-list="NTP List" dst-port=123 log-prefix=\
    "UDP Out to ptbtime1.ptb.de" protocol=udp
add action=drop chain=output comment="WIN98 VM" dst-address-list=\
    windows_update src-address=192.168.0.111
add action=drop chain=output comment=Emotet dst-port=449 log=yes log-prefix=\
    Emotet_ protocol=tcp
add action=accept chain=output comment="DNS TCP" disabled=yes dst-port=53 \
    protocol=tcp
add action=accept chain=output comment="DNS UDP" disabled=yes dst-port=53 \
    protocol=udp
add action=accept chain=output comment="Router Output" disabled=yes protocol=\
    tcp src-address=192.168.0.253
add action=accept chain=output comment="Router Output" disabled=yes protocol=\
    icmp src-address=192.168.0.253
add action=passthrough chain=forward disabled=yes
/ip firewall nat
add action=masquerade chain=srcnat comment="defconf: masquerade" \
    ipsec-policy=out,none out-interface=Stadtwerke packet-mark=""
add action=dst-nat chain=dstnat comment="Dovecot access on server" dst-port=\
    993 in-interface=Stadtwerke log=yes log-prefix=993_ protocol=tcp \
    to-addresses=192.168.0.78 to-ports=993
add action=dst-nat chain=dstnat comment="smtps on mailserver" dst-port=587 \
    in-interface=Stadtwerke log=yes log-prefix=587_ protocol=tcp \
    to-addresses=192.168.0.78
add action=dst-nat chain=dstnat comment="stmp port on muskatnuss" dst-port=25 \
    in-interface=Stadtwerke log=yes log-prefix=25_ protocol=tcp to-addresses=\
    192.168.0.78 to-ports=25
add action=dst-nat chain=dstnat comment="letsencrypt update" dst-port=80 \
    in-interface=Stadtwerke log=yes log-prefix=NAT_80_ protocol=tcp \
    to-addresses=192.168.0.78 to-ports=80
add action=dst-nat chain=dstnat comment="https webserver " dst-port=443 \
    in-interface=Stadtwerke log=yes log-prefix=HTTPS_ protocol=tcp src-port=\
    "" to-addresses=192.168.0.78 to-ports=443
add action=dst-nat chain=dstnat comment="HG1500 UDP SIP Traffic" disabled=yes \
    dst-port=5060 in-interface=Stadtwerke protocol=udp to-addresses=\
    192.168.0.79 to-ports=5060
add action=dst-nat chain=dstnat comment="SSH Port" dst-port=18729 \
    in-interface=Stadtwerke log=yes protocol=tcp to-addresses=192.168.0.78 \
    to-ports=22
add action=dst-nat chain=dstnat disabled=yes protocol=udp to-addresses=\
    192.168.10.1 to-ports=14856
add action=src-nat chain=srcnat disabled=yes in-interface=Stadtwerke \
    protocol=tcp to-addresses=0.0.0.0
add action=accept chain=dstnat disabled=yes dst-port=18730 log=yes \
    log-prefix=Wiregurd_ protocol=udp
/ip firewall raw
add action=accept chain=prerouting disabled=yes dst-address-list=\
    allowed_blacklist
add action=drop chain=prerouting disabled=yes dst-address=192.168.0.78 \
    dst-port=80 protocol=tcp
add action=drop chain=prerouting disabled=yes src-address-list=\
    CountryIPBlocks
/ip ipsec profile
set [ find default=yes ] dpd-interval=2m dpd-maximum-failures=5
/ip route
add disabled=no dst-address=0.0.0.0/0 gateway=91.136.133.53
/ip service
set www disabled=yes
set www-ssl certificate=Webfig
/ipv6 address
add address=::ffff:192.168.0.253 interface=ether2
/ipv6 firewall address-list
add address=::/128 comment="defconf: unspecified address" list=bad_ipv6
add address=::1/128 comment="defconf: lo" list=bad_ipv6
add address=fec0::/10 comment="defconf: site-local" list=bad_ipv6
add address=::ffff:0.0.0.0/96 comment="defconf: ipv4-mapped" list=bad_ipv6
add address=::/96 comment="defconf: ipv4 compat" list=bad_ipv6
add address=100::/64 comment="defconf: discard only " list=bad_ipv6
add address=2001:db8::/32 comment="defconf: documentation" list=bad_ipv6
add address=2001:10::/28 comment="defconf: ORCHID" list=bad_ipv6
add address=3ffe::/16 comment="defconf: 6bone" list=bad_ipv6
/ipv6 firewall filter
add action=accept chain=input comment=\
    "defconf: accept established,related,untracked" connection-state=\
    established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
    invalid
add action=accept chain=input comment="defconf: accept UDP traceroute" \
    dst-port=33434-33534 protocol=udp
add action=accept chain=input comment=\
    "defconf: accept DHCPv6-Client prefix delegation." dst-port=546 protocol=\
    udp src-address=fe80::/10
add action=accept chain=input comment="defconf: accept IKE" dst-port=500,4500 \
    protocol=udp
add action=accept chain=input comment="defconf: accept ipsec AH" protocol=\
    ipsec-ah
add action=accept chain=input comment="defconf: accept ipsec ESP" protocol=\
    ipsec-esp
add action=accept chain=input comment=\
    "defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=input comment=\
    "defconf: drop everything else not coming from LAN" in-interface-list=\
    !LAN
add action=accept chain=forward comment=\
    "defconf: accept established,related,untracked" connection-state=\
    established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" \
    connection-state=invalid
add action=drop chain=forward comment=\
    "defconf: drop packets with bad src ipv6" src-address-list=bad_ipv6
add action=drop chain=forward comment=\
    "defconf: drop packets with bad dst ipv6" dst-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: rfc4890 drop hop-limit=1" \
    hop-limit=equal:1 protocol=icmpv6
add action=accept chain=forward comment="defconf: accept ICMPv6" protocol=\
    icmpv6
add action=accept chain=forward comment="defconf: accept HIP" protocol=139
add action=accept chain=forward comment="defconf: accept IKE" dst-port=\
    500,4500 protocol=udp
add action=accept chain=forward comment="defconf: accept ipsec AH" protocol=\
    ipsec-ah
add action=accept chain=forward comment="defconf: accept ipsec ESP" protocol=\
    ipsec-esp
add action=accept chain=forward comment=\
    "defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=forward comment=\
    "defconf: drop everything else not coming from LAN" in-interface-list=\
    !LAN
/ipv6 nd
# automatic dns option advertising is not started, re-apply dns config
set [ find default=yes ] advertise-dns=yes
/lcd
set backlight-timeout=15m default-screen=stats-all
/routing bfd configuration
add disabled=no
/system clock
set time-zone-name=Europe/Berlin
/system identity
set name=gateway002
/system ntp client
set enabled=yes
/system ntp client servers
add address=192.53.103.108
add address=192.53.103.104
/system package update
set channel=long-term
/system routerboard reset-button
set enabled=yes
/system scheduler
add interval=5d1m30s name=Emailbackup on-event=backup policy=\
    ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon \
    start-date=2022-02-26 start-time=05:46:00
add comment="2026-09-02 16:01:46" interval=1d30s name="Log gateway002" \
    on-event=droplog policy=\
    ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon \
    start-date=2022-02-26 start-time=05:48:10
add interval=1d3m name=LogAlert on-event=LogAlert policy=\
    ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon \
    start-date=2022-02-26 start-time=07:46:45
add disabled=yes interval=1d4m name="addres list RU" on-event="/tool fetch url\
    =http://www.iwik.org/ipcountry/mikrotik/RU\
    \n/import file-name=RU" policy=\
    ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon \
    start-date=2022-02-26 start-time=07:47:15
add disabled=yes interval=1d4m30s name="adress list CN" on-event=\
    "http://www.iwik.org/ipcountry/mikrotik/CN\r\
    \n/import file-name=CN" policy=\
    ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon \
    start-date=2022-02-26 start-time=07:48:03
add comment="2025-12-08 14:54:15" interval=1d1h name=droplog on-event=droplog \
    policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon \
    start-date=2022-02-26 start-time=10:50:30
add disabled=yes interval=1w23h55m name="ROUTERBAORD UPGRADE" on-event=":globa\
    l Var1\r\
    \n:global Var2\r\
    \n:set Var1 \"\$[/system package get system version]\"\r\
    \n:set Var2 \"\$[/system routerboard get current-firmware]\"\r\
    \n:if (\$Var1>\$Var2) do={/system routerboard upgrade; /system reboot;}" \
    policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon \
    start-date=2022-02-26 start-time=14:00:00
add disabled=yes interval=1w23h55m name="system package upgrade" on-event=\
    "system package/upgrade install" policy=\
    ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon \
    start-date=2022-02-26 start-time=14:30:00
/tool e-mail
set certificate-verification=no from=gateway001@broesecke.eu port=587 server=\
    192.168.0.78 tls=starttls user=petereit
/tool mac-server
set allowed-interface-list=LAN
/tool mac-server mac-winbox
set allowed-interface-list=LAN
/tool traffic-monitor
add interface=Stadtwerke name=In_Stadtwerke threshold=10 traffic=received
add interface=bridge name=tmon1
15

I've got it. Killed firewall and scripts.

16

Btw: I defined a new firewall rule to trace any icmp protocol. But the ping from my router isn't logged at all.

17

No idea until we clean up the mess. Its too difficult to see the rose with so many weeds.

18

The secondary brige is for upcoming tests only. IPv6 isn't used currently, but I'm will do some experiments with it in the future, since my provider will switch over to IPv6.

I wasn't aware this entry in my dhcp server (not necessary, cause I have WAN side a static IP) --> removed

I have no experience with raw rules in regards to my firewall. Since I have to support a mail server and webserver I have to make use of various firewall rules.

If this is much more easier with raw rules, I might have to learn how to use them.

But do you think think this is the issue why I can't connect to the internet directly from my router?

19

Why not simply start from default ?
It is a perfectly working config.

And I believe it already has been suggested ...

20

Running your own mail server and webserver these days is going to attract bots and abuse. AKA a losing battle from my perspective.
What is that you want to share or do?
I would first ask is this for friends/family and if so, then three options come to mind.
Create a wireguard server and have them securely get to the router and then direct them to the servers as required in a safer manner.
Second option is zerotier an optional package for RoS, that basically creates a secure LAN between users and your router ( the resources you make available).
Third option, would be to run cloudflares zero trust tunnel which is specifically designed to host servers but not expose your ports to the internet, MAGIC, and cheeses me off MT didnt make this as a package like zerotier. It can only be run as a container and now that MT seems to have a pretty decent stable container like process it may be viable.

ONe has to consider the pain for the individual and their device.
Most complex would be wiregard
Zerotier is an easier app download and minor settings.
Cloudflare is basically transparent ( another reason I wish MT had adopted this method ).

Besides, the difficulty the other main concern is wireguard is completely self-sufficient.
Zerotier and cloudflare rely on third party entities.

What I am saying is you need to ditch opening your ports to the internet
