I can’t find what’s wrong in my setup, so I need some help.
Everything is working like I wanted, except ping between hosts on different subnets.

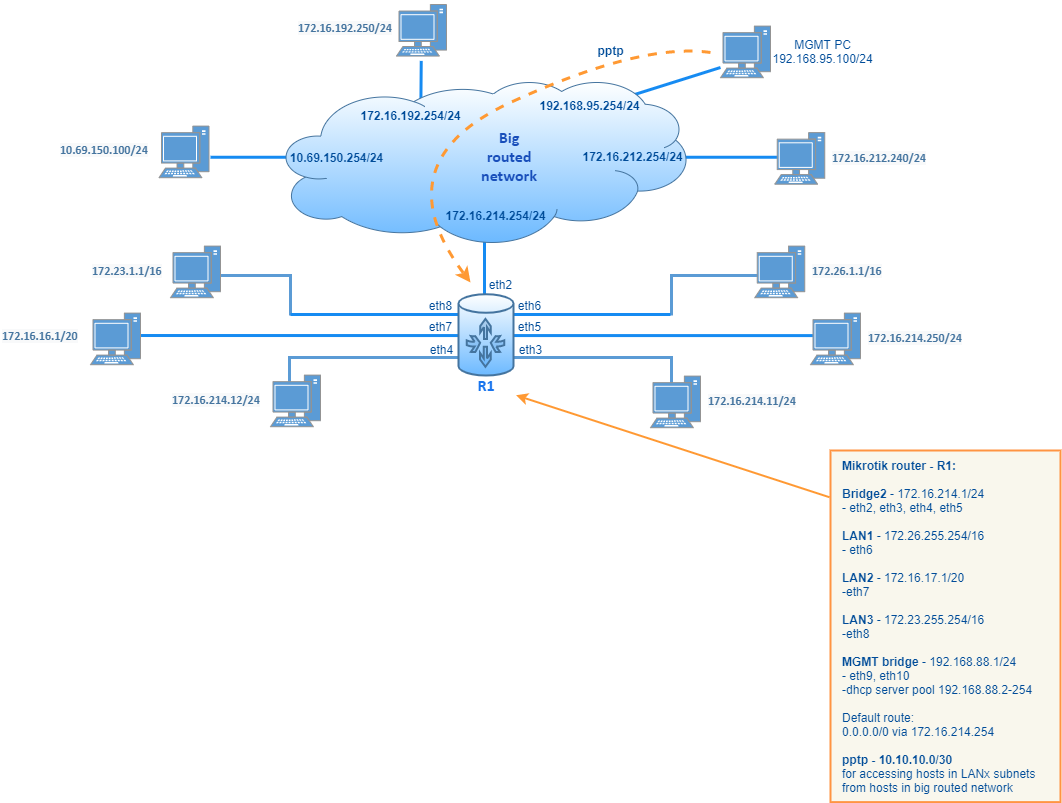

Simplified network topology:
RB4011 configuration:
# oct/30/2020 14:59:00 by RouterOS 6.47.7
# software id = xxxx
#
# model = RB4011iGS+
# serial number = xxxx
/interface bridge
add admin-mac=48:8F:5A:7A:17:9D ageing-time=5m arp=enabled arp-timeout=auto \
auto-mac=no comment=defconf dhcp-snooping=no disabled=no fast-forward=yes \
forward-delay=15s igmp-snooping=no max-message-age=20s mtu=auto name=\
"Local MGMT" priority=0x8000 protocol-mode=rstp transmit-hold-count=6 \
vlan-filtering=no
add ageing-time=5m arp=enabled arp-timeout=auto auto-mac=yes dhcp-snooping=no \
disabled=no fast-forward=yes forward-delay=15s igmp-snooping=no \
max-message-age=20s mtu=auto name="Bridge2" priority=0x8000 \
protocol-mode=rstp transmit-hold-count=6 vlan-filtering=no
/interface ethernet
set [ find default-name=ether1 ] advertise=\
10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full arp=enabled \
arp-timeout=auto auto-negotiation=yes bandwidth=unlimited/unlimited \
disabled=yes full-duplex=yes l2mtu=1592 loop-protect=default \
loop-protect-disable-time=5m loop-protect-send-interval=5s mac-address=\
48:8F:5A:7A:17:9C mtu=1500 name=ether1 orig-mac-address=48:8F:5A:7A:17:9C \
rx-flow-control=off speed=1Gbps tx-flow-control=off
set [ find default-name=ether2 ] advertise=\
10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full arp=enabled \
arp-timeout=auto auto-negotiation=yes bandwidth=unlimited/unlimited \
disabled=no full-duplex=yes l2mtu=1592 loop-protect=default \
loop-protect-disable-time=5m loop-protect-send-interval=5s mac-address=\
48:8F:5A:7A:17:9D mtu=1500 name="ether2 - link to routed network" \
orig-mac-address=48:8F:5A:7A:17:9D rx-flow-control=off speed=1Gbps \
tx-flow-control=off
set [ find default-name=ether3 ] advertise=\
10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full arp=enabled \
arp-timeout=auto auto-negotiation=yes bandwidth=unlimited/unlimited \
disabled=no full-duplex=yes l2mtu=1592 loop-protect=default \
loop-protect-disable-time=5m loop-protect-send-interval=5s mac-address=\
48:8F:5A:7A:17:9E mtu=1500 name="ether3 - SW1" orig-mac-address=\
48:8F:5A:7A:17:9E rx-flow-control=off speed=1Gbps tx-flow-control=off
set [ find default-name=ether4 ] advertise=\
10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full arp=enabled \
arp-timeout=auto auto-negotiation=yes bandwidth=unlimited/unlimited \
disabled=no full-duplex=yes l2mtu=1592 loop-protect=default \
loop-protect-disable-time=5m loop-protect-send-interval=5s mac-address=\
48:8F:5A:7A:17:9F mtu=1500 name="ether4 - SW2" orig-mac-address=\
48:8F:5A:7A:17:9F rx-flow-control=off speed=1Gbps tx-flow-control=off
set [ find default-name=ether5 ] advertise=\
10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full arp=enabled \
arp-timeout=auto auto-negotiation=yes bandwidth=unlimited/unlimited \
disabled=no full-duplex=yes l2mtu=1592 loop-protect=default \
loop-protect-disable-time=5m loop-protect-send-interval=5s mac-address=\
48:8F:5A:7A:17:A0 mtu=1500 name="ether5 - SW3" orig-mac-address=\
48:8F:5A:7A:17:A0 rx-flow-control=off speed=1Gbps tx-flow-control=off
set [ find default-name=ether6 ] advertise=\
10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full arp=enabled \
arp-timeout=auto auto-negotiation=yes bandwidth=unlimited/unlimited \
disabled=no full-duplex=yes l2mtu=1592 loop-protect=default \
loop-protect-disable-time=5m loop-protect-send-interval=5s mac-address=\
48:8F:5A:7A:17:A1 mtu=1500 name="ether6 - LAN1" orig-mac-address=\
48:8F:5A:7A:17:A1 rx-flow-control=off speed=1Gbps tx-flow-control=off
set [ find default-name=ether7 ] advertise=\
10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full arp=enabled \
arp-timeout=auto auto-negotiation=yes bandwidth=unlimited/unlimited \
disabled=no full-duplex=yes l2mtu=1592 loop-protect=default \
loop-protect-disable-time=5m loop-protect-send-interval=5s mac-address=\
48:8F:5A:7A:17:A2 mtu=1500 name="ether7 - LAN2" orig-mac-address=\
48:8F:5A:7A:17:A2 rx-flow-control=off speed=1Gbps tx-flow-control=off
set [ find default-name=ether8 ] advertise=\
10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full arp=enabled \
arp-timeout=auto auto-negotiation=yes bandwidth=unlimited/unlimited \
disabled=no full-duplex=yes l2mtu=1592 loop-protect=default \
loop-protect-disable-time=5m loop-protect-send-interval=5s mac-address=\
48:8F:5A:7A:17:A3 mtu=1500 name="ether8 - LAN3" orig-mac-address=\
48:8F:5A:7A:17:A3 rx-flow-control=off speed=1Gbps tx-flow-control=off
set [ find default-name=ether9 ] advertise=\
10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full arp=enabled \
arp-timeout=auto auto-negotiation=yes bandwidth=unlimited/unlimited \
disabled=no full-duplex=yes l2mtu=1592 loop-protect=default \
loop-protect-disable-time=5m loop-protect-send-interval=5s mac-address=\
48:8F:5A:7A:17:A4 mtu=1500 name="ether9 - local MGMT" orig-mac-address=\
48:8F:5A:7A:17:A4 rx-flow-control=off speed=1Gbps tx-flow-control=off
set [ find default-name=ether10 ] advertise=\
10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full arp=enabled \
arp-timeout=auto auto-negotiation=yes bandwidth=unlimited/unlimited \
disabled=no full-duplex=yes l2mtu=1592 loop-protect=default \
loop-protect-disable-time=5m loop-protect-send-interval=5s mac-address=\
48:8F:5A:7A:17:A5 mtu=1500 name="ether10 - local MGMT" orig-mac-address=\
48:8F:5A:7A:17:A5 poe-out=auto-on poe-priority=10 power-cycle-interval=\
none !power-cycle-ping-address power-cycle-ping-enabled=no \
!power-cycle-ping-timeout rx-flow-control=off speed=1Gbps \
tx-flow-control=off
set [ find default-name=sfp-sfpplus1 ] advertise="" arp=enabled arp-timeout=\
auto auto-negotiation=yes bandwidth=unlimited/unlimited disabled=yes \
full-duplex=yes l2mtu=1600 loop-protect=default \
loop-protect-disable-time=5m loop-protect-send-interval=5s mac-address=\
48:8F:5A:7A:17:A6 mtu=1500 name=sfp-sfpplus1 orig-mac-address=\
48:8F:5A:7A:17:A6 rx-flow-control=off speed=10Gbps tx-flow-control=off
/queue interface
set "Local MGMT" queue=no-queue
set "Bridge2" queue=no-queue
/interface ethernet switch
set 0 !cpu-flow-control mirror-source=none mirror-target=none name=switch1
set 1 !cpu-flow-control mirror-source=none mirror-target=none name=switch2
/interface ethernet switch port
set 0 default-vlan-id=0
set 1 default-vlan-id=0
set 2 default-vlan-id=0
set 3 default-vlan-id=0
set 4 default-vlan-id=0
set 5 default-vlan-id=0
set 6 default-vlan-id=0
set 7 default-vlan-id=0
set 8 default-vlan-id=0
set 9 default-vlan-id=0
set 10 default-vlan-id=0
set 11 default-vlan-id=0
/interface list
set [ find name=all ] comment="contains all interfaces" exclude="" include="" \
name=all
set [ find name=none ] comment="contains no interfaces" exclude="" include="" \
name=none
set [ find name=dynamic ] comment="contains dynamic interfaces" exclude="" \
include="" name=dynamic
set [ find name=static ] comment="contains static interfaces" exclude="" \
include="" name=static
add comment=defconf exclude="" include="" name=WAN
add comment=defconf exclude="" include="" name=LAN
/interface lte apn
set [ find default=yes ] add-default-route=yes apn=internet \
default-route-distance=2 name=default use-peer-dns=yes
/interface wireless security-profiles
set [ find default=yes ] authentication-types="" disable-pmkid=no \
eap-methods=passthrough group-ciphers=aes-ccm group-key-update=5m \
interim-update=0s management-protection=disabled mode=none \
mschapv2-username="" name=default radius-called-format=mac:ssid \
radius-eap-accounting=no radius-mac-accounting=no \
radius-mac-authentication=no radius-mac-caching=disabled \
radius-mac-format=XX:XX:XX:XX:XX:XX radius-mac-mode=as-username \
static-algo-0=none static-algo-1=none static-algo-2=none static-algo-3=\
none static-sta-private-algo=none static-transmit-key=key-0 \
supplicant-identity=MikroTik tls-certificate=none tls-mode=\
no-certificates unicast-ciphers=aes-ccm
/ip dhcp-client option
set clientid_duid code=61 name=clientid_duid value="0xff\$(CLIENT_DUID)"
set clientid code=61 name=clientid value="0x01\$(CLIENT_MAC)"
set hostname code=12 name=hostname value="\$(HOSTNAME)"
/ip hotspot profile
set [ find default=yes ] dns-name="" hotspot-address=0.0.0.0 html-directory=\
hotspot html-directory-override="" http-cookie-lifetime=3d http-proxy=\
0.0.0.0:0 login-by=cookie,http-chap name=default rate-limit="" \
smtp-server=0.0.0.0 split-user-domain=no use-radius=no
/ip hotspot user profile
set [ find default=yes ] add-mac-cookie=yes address-list="" idle-timeout=none \
!insert-queue-before keepalive-timeout=2m mac-cookie-timeout=3d name=\
default !parent-queue !queue-type shared-users=1 status-autorefresh=1m \
transparent-proxy=no
/ip ipsec mode-config
set [ find default=yes ] name=request-only responder=no use-responder-dns=\
exclusively
/ip ipsec policy group
set [ find default=yes ] name=default
/ip ipsec profile
set [ find default=yes ] dh-group=modp2048,modp1024 dpd-interval=2m \
dpd-maximum-failures=5 enc-algorithm=aes-128,3des hash-algorithm=sha1 \
lifetime=1d name=default nat-traversal=yes proposal-check=obey
/ip ipsec proposal
set [ find default=yes ] auth-algorithms=sha1 disabled=no enc-algorithms=\
aes-256-cbc,aes-192-cbc,aes-128-cbc lifetime=30m name=default pfs-group=\
modp1024
/ip pool
add name=default-dhcp ranges=192.168.88.10-192.168.88.254
/ip dhcp-server
add address-pool=default-dhcp authoritative=yes disabled=no interface=\
"Local MGMT" lease-script="" lease-time=10m name=defconf use-radius=no
/port
set 0 baud-rate=115200 data-bits=8 flow-control=none name=serial0 parity=none \
stop-bits=1
set 1 baud-rate=115200 data-bits=8 flow-control=none name=serial1 parity=none \
stop-bits=1
/ppp profile
set *0 address-list="" !bridge !bridge-horizon !bridge-path-cost \
!bridge-port-priority change-tcp-mss=yes !dns-server !idle-timeout \
!incoming-filter !insert-queue-before !interface-list !local-address \
name=default on-down="" on-up="" only-one=default !outgoing-filter \
!parent-queue !queue-type !rate-limit !remote-address !session-timeout \
use-compression=default use-encryption=default use-mpls=default use-upnp=\
default !wins-server
add address-list="" !bridge !bridge-horizon !bridge-path-cost \
!bridge-port-priority change-tcp-mss=default !dns-server !idle-timeout \
!incoming-filter !insert-queue-before !interface-list local-address=\
10.10.10.1 name=pptp-tse on-down="" on-up="" only-one=default \
!outgoing-filter !parent-queue !queue-type !rate-limit remote-address=\
10.10.10.2 !session-timeout use-compression=default use-encryption=\
default use-mpls=default use-upnp=default !wins-server
set *FFFFFFFE address-list="" !bridge !bridge-horizon !bridge-path-cost \
!bridge-port-priority change-tcp-mss=yes !dns-server !idle-timeout \
!incoming-filter !insert-queue-before !interface-list !local-address \
name=default-encryption on-down="" on-up="" only-one=default \
!outgoing-filter !parent-queue !queue-type !rate-limit !remote-address \
!session-timeout use-compression=default use-encryption=yes use-mpls=\
default use-upnp=default !wins-server
/queue type
set 0 kind=pfifo name=default pfifo-limit=50
set 1 kind=pfifo name=ethernet-default pfifo-limit=50
set 2 kind=sfq name=wireless-default sfq-allot=1514 sfq-perturb=5
set 3 kind=red name=synchronous-default red-avg-packet=1000 red-burst=20 \
red-limit=60 red-max-threshold=50 red-min-threshold=10
set 4 kind=sfq name=hotspot-default sfq-allot=1514 sfq-perturb=5
set 5 kind=pcq name=pcq-upload-default pcq-burst-rate=0 pcq-burst-threshold=0 \
pcq-burst-time=10s pcq-classifier=src-address pcq-dst-address-mask=32 \
pcq-dst-address6-mask=128 pcq-limit=50KiB pcq-rate=0 \
pcq-src-address-mask=32 pcq-src-address6-mask=128 pcq-total-limit=2000KiB
set 6 kind=pcq name=pcq-download-default pcq-burst-rate=0 \
pcq-burst-threshold=0 pcq-burst-time=10s pcq-classifier=dst-address \
pcq-dst-address-mask=32 pcq-dst-address6-mask=128 pcq-limit=50KiB \
pcq-rate=0 pcq-src-address-mask=32 pcq-src-address6-mask=128 \
pcq-total-limit=2000KiB
set 7 kind=none name=only-hardware-queue
set 8 kind=mq-pfifo mq-pfifo-limit=50 name=multi-queue-ethernet-default
set 9 kind=pfifo name=default-small pfifo-limit=10
/queue interface
set ether1 queue=only-hardware-queue
set "ether2 - link to routed network" queue=only-hardware-queue
set "ether3 - SW1" queue=only-hardware-queue
set "ether4 - SW2" queue=only-hardware-queue
set "ether5 - SW3" queue=only-hardware-queue
set "ether6 - LAN1" queue=only-hardware-queue
set "ether7 - LAN2" queue=only-hardware-queue
set "ether8 - LAN3" queue=only-hardware-queue
set "ether9 - local MGMT" queue=only-hardware-queue
set "ether10 - local MGMT" queue=only-hardware-queue
set sfp-sfpplus1 queue=only-hardware-queue
/routing bgp instance
set default as=65530 client-to-client-reflection=yes !cluster-id \
!confederation disabled=no ignore-as-path-len=no name=default out-filter=\
"" redistribute-connected=no redistribute-ospf=no redistribute-other-bgp=\
no redistribute-rip=no redistribute-static=no router-id=0.0.0.0 \
routing-table=""
/routing ospf instance
set [ find default=yes ] disabled=no distribute-default=never !domain-id \
!domain-tag in-filter=ospf-in metric-bgp=auto metric-connected=20 \
metric-default=1 metric-other-ospf=auto metric-rip=20 metric-static=20 \
!mpls-te-area !mpls-te-router-id name=default out-filter=ospf-out \
redistribute-bgp=no redistribute-connected=no redistribute-other-ospf=no \
redistribute-rip=no redistribute-static=no router-id=0.0.0.0 \
!routing-table !use-dn
/routing ospf area
set [ find default=yes ] area-id=0.0.0.0 disabled=no instance=default name=\
backbone type=default
/snmp community
set [ find default=yes ] addresses=::/0 authentication-protocol=MD5 disabled=\
no encryption-protocol=DES name=public read-access=yes security=none \
write-access=no
/system logging action
set 0 memory-lines=1000 memory-stop-on-full=no name=memory target=memory
set 1 disk-file-count=2 disk-file-name=log disk-lines-per-file=1000 \
disk-stop-on-full=no name=disk target=disk
set 2 name=echo remember=yes target=echo
set 3 bsd-syslog=no name=remote remote=0.0.0.0 remote-port=514 src-address=\
0.0.0.0 syslog-facility=daemon syslog-severity=auto syslog-time-format=\
bsd-syslog target=remote
/user group
set read name=read policy="local,telnet,ssh,reboot,read,test,winbox,password,w\
eb,sniff,sensitive,api,romon,tikapp,!ftp,!write,!policy,!dude" skin=\
default
set write name=write policy="local,telnet,ssh,reboot,read,write,test,winbox,pa\
ssword,web,sniff,sensitive,api,romon,tikapp,!ftp,!policy,!dude" skin=\
default
set full name=full policy="local,telnet,ssh,ftp,reboot,read,write,policy,test,\
winbox,password,web,sniff,sensitive,api,romon,dude,tikapp" skin=default
/caps-man aaa
set called-format=mac:ssid interim-update=disabled mac-caching=disabled \
mac-format=XX:XX:XX:XX:XX:XX mac-mode=as-username
/caps-man manager
set ca-certificate=none certificate=none enabled=no package-path="" \
require-peer-certificate=no upgrade-policy=none
/caps-man manager interface
set [ find default=yes ] disabled=no forbid=no interface=all
/certificate settings
set crl-download=no crl-store=ram crl-use=no
/interface bridge port
add auto-isolate=no bpdu-guard=no bridge="Bridge2" broadcast-flood=\
yes comment="Bridge2 ports" disabled=no edge=auto fast-leave=no \
frame-types=admit-all horizon=none hw=yes ingress-filtering=no interface=\
"ether3 - SW1" internal-path-cost=10 learn=auto multicast-router=\
temporary-query path-cost=10 point-to-point=auto priority=0x80 pvid=1 \
restricted-role=no restricted-tcn=no tag-stacking=no trusted=no \
unknown-multicast-flood=yes unknown-unicast-flood=yes
add auto-isolate=no bpdu-guard=no bridge="Bridge2" broadcast-flood=\
yes disabled=no edge=auto fast-leave=no frame-types=admit-all horizon=\
none hw=yes ingress-filtering=no interface="ether4 - SW2" \
internal-path-cost=10 learn=auto multicast-router=temporary-query \
path-cost=10 point-to-point=auto priority=0x80 pvid=1 restricted-role=no \
restricted-tcn=no tag-stacking=no trusted=no unknown-multicast-flood=yes \
unknown-unicast-flood=yes
add auto-isolate=no bpdu-guard=no bridge="Bridge2" broadcast-flood=\
yes disabled=no edge=auto fast-leave=no frame-types=admit-all horizon=\
none hw=yes ingress-filtering=no interface="ether5 - SW3" \
internal-path-cost=10 learn=auto multicast-router=temporary-query \
path-cost=10 point-to-point=auto priority=0x80 pvid=1 restricted-role=no \
restricted-tcn=no tag-stacking=no trusted=no unknown-multicast-flood=yes \
unknown-unicast-flood=yes
add auto-isolate=no bpdu-guard=no bridge="Local MGMT" broadcast-flood=yes \
comment="Local MGMT bridge ports" disabled=no edge=auto fast-leave=no \
frame-types=admit-all horizon=none hw=yes ingress-filtering=no interface=\
"ether9 - local MGMT" internal-path-cost=10 learn=auto multicast-router=\
temporary-query path-cost=10 point-to-point=auto priority=0x80 pvid=1 \
restricted-role=no restricted-tcn=no tag-stacking=no trusted=no \
unknown-multicast-flood=yes unknown-unicast-flood=yes
add auto-isolate=no bpdu-guard=no bridge="Local MGMT" broadcast-flood=yes \
disabled=no edge=auto fast-leave=no frame-types=admit-all horizon=none \
hw=yes ingress-filtering=no interface="ether10 - local MGMT" \
internal-path-cost=10 learn=auto multicast-router=temporary-query \
path-cost=10 point-to-point=auto priority=0x80 pvid=1 restricted-role=no \
restricted-tcn=no tag-stacking=no trusted=no unknown-multicast-flood=yes \
unknown-unicast-flood=yes
add auto-isolate=no bpdu-guard=no bridge="Bridge2" broadcast-flood=\
yes disabled=no edge=auto fast-leave=no frame-types=admit-all horizon=\
none hw=yes ingress-filtering=no interface="ether2 - link to routed network" \
internal-path-cost=10 learn=auto multicast-router=temporary-query \
path-cost=10 point-to-point=auto priority=0x80 pvid=1 restricted-role=no \
restricted-tcn=no tag-stacking=no trusted=no unknown-multicast-flood=yes \
unknown-unicast-flood=yes
/interface bridge settings
set allow-fast-path=yes use-ip-firewall=no use-ip-firewall-for-pppoe=no \
use-ip-firewall-for-vlan=no
/ip firewall connection tracking
set enabled=auto generic-timeout=10m icmp-timeout=10s loose-tcp-tracking=yes \
tcp-close-timeout=10s tcp-close-wait-timeout=10s tcp-established-timeout=\
1d tcp-fin-wait-timeout=10s tcp-last-ack-timeout=10s \
tcp-max-retrans-timeout=5m tcp-syn-received-timeout=5s \
tcp-syn-sent-timeout=5s tcp-time-wait-timeout=10s tcp-unacked-timeout=5m \
udp-stream-timeout=3m udp-timeout=10s
/ip neighbor discovery-settings
set discover-interface-list=LAN
/ip settings
set accept-redirects=no accept-source-route=no allow-fast-path=yes \
arp-timeout=30s icmp-rate-limit=10 icmp-rate-mask=0x1818 ip-forward=yes \
max-neighbor-entries=8192 route-cache=yes rp-filter=no secure-redirects=\
yes send-redirects=yes tcp-syncookies=no
/interface detect-internet
set detect-interface-list=none internet-interface-list=none \
lan-interface-list=none wan-interface-list=none
/interface l2tp-server server
set allow-fast-path=no authentication=pap,chap,mschap1,mschap2 \
caller-id-type=ip-address default-profile=default-encryption enabled=no \
keepalive-timeout=30 max-mru=1450 max-mtu=1450 max-sessions=unlimited \
mrru=disabled one-session-per-host=no use-ipsec=no
/interface list member
add disabled=no interface="Local MGMT" list=LAN
add comment=defconf disabled=no interface=ether1 list=WAN
add disabled=no interface="ether6 - LAN1" list=LAN
add disabled=no interface="Bridge2" list=LAN
add disabled=no interface="ether7 - LAN2" list=LAN
add comment="LAN list ports" disabled=no interface="ether8 - LAN3" list=LAN
/interface ovpn-server server
set auth=sha1,md5 cipher=blowfish128,aes128 default-profile=default enabled=\
no keepalive-timeout=60 mac-address=FE:B9:9F:CF:95:49 max-mtu=1500 mode=\
ip netmask=24 port=1194 require-client-certificate=no
/interface pptp-server server
set authentication=mschap2 default-profile=default-encryption enabled=yes \
keepalive-timeout=30 max-mru=1450 max-mtu=1450 mrru=disabled
/interface sstp-server server
set authentication=pap,chap,mschap1,mschap2 certificate=none default-profile=\
default enabled=no force-aes=no keepalive-timeout=60 max-mru=1500 \
max-mtu=1500 mrru=disabled pfs=no port=443 tls-version=any \
verify-client-certificate=no
/interface wireless align
set active-mode=yes audio-max=-20 audio-min=-100 audio-monitor=\
00:00:00:00:00:00 filter-mac=00:00:00:00:00:00 frame-size=300 \
frames-per-second=25 receive-all=no ssid-all=no
/interface wireless cap
set bridge=none caps-man-addresses="" caps-man-certificate-common-names="" \
caps-man-names="" certificate=none discovery-interfaces="" enabled=no \
interfaces="" lock-to-caps-man=no static-virtual=no
/interface wireless sniffer
set channel-time=200ms file-limit=10 file-name="" memory-limit=10 \
multiple-channels=no only-headers=no receive-errors=no streaming-enabled=\
no streaming-max-rate=0 streaming-server=0.0.0.0
/interface wireless snooper
set channel-time=200ms multiple-channels=yes receive-errors=no
/ip accounting
set account-local-traffic=no enabled=no threshold=256
/ip accounting web-access
set accessible-via-web=no address=0.0.0.0/0
/ip address
add address=192.168.88.1/24 comment=defconf disabled=no interface=\
"Local MGMT" network=192.168.88.0
add address=172.26.255.254/16 comment="LAN1" disabled=no interface=\
"ether6 - LAN1" network=172.26.0.0
add address=172.16.214.1/24 comment="link to routed network" disabled=no interface=\
"Bridge2" network=172.16.214.0
add address=172.16.17.1/20 comment="LAN2" disabled=no interface=\
"ether7 - LAN2" network=172.16.16.0
add address=172.23.255.254/16 comment=LAN3 disabled=no interface=\
"ether8 - LAN3" network=172.23.0.0
/ip cloud
set ddns-enabled=no ddns-update-interval=none update-time=yes
/ip cloud advanced
set use-local-address=no
/ip dhcp-client
add add-default-route=yes comment=defconf default-route-distance=1 \
dhcp-options=hostname,clientid disabled=no interface=ether1 use-peer-dns=\
yes use-peer-ntp=yes
/ip dhcp-server config
set accounting=yes interim-update=0s store-leases-disk=5m
/ip dhcp-server network
add address=192.168.88.0/24 caps-manager="" comment=defconf dhcp-option="" \
dns-server="" gateway=192.168.88.1 ntp-server="" wins-server=""
/ip dns
set allow-remote-requests=yes cache-max-ttl=1w cache-size=2048KiB \
max-concurrent-queries=100 max-concurrent-tcp-sessions=20 \
max-udp-packet-size=4096 query-server-timeout=2s query-total-timeout=10s \
servers=8.8.8.8 use-doh-server="" verify-doh-cert=no
/ip dns static
add address=192.168.88.1 comment=defconf disabled=no name=router.lan ttl=1d
/ip firewall filter
add action=accept chain=input comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked disabled=no
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
invalid disabled=no
add action=accept chain=input comment="defconf: accept ICMP" disabled=no \
protocol=icmp
add action=accept chain=input comment=\
"defconf: accept to local loopback (for CAPsMAN)" disabled=no \
dst-address=127.0.0.1
add action=drop chain=input comment="defconf: drop all not coming from LAN" \
!connection-bytes !connection-limit !connection-mark \
!connection-nat-state !connection-rate !connection-state !connection-type \
!content disabled=no !dscp !dst-address !dst-address-list \
!dst-address-type !dst-limit !dst-port !fragment !hotspot !icmp-options \
!in-bridge-port !in-bridge-port-list !in-interface in-interface-list=!LAN \
!ingress-priority !ipsec-policy !ipv4-options !layer7-protocol !limit \
log=no log-prefix="" !nth !out-bridge-port !out-bridge-port-list \
!out-interface !out-interface-list !packet-mark !packet-size \
!per-connection-classifier !port !priority !protocol !psd !random \
!routing-mark !routing-table !src-address !src-address-list \
!src-address-type !src-mac-address !src-port !tcp-flags !tcp-mss !time \
!tls-host !ttl
add action=accept chain=forward comment="defconf: accept in ipsec policy" \
disabled=no ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" \
disabled=no ipsec-policy=out,ipsec
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" \
connection-state=established,related disabled=no
add action=accept chain=forward comment=\
"defconf: accept established,related, untracked" connection-state=\
established,related,untracked disabled=no
add action=drop chain=forward comment="defconf: drop invalid" \
!connection-bytes !connection-limit !connection-mark \
!connection-nat-state !connection-rate connection-state=invalid \
!connection-type !content disabled=no !dscp !dst-address \
!dst-address-list !dst-address-type !dst-limit !fragment !hotspot \
!icmp-options !in-bridge-port !in-bridge-port-list !in-interface \
!in-interface-list !ingress-priority !ipsec-policy !ipv4-options \
!layer7-protocol !limit log=no log-prefix="" !nth !out-bridge-port \
!out-bridge-port-list !out-interface !out-interface-list !packet-mark \
!packet-size !per-connection-classifier !priority !protocol !psd !random \
!routing-mark !routing-table !src-address !src-address-list \
!src-address-type !src-mac-address !tcp-flags !time !tls-host !ttl
add action=drop chain=forward comment=\
"defconf: drop all from WAN not DSTNATed" connection-nat-state=!dstnat \
connection-state=new disabled=no in-interface-list=WAN
/ip firewall nat
add action=masquerade chain=srcnat comment=\
"For PPTP clients to access hosts in LAN subnets" !connection-bytes \
!connection-limit !connection-mark !connection-rate !connection-type \
!content disabled=no !dscp dst-address=!10.10.10.0/30 !dst-address-list \
!dst-address-type !dst-limit !fragment !hotspot !icmp-options \
!in-bridge-port !in-bridge-port-list !in-interface !in-interface-list \
!ingress-priority !ipsec-policy !ipv4-options !layer7-protocol !limit \
log=no log-prefix="" !nth !out-bridge-port !out-bridge-port-list \
!out-interface !out-interface-list !packet-mark !packet-size \
!per-connection-classifier !priority !protocol !psd !random !routing-mark \
!routing-table src-address=10.10.10.0/30 !src-address-list \
!src-address-type !src-mac-address !time !tls-host !to-addresses \
!to-ports !ttl
/ip firewall service-port
set ftp disabled=yes ports=21
set tftp disabled=yes ports=69
set irc disabled=yes ports=6667
set h323 disabled=yes
set sip disabled=yes ports=5060,5061 sip-direct-media=yes sip-timeout=1h
set pptp disabled=no
set udplite disabled=no
set dccp disabled=no
set sctp disabled=no
/ip hotspot service-port
set ftp disabled=no ports=21
/ip hotspot user
set [ find default=yes ] comment="counters and limits for trial users" \
disabled=no name=default-trial
/ip ipsec policy
set 0 disabled=no dst-address=::/0 group=default proposal=default protocol=\
all src-address=::/0 template=yes
/ip ipsec settings
set accounting=yes interim-update=0s xauth-use-radius=no
/ip proxy
set always-from-cache=no anonymous=no cache-administrator=webmaster \
cache-hit-dscp=4 cache-on-disk=no cache-path=web-proxy enabled=no \
max-cache-object-size=2048KiB max-cache-size=unlimited \
max-client-connections=600 max-fresh-time=3d max-server-connections=600 \
parent-proxy=:: parent-proxy-port=0 port=8080 serialize-connections=no \
src-address=::
/ip route
add !bgp-as-path !bgp-atomic-aggregate !bgp-communities !bgp-local-pref \
!bgp-med !bgp-origin !bgp-prepend !check-gateway disabled=no distance=1 \
dst-address=192.168.2.0/24 gateway=172.16.214.254 !route-tag \
!routing-mark scope=30 target-scope=10
/ip service
set telnet address="" disabled=yes port=23
set ftp address="" disabled=yes port=21
set www address="" disabled=no port=80
set ssh address="" disabled=no port=22
set www-ssl address="" certificate=none disabled=yes port=443 tls-version=any
set api address="" disabled=yes port=8728
set winbox address="" disabled=no port=8291
set api-ssl address="" certificate=none disabled=yes port=8729 tls-version=\
any
/ip smb
set allow-guests=yes comment=MikrotikSMB domain=MSHOME enabled=no interfaces=\
all
/ip smb shares
set [ find default=yes ] comment="default share" directory=/pub disabled=no \
max-sessions=10 name=pub
/ip smb users
set [ find default=yes ] disabled=no name=guest read-only=yes
/ip socks
set auth-method=none connection-idle-timeout=2m enabled=no max-connections=\
200 port=1080 version=4
/ip ssh
set allow-none-crypto=no always-allow-password-login=no forwarding-enabled=no \
host-key-size=2048 strong-crypto=no
/ip tftp settings
set max-block-size=4096
/ip traffic-flow
set active-flow-timeout=30m cache-entries=256k enabled=no \
inactive-flow-timeout=15s interfaces=all
/ip traffic-flow ipfix
set bytes=yes dst-address=yes dst-address-mask=yes dst-mac-address=yes \
dst-port=yes first-forwarded=yes gateway=yes icmp-code=yes icmp-type=yes \
igmp-type=yes in-interface=yes ip-header-length=yes ip-total-length=yes \
ipv6-flow-label=yes is-multicast=yes last-forwarded=yes nat-dst-address=\
yes nat-dst-port=yes nat-src-address=yes nat-src-port=yes out-interface=\
yes packets=yes protocol=yes src-address=yes src-address-mask=yes \
src-mac-address=yes src-port=yes tcp-ack-num=yes tcp-flags=yes \
tcp-seq-num=yes tcp-window-size=yes tos=yes ttl=yes udp-length=yes
/ip upnp
set allow-disable-external-interface=no enabled=no show-dummy-rule=yes
/mpls
set dynamic-label-range=16-1048575 propagate-ttl=yes
/mpls interface
set [ find default=yes ] disabled=no interface=all mpls-mtu=1508
/mpls ldp
set distribute-for-default-route=no enabled=no hop-limit=255 loop-detect=no \
lsr-id=0.0.0.0 path-vector-limit=255 transport-address=0.0.0.0 \
use-explicit-null=no
/port firmware
set directory=firmware ignore-directip-modem=no
/ppp aaa
set accounting=yes interim-update=0s use-circuit-id-in-nas-port-id=no \
use-radius=no
/ppp secret
add caller-id="" disabled=no limit-bytes-in=0 limit-bytes-out=0 \
!local-address name=tse profile=pptp-tse !remote-address routes="" \
service=pptp
/radius incoming
set accept=no port=3799
/routing bfd interface
set [ find default=yes ] disabled=no interface=all interval=0.2s min-rx=0.2s \
multiplier=5
/routing mme
set bidirectional-timeout=2 gateway-class=none gateway-keepalive=1m \
gateway-selection=no-gateway origination-interval=5s preferred-gateway=\
0.0.0.0 timeout=1m ttl=50
/routing rip
set distribute-default=never garbage-timer=2m metric-bgp=1 metric-connected=1 \
metric-default=1 metric-ospf=1 metric-static=1 redistribute-bgp=no \
redistribute-connected=no redistribute-ospf=no redistribute-static=no \
routing-table=main timeout-timer=3m update-timer=30s
/snmp
set contact="" enabled=no engine-id="" location="" trap-community=public \
trap-generators=temp-exception trap-target="" trap-version=1
/system clock
set time-zone-autodetect=yes time-zone-name=Europe/Belgrade
/system clock manual
set dst-delta=+00:00 dst-end="jan/01/1970 00:00:00" dst-start=\
"jan/01/1970 00:00:00" time-zone=+00:00
/system console
set [ find port=serial0 ] channel=0 disabled=no port=serial0 term=vt102
/system identity
set name=MikroTik
/system leds
set 0 disabled=no interface=sfp-sfpplus1 leds=sfp-sfpplus-led type=\
interface-activity
/system leds settings
set all-leds-off=never
/system logging
set 0 action=memory disabled=no prefix="" topics=info
set 1 action=memory disabled=no prefix="" topics=error
set 2 action=memory disabled=no prefix="" topics=warning
set 3 action=echo disabled=no prefix="" topics=critical
/system note
set note="" show-at-login=yes
/system ntp client
set enabled=no mode=unicast primary-ntp=0.0.0.0 secondary-ntp=0.0.0.0
/system ntp server
set broadcast=no broadcast-addresses="" enabled=no manycast=yes multicast=no
/system resource irq
set 0 cpu=auto
set 1 cpu=auto
set 2 cpu=auto
set 3 cpu=auto
set 4 cpu=auto
set 5 cpu=auto
set 6 cpu=auto
/system resource irq rps
set ether1 disabled=yes
set "ether2 - link to routed network" disabled=yes
set "ether3 - SW1" disabled=yes
set "ether4 - SW2" disabled=yes
set "ether5 - SW3" disabled=yes
set "ether6 - LAN1" disabled=yes
set "ether7 - LAN2" disabled=yes
set "ether8 - LAN3" disabled=yes
set "ether9 - local MGMT" disabled=yes
set "ether10 - local MGMT" disabled=yes
set sfp-sfpplus1 disabled=no
/system routerboard settings
set auto-upgrade=no baud-rate=115200 boot-delay=2s boot-device=\
nand-if-fail-then-ethernet boot-protocol=bootp enable-jumper-reset=yes \
enter-setup-on=any-key protected-routerboot=disabled \
reformat-hold-button=20s reformat-hold-button-max=10m silent-boot=no
/system routerboard reset-button
set enabled=no hold-time=0s..1m on-event=""
/system upgrade mirror
set check-interval=1d enabled=no primary-server=0.0.0.0 secondary-server=\
0.0.0.0 user=""
/system watchdog
set auto-send-supout=no automatic-supout=yes ping-start-after-boot=5m \
ping-timeout=1m watch-address=none watchdog-timer=yes
/tool bandwidth-server
set allocate-udp-ports-from=2000 authenticate=yes enabled=yes max-sessions=\
100
/tool e-mail
set address=0.0.0.0 from=<> port=25 start-tls=no user=""
/tool graphing
set page-refresh=300 store-every=5min
/tool mac-server
set allowed-interface-list=LAN
/tool mac-server mac-winbox
set allowed-interface-list=LAN
/tool mac-server ping
set enabled=yes
/tool romon
set enabled=no id=00:00:00:00:00:00
/tool romon port
set [ find default=yes ] cost=100 disabled=no forbid=no interface=all
/tool sms
set allowed-number="" auto-erase=no channel=0 port=none receive-enabled=no
/tool sniffer
set file-limit=1000KiB file-name="" filter-cpu="" filter-direction=any \
filter-interface="" filter-ip-address="" filter-ip-protocol="" \
filter-ipv6-address="" filter-mac-address="" filter-mac-protocol="" \
filter-operator-between-entries=or filter-port="" filter-size="" \
filter-stream=no memory-limit=100KiB memory-scroll=yes only-headers=no \
streaming-enabled=no streaming-server=0.0.0.0:37008
/tool traffic-generator
set latency-distribution-max=100us measure-out-of-order=no \
stats-samples-to-keep=100 test-id=0
/user aaa
set accounting=yes default-group=read exclude-groups="" interim-update=0s \
use-radius=no
Regarding default config and FW rules, only thing changed is:
- Removed NAT masquerade rule for ether1, no Internet connection.
- Added simple PPTP service, and masquerade rule for PPTP, without this rule, PPTP clients from big routed network can’t reach hosts in subnets behind RB4011 (found the rule on forum).
- Added all ports to LAN interface list (maybe not needed).
- Created new bridge and reordered default bridge interfaces.
Tried all sorts of things with firewall, ping not working as expected.
Used Windows RDP service on hosts in subnets to simulate real traffic and to test connections, everything is working well.
I’m lacking advanced troubleshooting skills to find out why hosts can’t ping each other.
I would really appreciate any help, and will provide more info if needed.
Thanks in advance!
