Hi all,
I’ve got this harware for a mobile hotpot. Sierra MC8705 is supported by Mikrotik and I expected no problems, but I am unable to make it work.
Card is recognized OK, and it see it in /ports and /system resources. The LTE interface goes up and shows a nice AT command dialog.
20:23:18 async,debug lte1: sent AT+CFUN=0
20:23:18 async,debug lte1: rcvd OK
20:23:18 async,debug lte1: sent AT+CFUN=1
20:23:18 async,debug lte1: rcvd OK
20:23:18 async,debug lte1: sent AT+CPIN?
20:23:18 async,debug lte1: rcvd +CPIN: READY
20:23:18 async,debug lte1: rcvd
20:23:18 async,debug lte1: sent AT+CGDCONT=1,"IP","ac.vodafone.es"
20:23:18 async,debug lte1: rcvd OK
20:23:18 async,debug lte1: sent AT$QCPDPP=1,2,"vodafone","vodafone"
20:23:18 async,debug lte1: rcvd OK
20:23:18 async,debug lte1: sent AT+COPS=2
20:23:18 async,debug lte1: rcvd OK
20:23:20 async,debug lte1: sent AT+COPS=0,0,,2
20:23:20 async,debug lte1: rcvd OK
20:23:20 async,debug lte1: sent AT!SCACT=1,1
20:23:29 async,debug lte1: rcvd OK
20:23:30 lte,debug config ok
20:23:33 async,debug lte1: sent AT+COPS?
20:23:33 async,debug lte1: rcvd +COPS: 0,0,"vodafone ES",2
20:23:33 lte,debug network registration state: 1 access technology: 2
20:23:33 interface,info lte1 link up
20:23:33 route,debug,event Interface change
20:23:33 route,debug,event interface=lte1
20:23:33 route,debug,event status=UP
20:23:33 route,debug,event mtu=1500
20:23:33 route,debug,event Interface change
20:23:33 route,debug,event interface=lte1
20:23:33 route,debug,event status=UP,RUNNING
20:23:33 route,debug,event mtu=1500
But after that I have no connection to Internet.

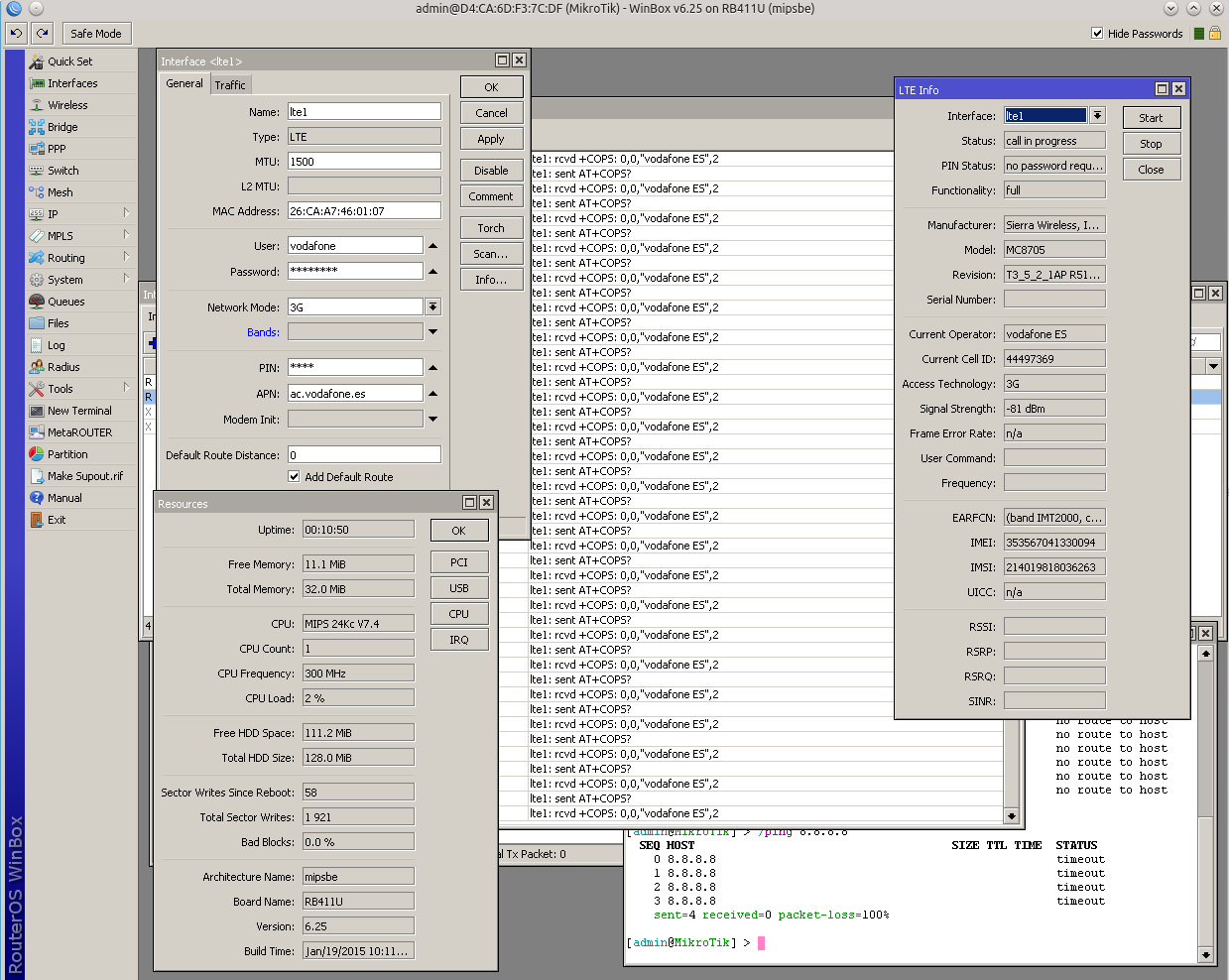

The card configuration is shown in the screenshot below:
[admin@MikroTik] /interface lte> print
Flags: X - disabled, R - running
0 X name="lte1" mtu=1500 mac-address=26:CA:A7:46:01:07 pin="5691"
apn="ac.vodafone.es" user="vodafone" password="vodafone" network-mode=3g
authentication=chap
[admin@MikroTik] /interface lte> info lte1
status: call in progress
pin-status: no password required
functionality: full
manufacturer: Sierra Wireless, Incorporated
model: MC8705
revision: T3_5_2_1AP R517 CNSZXD00000128 2012/02/07 13:03:25
current-operator: vodafone ES
current-cellid: 44436007
access-technology: 3G
signal-strengh: -83 dBm
frame-error-rate: n/a
earfcn: (band IMT2000, channel 10738)
imei: 353567041330094
imsi: 214019818036263
uicc: n/a
I’ve spent several days with no progress. I’ve changed the APN as Vodafone in Spain has several possible apns with no luck.
Any clue? I appreciate any pointers.
