RB411UAHR with Sierra Wireless MC7710

Hardware MikroTik hardware general
1

Hi guys,

while the module is now officially supported, I wonder what speeds you are able to achieve.
I got the Huawai B593 here as well and I can achieve up to 60 mbit with that unit.

The Routerboard setup is able to deliver maybe up to 20 mbit,
but I never saw anything above that. So how are you guys doing and is there a trick to make it faster?

I already put a more powerful antenna in the setup which helped a little bit,
but not that much.

Maybe there is a firmware upgrade from Sierra Wireless that helps?

Thanks!

Kind regards,
Daniel

2

i’m using an rb411U and mc7710, I get a throughput of approx 30-35Mb/s with signal-strengh: -69 dBm on my carrier.

3

Thats quite a bit more. Which firmware version do you run on the module?

With my 9dbi antenna I have roughly -58db and sometimes even better, so I assume reception is not the problem.

Do you use the auxiliary antenna?

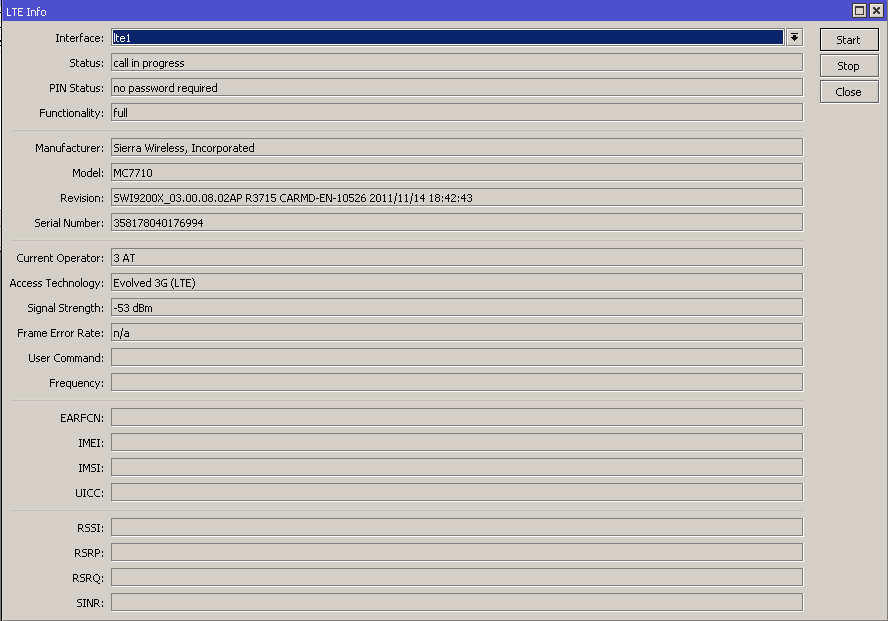

PS: added a screenshot of the lte interface status.
Bildschirmfoto 2013-06-05 um 16.00.14.png

4

Nope, i dont use the aux antenna. your signal is great, i dont think that is the problem.

What does your cpu look like when you’re pushing it ?

/system resource print
                   uptime: 2w12h20m19s
                  version: 5.21
              free-memory: 19108KiB
             total-memory: 29696KiB
                      cpu: MIPS 24Kc V7.4
                cpu-count: 1
            cpu-frequency: 300MHz
                 cpu-load: 1%
           free-hdd-space: 89692KiB
          total-hdd-space: 126976KiB
  write-sect-since-reboot: 39220
         write-sect-total: 90139
               bad-blocks: 0%
        architecture-name: mipsbe
               board-name: RB411U
                 platform: MikroTik

/system routerboard print
       routerboard: yes
             model: 411U
     serial-number: xxxxxxxx
  current-firmware: 3.07
  upgrade-firmware: 2.41

 /interface lte info number=0
             status: call in progress
         pin-status: no password required
      functionality: full
       manufacturer: Sierra Wireless, Incorporated
              model: MC7710
           revision: SWI9200X_03.00.08.02AP R3715 CARMD-EN-10526 2011/11/14 18:42:43
      serial-number: xxxxxxxx
   current-operator: Telstra Mobile
  access-technology: Evolved 3G (LTE)
     signal-strengh: -63 dBm
   frame-error-rate: n/a
5

Thanks for your input, sadly it is not the CPU useage. I wonder:
does your setup connect to LTE by itself, or did you set LTE in the interface?

Kind regards,
Daniel

6

my lte interface existed when the modem was installed (i believe it prepopulates since around ros 5.14 or so). modem set to use direct ip and a dhcp client on the lte1 interface.

i’m not too sure what could be the problem, maybe post your /export and we can take a look ? silly question but its the same frequency and carrier as your Huawai B593 right ?

7

Sorry my ignorancia, but would be possible we use the LTE as AP for we transmit signal to phones without use Wireless?
