I decided to upgrade my RB450’s ROS version v3.10 to v3.30, downloaded it from the Mikrotik’s site and FTPed the packages to RB450, then done the reboot on winbox. When it got started NIC LED flashed (eth5, then eth4, eth3,.., eth1/poe), then I hear one ‘beep’ of slightly longer than usual system starts to load and that’s all. No ‘twice beep’ as per during normal after router booting process, no IP & MAC connectivity on any winbox interface including eth1/poe. Please see the attachment.
I have also gone through the hardware reset process but nothing happened.

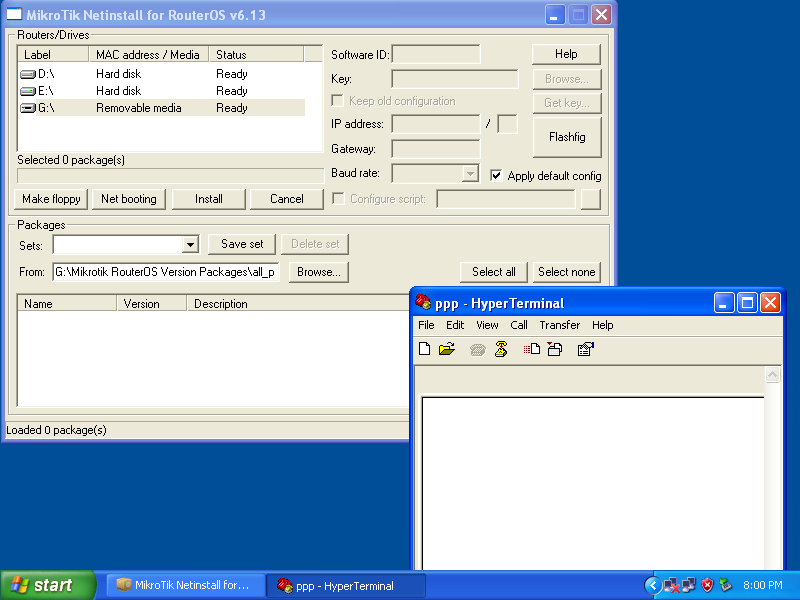

Also, gone through the netinstall process with null modem cable serial port connectivity, but nothing happened in the netinstall window and hyperlink terminal window. Please refer to the attachment.
Gone through the web to mugged up & study a lot on each and every topic from the Mikrotik to fix this problem on this, but no luck at all.
Any Mikrotik real expert and/or experienced user out there could fix this to me. I heartily appreciate his great support & assistance in solving this big routerboard’s OS bricking/killing issue often related with the Mikrotik products. Thanks

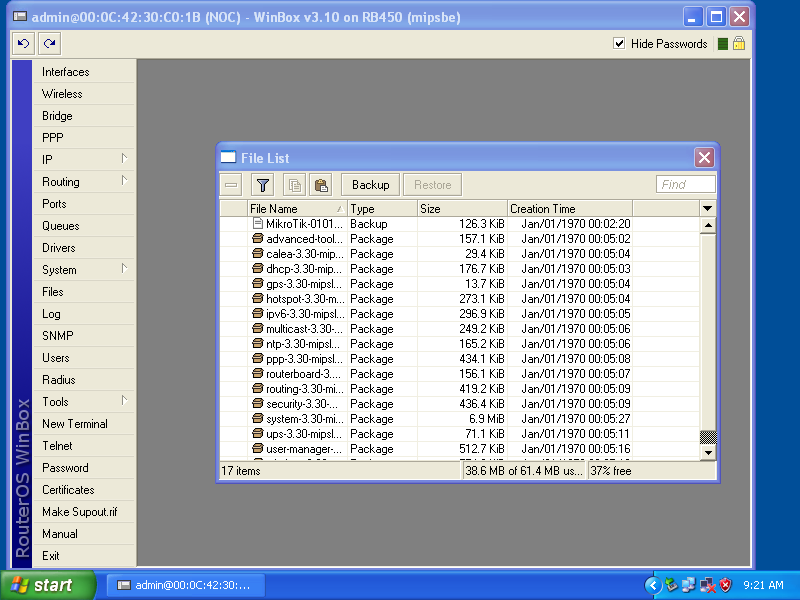

Your first screenshot shows that you uploaded mipsle packages to your mipsbe device. If you will netinstall the firmware for the correct architecture it should work better.
Thanks rextended. But afraid to say that i tried to search a lot on net to get the exact solution how to fix a bricked MT devices to this, but no luck at all.
Thanks. but sorry bro i have been gone through this manual process, but nothing happened at all. Didn’t seen any activity in netinsall and Serial Console window. Please see the attachment in my post.
If the router is alive, there should be some info from the bootloader on the serial port.
Are you sure the serial cable is wired as needed (there are different cables out there) and the terminal set to 115200 baud 1N8?
It would be wonderful if you could check the cable on another similar router…

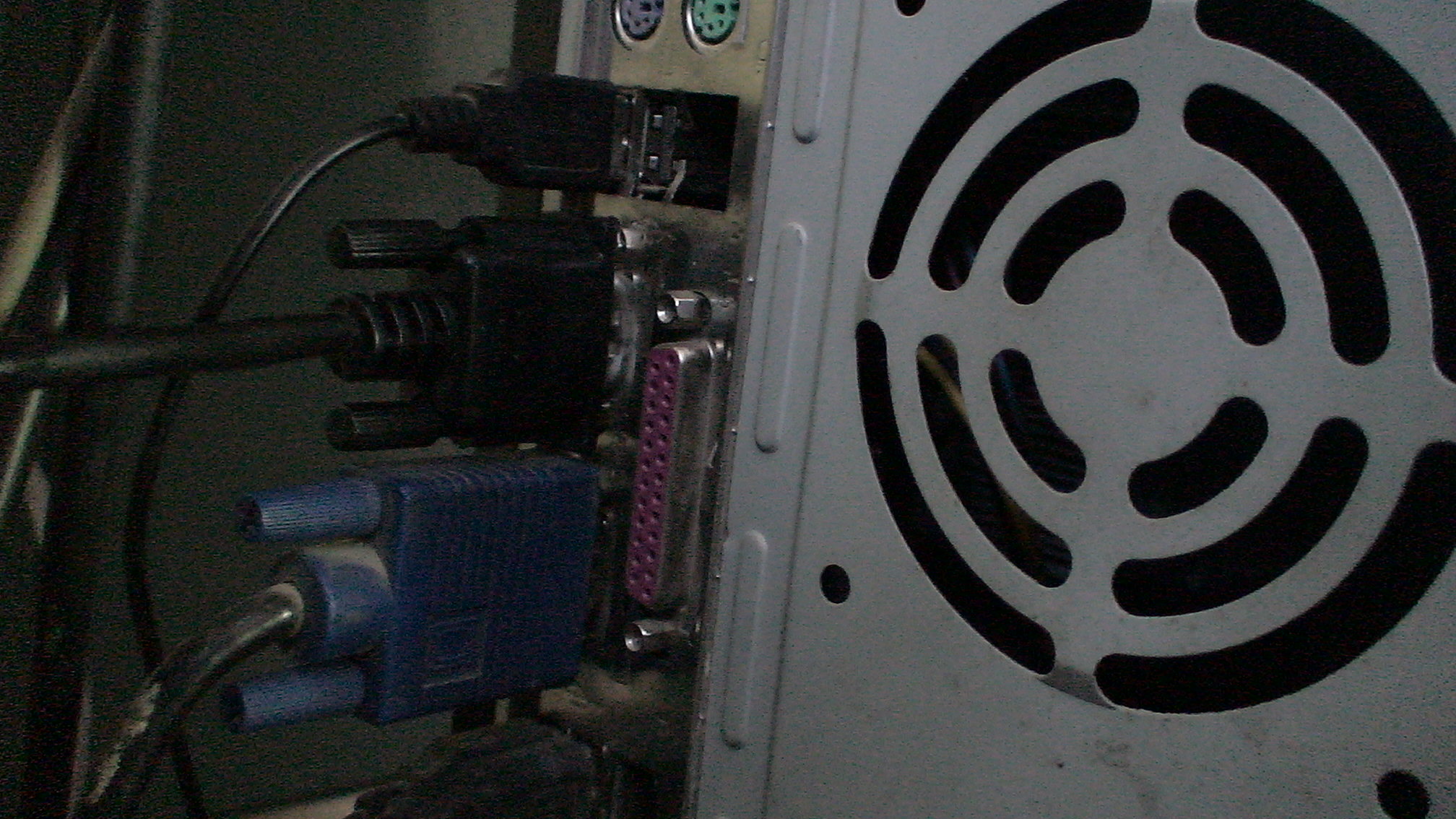

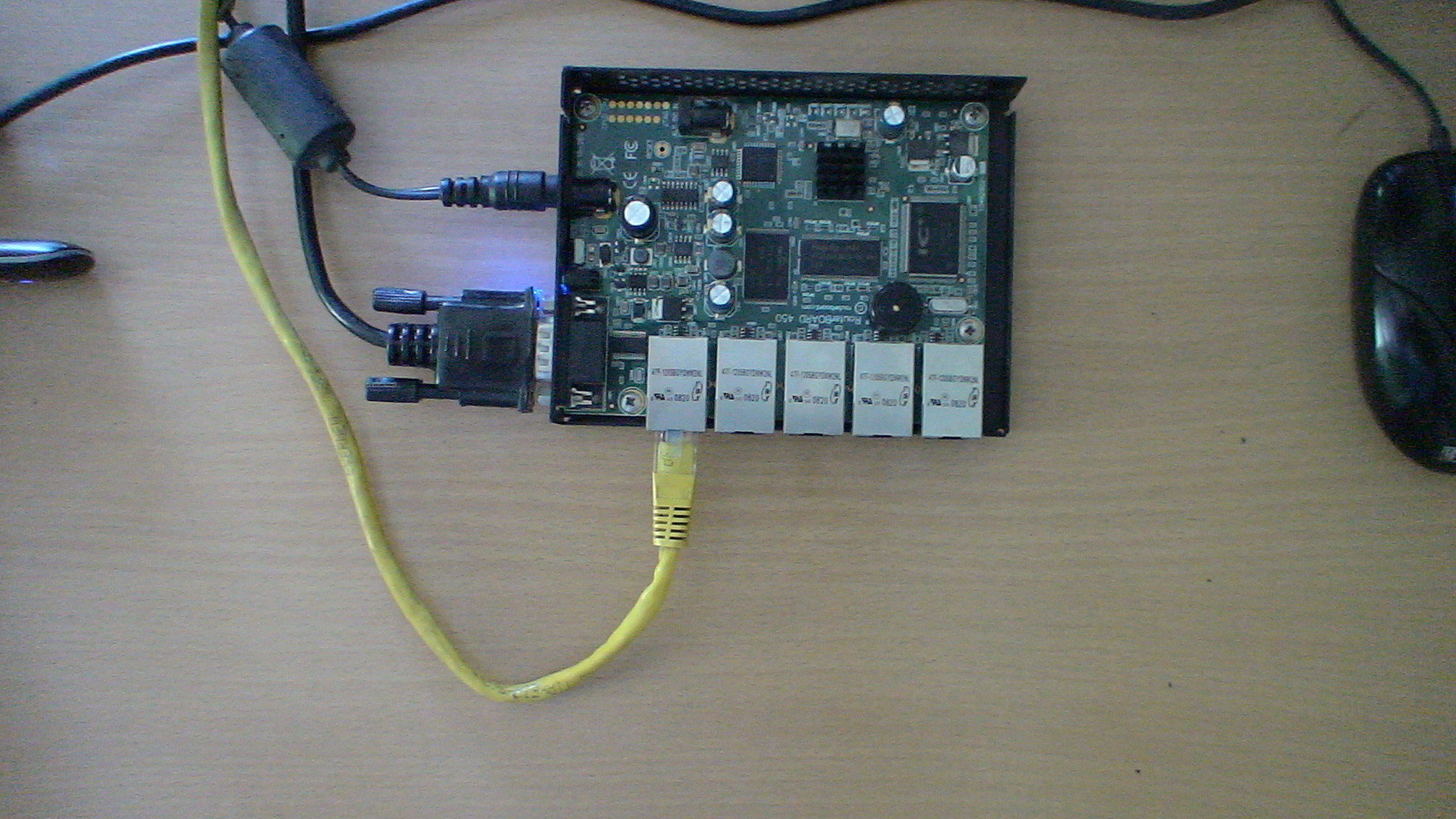

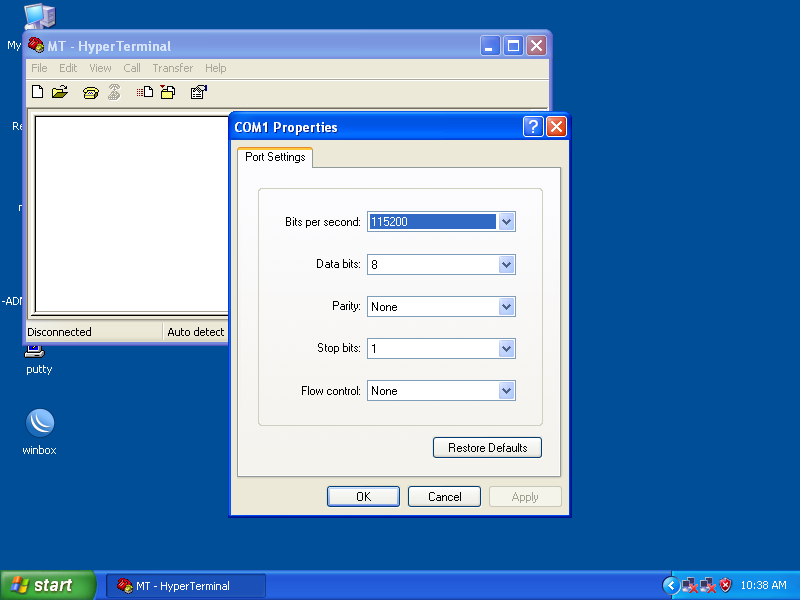

I think serial console cable is straight forward no compatible circuitry with software driver needed with in it to connect to the PC. Please see the screenshot. Nothing happened as per the setting also. Sorry, right now i don’t have any other router with serial port except this one. But it must response something. It got bricked not fried at all.

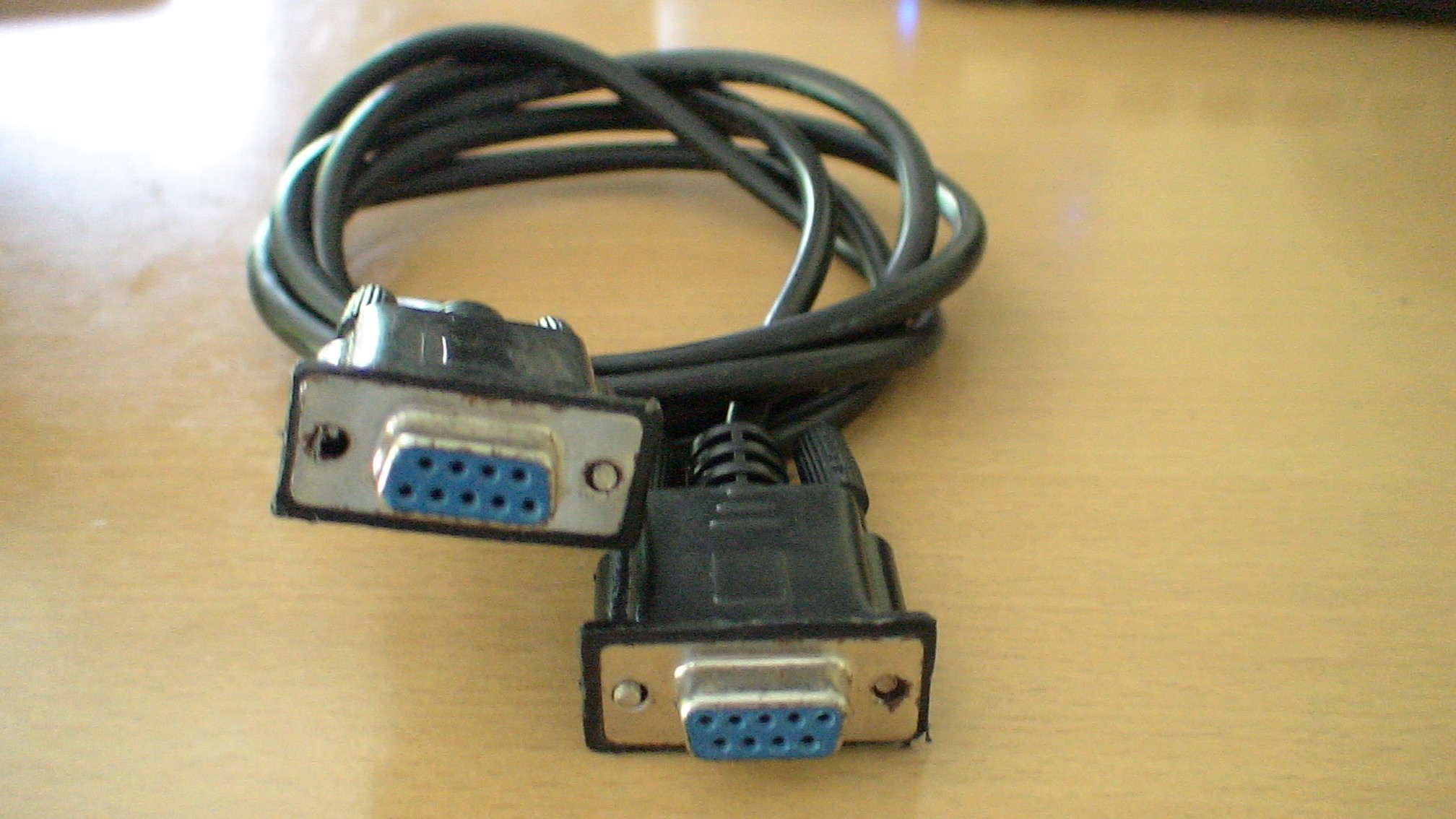

Okay thanks to inform! Could you please let me explain how to distinguish between special null-modem cable and straight-serial cable. In the wiki Manual there is tutorial how to use the cable with terminal, not explained any more about between special null-modem cable and straight-serial cable and its software requirement. By the way please see the above screenshot and let me know what type of cable i’m using? Thanks.
You can’t tell how a pre-made serial cable is wired by looking at it unless they were nice enough to stamp “Null-Modem” in the plastic shroud of the connector.
You can tell how a pre-made serial cable is wired by using an ohm meter to determine which wire is connected to which pin at each end of the cable.
Have you tried using the backup boot loader by pushing the button between the power connector and the serial port?
A cisco roll-over serial cable will work perfectly, if you happen to have one laying around.
Yes! i have been tried backup boot loader reset button between power connector and serial port even on the reset PCB jumper on board, but no luck at all. BTW thanks for your suggestion.
On a straight cable, all pins are connected 1 to 1.
A null modem cable will have Rx and TX switched: pin 2 to pin 3 and pin 3 to pin 2.
You need a null modem cable for this to work.
Basically you can make a cable only with 3 wires: 2->3, 3->2 and 5->5. It will work if handshake is turned off on the computer.
It can’t be simpler than this…
Just get 2 DB-9 female connectors (A and B) and 3 wires (you could strip the from an alarm or ethernet cable).
The pins on the DB-9 are numbered on the connector (look on the plastic part, there are some numbers there).
Connect as follows:
pin 2 on A to pin 3 on B
pin 3 on A to pin 2 on B
pin 5 on A to pin 5 on B
Thank you so much to make the things to understand simply and practically effective. Once again thanks for the great support. I’ll go for this and let keep inform with the updated info whether got access the RB or not. Thanks.
Even if hypter terminal has the wrong settings for baud and parity you should see characters being echoed or displayed. The manual says 9600 but I had to use 115,200, 8, none, 1 and none.
use VT100 emulation.

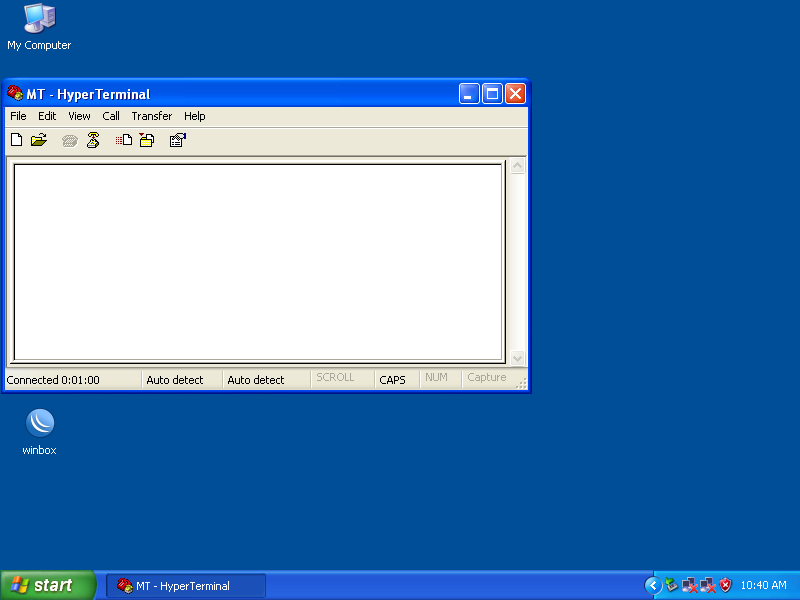

The ‘connected’ indicator is worthless, mine shows connected without a cable on the serial port as soon as I hit the enter key.
