I have tried to find an answer to this in the documentation and on youtube without any luck
So I have an Rb5009 that has a handfull of vlans on it that is working just fine.
But now I have an wAPax that I want to have different SSID`s on different vlans.
The plan is to have the RB5009 to handle all the dhcp and firewall for everything.
As far as I understand, the vlans I want to use for wireless need to be setup on the rb5009 as it will handle the dhcp and the port that goes to the wap should then be an trunk port, but does the vlans need to be defined under bridge–>vlan on the wap too and if yes, all vlans or only the ones that comes though the trunk to the wap?
Once you have both done,post for review
/export file=anynameyouwish (minus router serial number, any public WANIP information, keys etc. )
PS. I normally first take an unused port and take it off the bridge give it an address 192.168.55.1/30, and the plug into the port with my laptop changing ipv4 settings to 192.168.55.2
Much safer place to do vlan configs on bridges… dont forget to add etherX to the LAN interface list or TRUSTED interface list.
I looked into the AP config from that post and as I thought the vlans that will be used on the wifi +the trunk need to defined on the wAPax, but not the vlans that should not be accessible over wifi
Will see if I can manage to set this up
With ax devices, the wifi driver can indeed handle tagging/untagging on its own. So you’ll have to specify an /interface/wifi/datapath row for each SSID; each datapath row will have an individual vlan-id value and a common bridge value. The /interface/wifi/configuration rows will specify the ssid values and refer to the datapath ones.
The wifi driver will make all the wifi interfaces member ports of the bridge in trunk mode and do the tagging/untagging internally; such an approach allows /interface/wifi/access-list rules or RADIUS authentication responses to override the VLAN ID specified on the datapath row, so some clients connected to a given SSID may be connected into other VLANs this way. This also removes the need to activate vlan-filtering on the bridge on the AP if you do not need it for other purposes.
Got a bit confused on where to set the vlan-IDs, but made sense after a while
I thought I could set different vlan-IDs in the wifi configuration but if I do that, my wifi devices wont connect at all. As far as I understand, that makes the SSID tagged on that vlan.
But if I after making an slave-SSID defines that “interface” as an port in the bridge setting, I can set the PVID there and then it works wapaxsetup.rsc (2.38 KB)
I can see no /interface/wifi/datapath section in your export so no wonder it did not work the way I’ve described. But the way you’ve done it is not wrong, it just does not make use of the advanced features of the wifi-qcom driver used on ax devices as compared to the wifi-qcom-ac one used on ac devices.
I found the Datapath in winbox now, but this is totally new to me so I have no clue how to setup that correct.

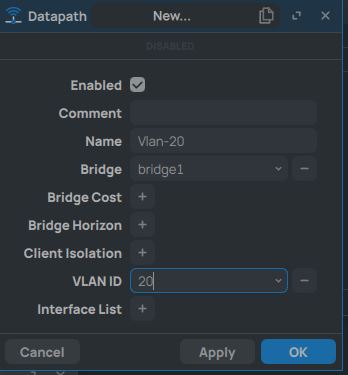

But I guess it would look something like in this screenshot and then as you say, under wifi–>configuration the correct Datapath profile is selected.
And if I do it this way, there is no need to define the PVID on the Bridge–>Inteface ?
If you do it that way, there is even no need to add the /interface/bridge/port row as it is added dynamically instead. You can think of the datapath row as of a template for that. It means you have to remove the statically added /interface/bridge/port row before re-provisioning the radios with the datapath added to the configuration.
