RB750Gr2 block diagram (AKA old HEX)

guipoletto · May 18, 2021, 3:27am

Hi, does someone have an archived version of the RB750Gr2 block diagram?

all references to it were disappeared, and replaced by RB750GR3 under the same name

Elans · May 19, 2021, 4:40am

Hello,

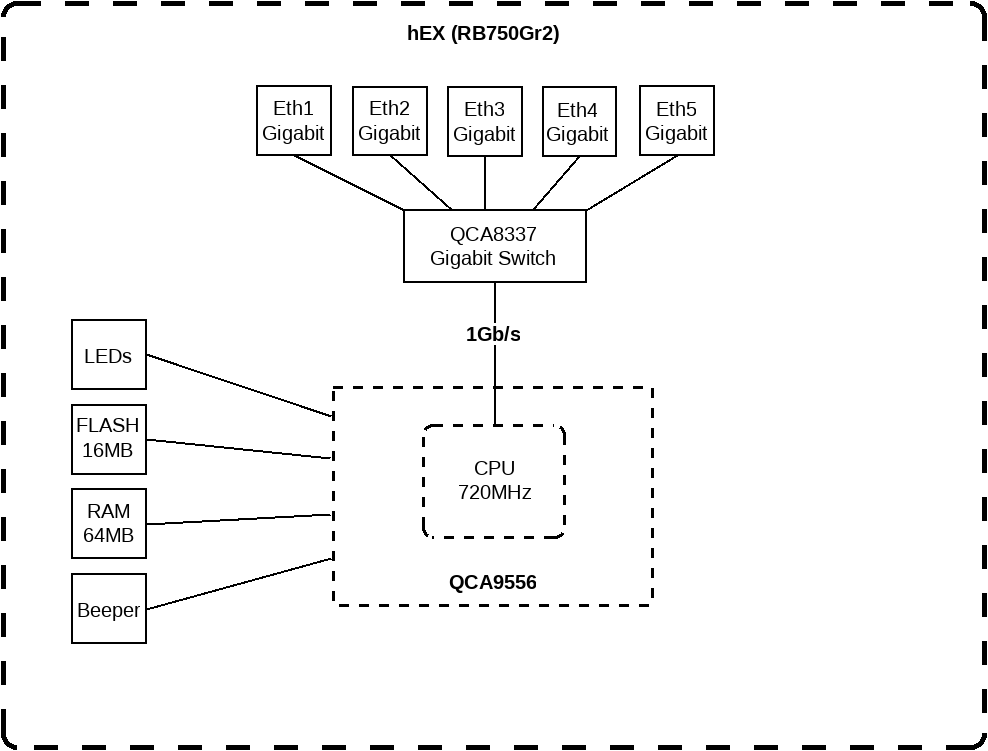

hEX (RB750Gr2) block diagram:

rextended · May 19, 2021, 7:47am

First result of RB750Gr2 on Google…

xvo · May 19, 2021, 7:52am

And the link points to RB750r2 (hEX lite) not RB750Gr2 ("old" hEX)...
