RB912UAG-5HPnD-OUT 13kms test

today received couple of 912 outdoors

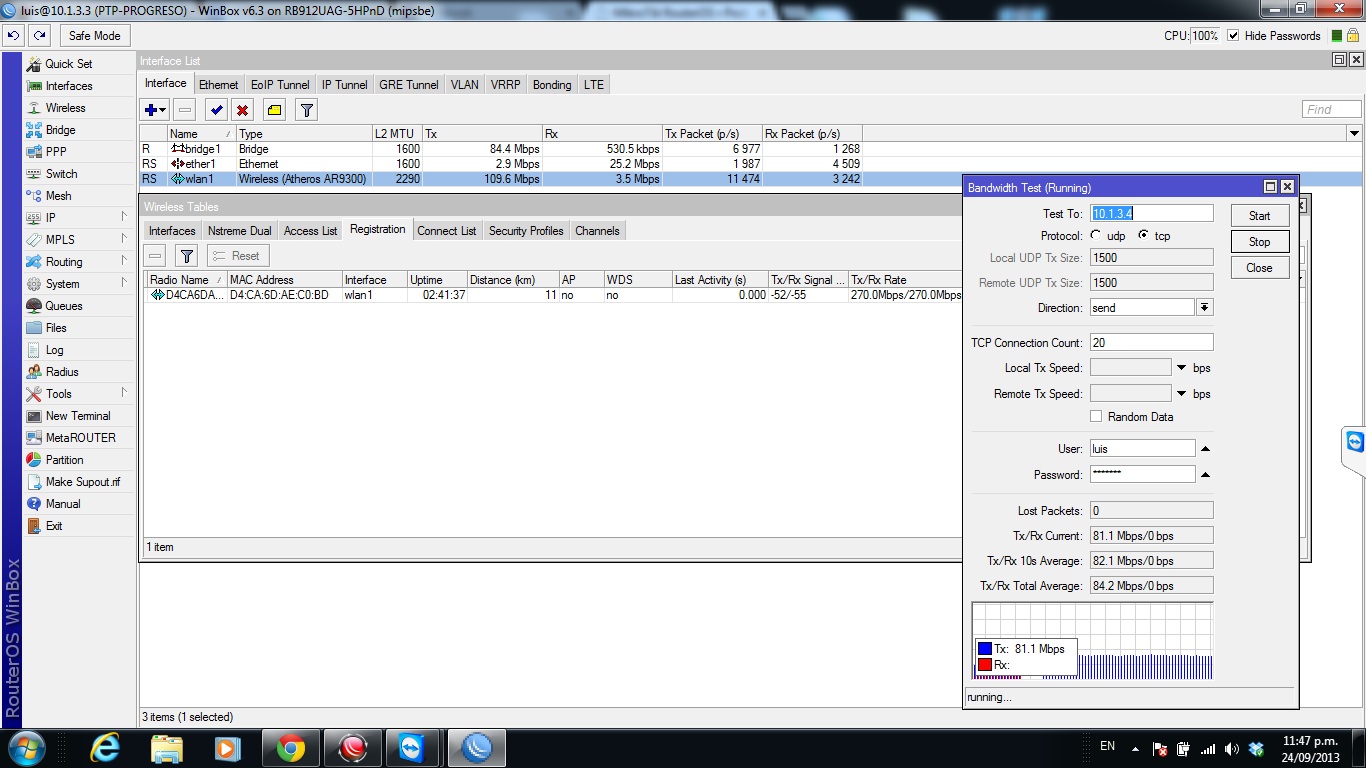

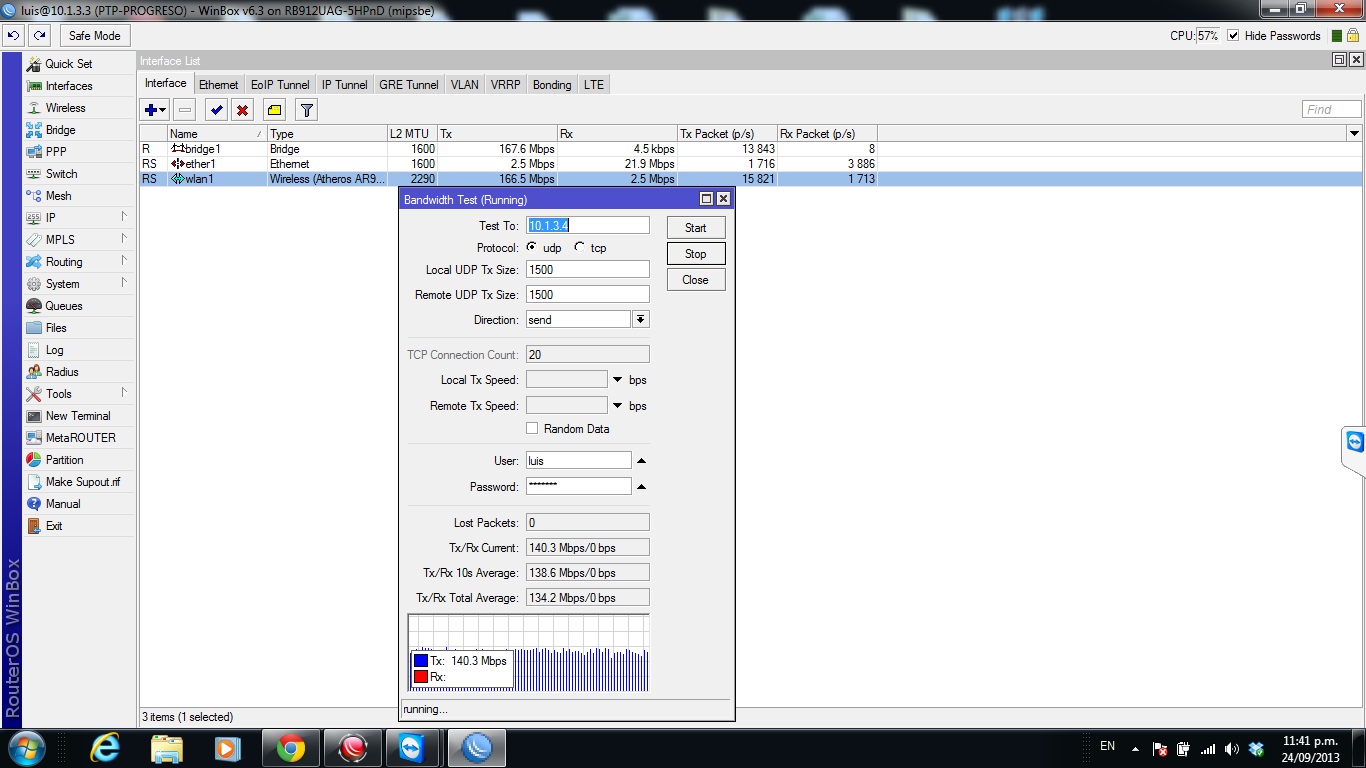

here the results at 12kms.

tomorrow ill post 65kms with 34db rocket dish.

now overclocked

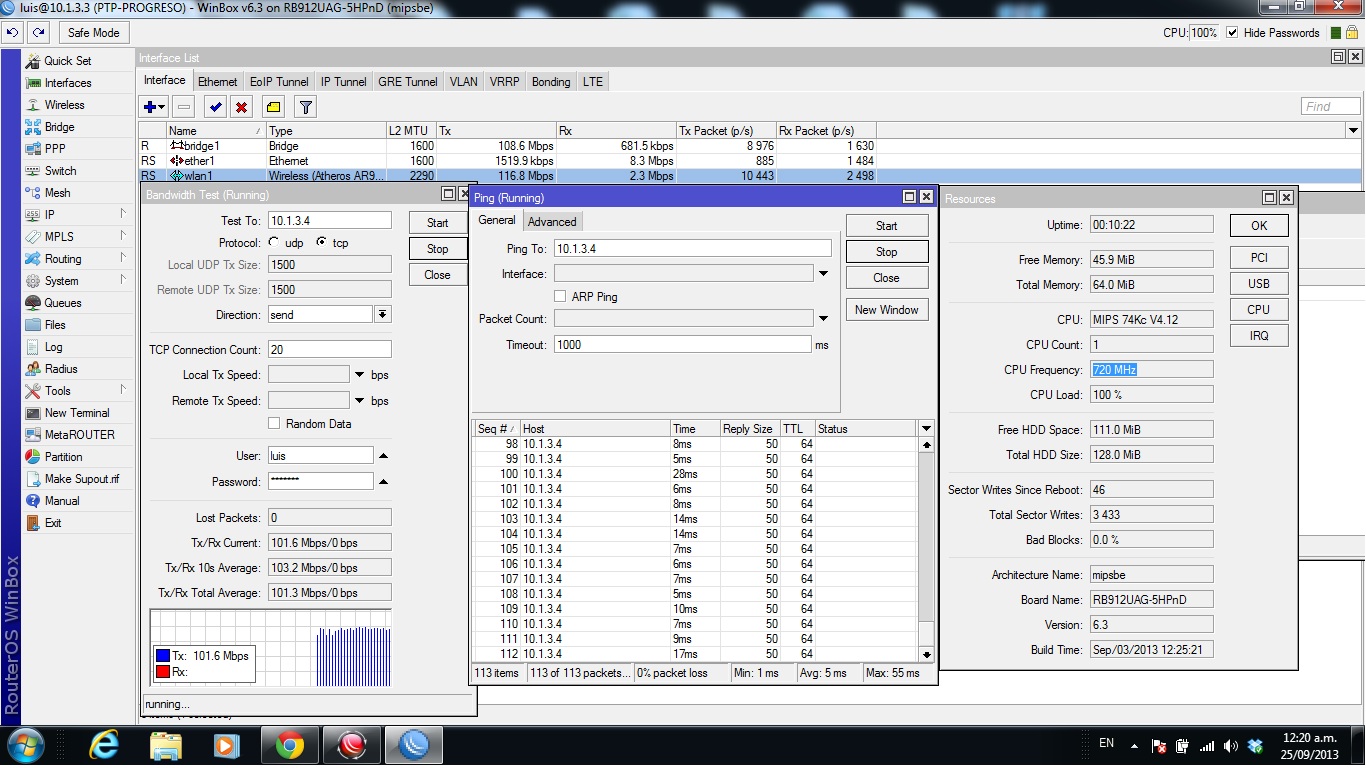

912 test3.jpg

Can i ask was the bandwidth test from RB912UAG-5HPnD to RB912UAG-5HPnD or a device before and beyond the RB912UAG-5HPnD pair?

Look at the picture. This is another speedtester who measures cpu instead of bandwidth.
I love my customers which complain that speed is to low. If I ask back they dont know if they measured Mbit or Mbyte/s :wink:

Test from 912 to 912, no other equipment between them.

You should test as follows: connect on both sides of the link a PC to the Routerboard and run an Iperf session between them.
If you use btest on the Routerboard itself you are, in fact, testing its CPU and not the link.
Doing a TCP bandwith test on the router itself is very demanding for most routers. Running a bandwidth test THROUGH the router is far less CPU intensive and therefore a better test.

As mentioned the best way to bandwidth test is,

Router A (connected to) 912 (PTP) 912 (connected to) Router B

Bandwidth test from RouterA to RouterB and not 912 to 912

Where is that link?

(se for Brasileiro como imagino)

Aonde foi feito este enlace amigo ?
