RB922UAGS-5HPacD slow speed

RouterOS Wireless Networking
1

hello I have an antenna RB922UAGS-5HPacD connected to RF Elements SH-TP-5-30 (sector antenna of 30 º and 15db)

The problem that arises is that if I only connect a cpe (sxt lite ac 5) the maximum speed that facilitates me with ptmp is 30 Mbs.

Currently, between 20 and 30 clients are connected with a rule of 10 Mbs. My question is, is there any way to increase clients’ speed to 20 Mbs without having to eliminate connected clients?

I would like to know how many maximum clients my Hardware supports for clients that are less than 1km away and with a signal Rx / Tx 45db / 60db max.

Is there any other supplier that can give me what I need? an antenna that supports a minimum of 20 users at 20 Mbs with a concurrence of 20%

thank you very much for your comments

2

Show us your wireless registered tab
I need to see how your clients are connecting

3

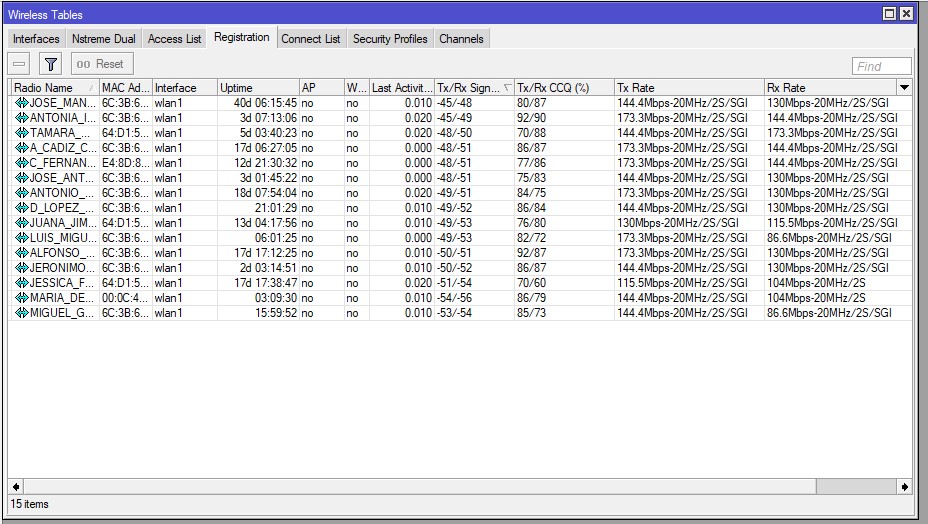

Hello this is my wireless registration



4

looks not bad at all, but it client how has 86 Mbit limits all other if he es transfer data…
just add ccq (click right on the arrow (down) and select ccq)

5

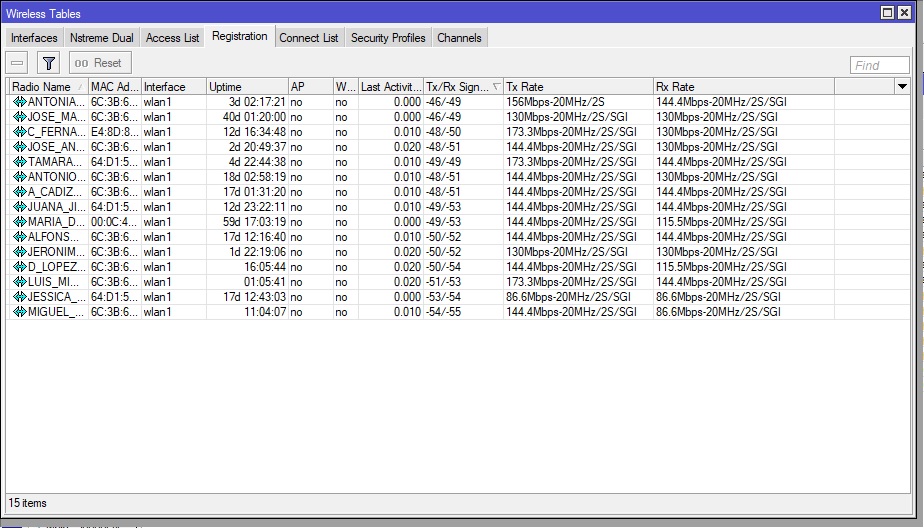

Hello, I enclose the image as you have asked me

6

What client devices you are using?
Sxt Lite5 ac?

7

What protocol? NV2?

8

Yes, and I used NV2

9

Do you deliver voice / sip service ?
If not try 802.11, for higher speeds

10

How to make this change? Is it done in the cpd part?

I currently have clients that have voice / IP but others do not … can I modify it in those that do not … or do they have to be all?

Sorry for so many questions

11

hi
1- make a ping test+ a band test between your AP and clients
2- use another OS version
3- try using 40mhz channel width and see the results
4- adjust data rate and ht mcs to value that give a you a perfect connections

12

In the new update the NV2 has been implemented, going from having a bandwidth of 30 Mbs to about 60 Mbs with the same clients.

13

And what version of the firmware did you install ???

14

6.43.8
