I had set 802.11n only in MT router, My two phones TX(MT side) can’t reach 65M or 72M. and never see 802.11n rate.

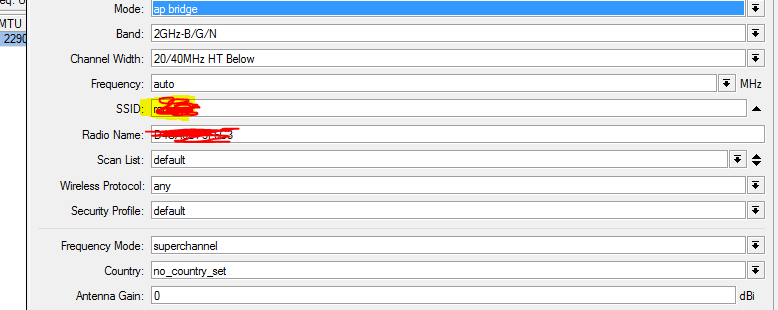

please look at below picture http://1drv.ms/1jvP0VG
please look at below picture http://1drv.ms/1jvPsU5
same phone I connect to UBNT UAP-LR, it’s no problem. TX rate can keep 65M

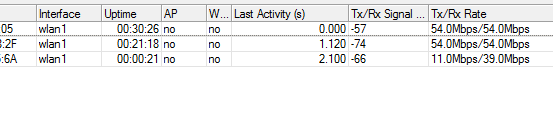

please look at below picture http://1drv.ms/1oi3ppp
I think mikrotik with ROS is professional device, but I can’t find Greenfield relative settings in advanced setting.
any one know how to force 802.11n TX rate in MT side.
or help me find the reason why TX rate Limit by 54Mbps, never appear 65M or 72M
In MikroTik, that setting is referred to as HT Guard Interval and its on the HT tab. If you are still having problems, post your wireless settings.
What is 802.11n “Greenfield” mode?
A device that uses 802.11n High Throughput (HT) mode – also known as Greenfield mode – assumes that there are no 802.11a/b/g stations using the same channel.
802.11a/b/g devices cannot communicate with a Greenfield AP. Instead, their transmissions are likely to collide, causing errors and retransmissions for both parties.
Normally, 802.11 devices share channels by sensing when another device is transmitting, using a back-off timer to wait until the channel is free.
However, because an 802.11a/b/g device cannot tell that a Greenfield device is transmitting, it will go right ahead and transmit.
To avoid this, the 802.11n standard also defines an HT Mixed mode.
A device using HT Mixed mode prepares to transmit in both the old 802.11a/b/g fashion and the new 802.11n fashion.
Specifically, HT Mixed mode devices transmit a legacy format preamble, followed by an HT format preamble.
An HT Mixed mode device must also send legacy format CTS-to-Self or RTS/CTS (Request to Send/Clear to Send) frames before transmitting.
These “protection mechanisms” let nearby 802.11a/b/g devices – including those not connected to the HT Mixed AP – sense when the channel is busy.
Of course, these protection mechanisms significantly reduce an 802.11n WLAN’s throughput. But they are a price that must be paid to coexist peacefully with 802.11a/b/g neighbors.
All this feature are embedded on RouterOS 6
Phones have only one antena (chain)
65-72Mbit if single chanel (20Mhz)
127-145Mbit dual chanel (40Mhz)
devices with 2 (antens) chains
can reach 275-300Mbit
devices with 3 chains
can reach teoreticaly 450Mbit
HT Guard Interval: SGI 400ns, LGI 800ns. it’s no relation with greenfield.
the greenfield is relative frame information. if set to greenfield the frame will not contain 802.11b/g require information. just use 802.11n frame.
fnd me, not connected N draft
Just guess
maybe turning off Frequency Mode: Superchannel can help?
no, am swich superchannel for test.
