RBMetalG-52SHPacn - manual TX-power

Hardware MikroTik hardware general
1

Hi all, please I can´t set tx-power less then 17dB. RBMetalG-52SHPacn, 6.35.4 (firmware 3.31). Any tips please? Thanks

>interface wireless set wlan1 tx-power-mode=all-rates-fixed
>interface wireless set wlan1 tx-power=10

>interface wireless manual-tx-power-table p
0 name="wlan1" manual-tx-powers=1Mbps:17,2Mbps:17,5.5Mbps:17,11Mbps:17,6Mbps:17,

                 9Mbps:17,12Mbps:17,18Mbps:17,24Mbps:17,36Mbps:17,48Mbps:17,
                 54Mbps:17,HT20-0:17,HT20-1:17,HT20-2:17,HT20-3:17,HT20-4:17,
                 HT20-5:17,HT20-6:17,HT20-7:17,HT40-0:17,HT40-1:17,HT40-2:17,
                 HT40-3:17,HT40-4:17,HT40-5:17,HT40-6:17,HT40-7:17
2

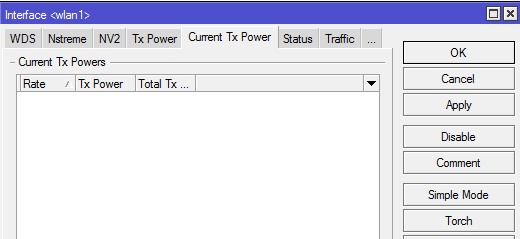

In Winbox is "Current Tx Power tab empty.

[vecino@VecinoAP Sektor 1] > interface wireless print
Flags: X - disabled, R - running
 0  R name="wlan1" mtu=1500 l2mtu=1600 mac-address=E4:8D:8C:F9:A0:D3 arp=enabled interface-type=Atheros AR9888 mode=ap-bridge
      ssid="vecino.s1h.hkfree.org" frequency=5600 band=5ghz-a channel-width=20mhz scan-list=5500-5700 wireless-protocol=nv2
      vlan-mode=no-tag vlan-id=1 wds-mode=disabled wds-default-bridge=none wds-ignore-ssid=no bridge-mode=enabled
      default-authentication=yes default-forwarding=yes default-ap-tx-limit=0 default-client-tx-limit=0 hide-ssid=no
      security-profile=default compression=no


3

The /interface wireless manual-tx-power-table menu does not show the current (effective) tx power. This menu is where you can manually set tx power for each rate separately; these settings are only effective when tx-power-mode is set to manual-table. Please consult this manual page for more details.

Viewing current TX power is not currently supported for AC boards. This is a known issue.

4

Thank you for replay. I understand now.

If I will use tx-power-mode=all-rates-fixed rates-fixed are respected?

5

Yep.
