RBMQS - Terrible Throughput

[kwagga]

Good Day All

I need some advice regarding the MQS device - We are getting very very bad throughput while doing diagnostics and speed tests - I know the unit has a tiny processor, and I’m not expecting 100mbps throughput, but not even getting 10mbps - surely something isn’t right?

Changing bands, frequencies and protocols doesn’t help at all. Also disabled SNMP, DHCP, etc in case it was taxing the tiny CPU.

Product: https://mikrotik.com/product/mqs

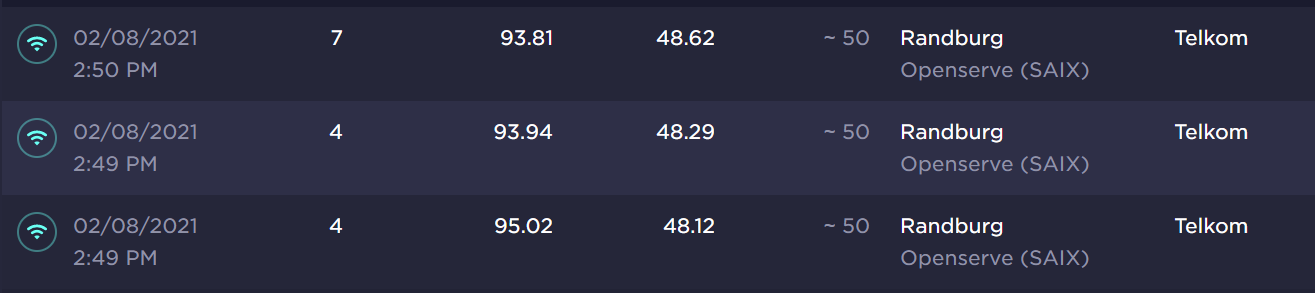

Line Actual Speed:

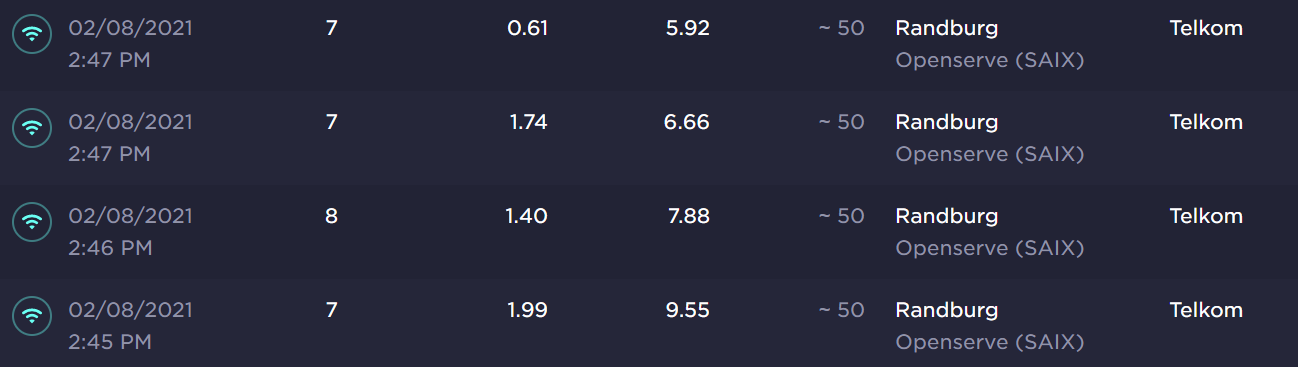

Speed test through MQS connected from WAN ETH to WLAN:

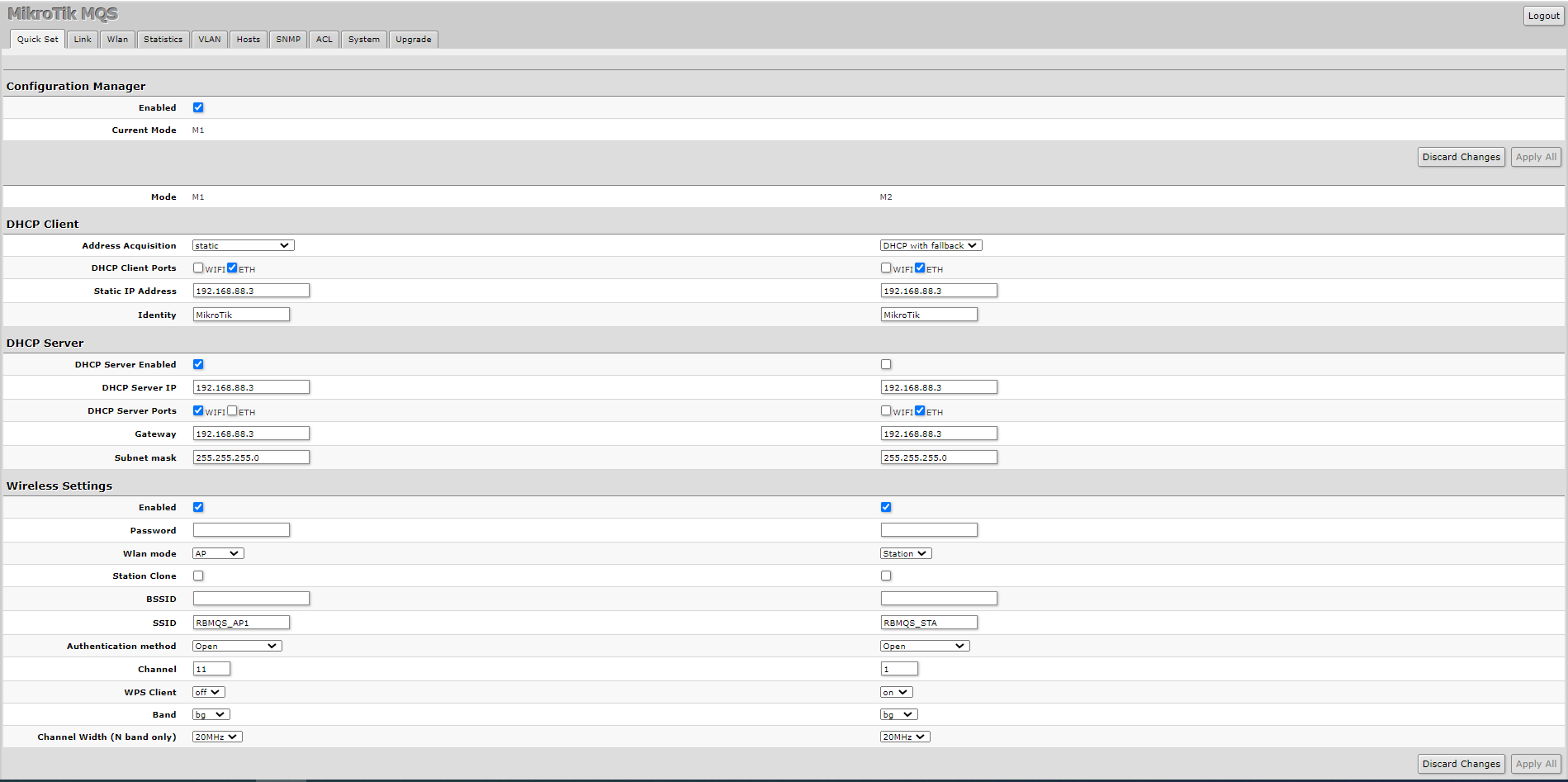

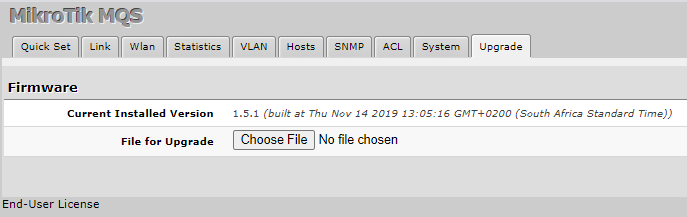

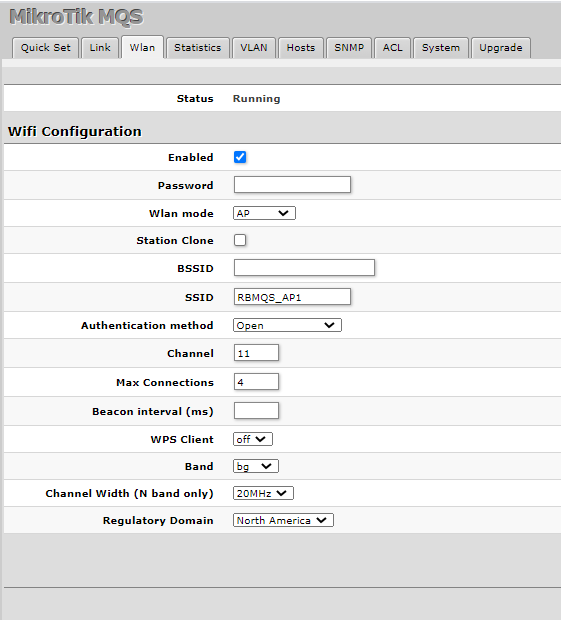

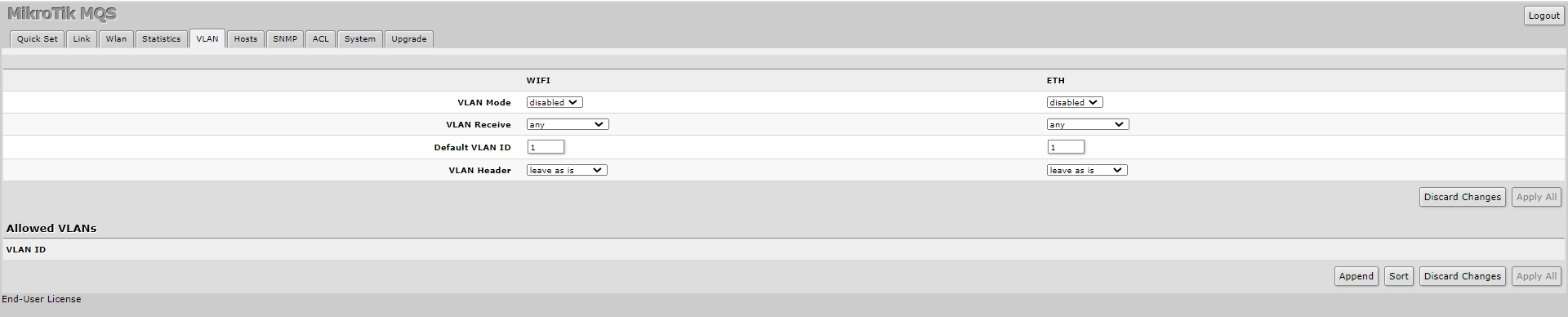

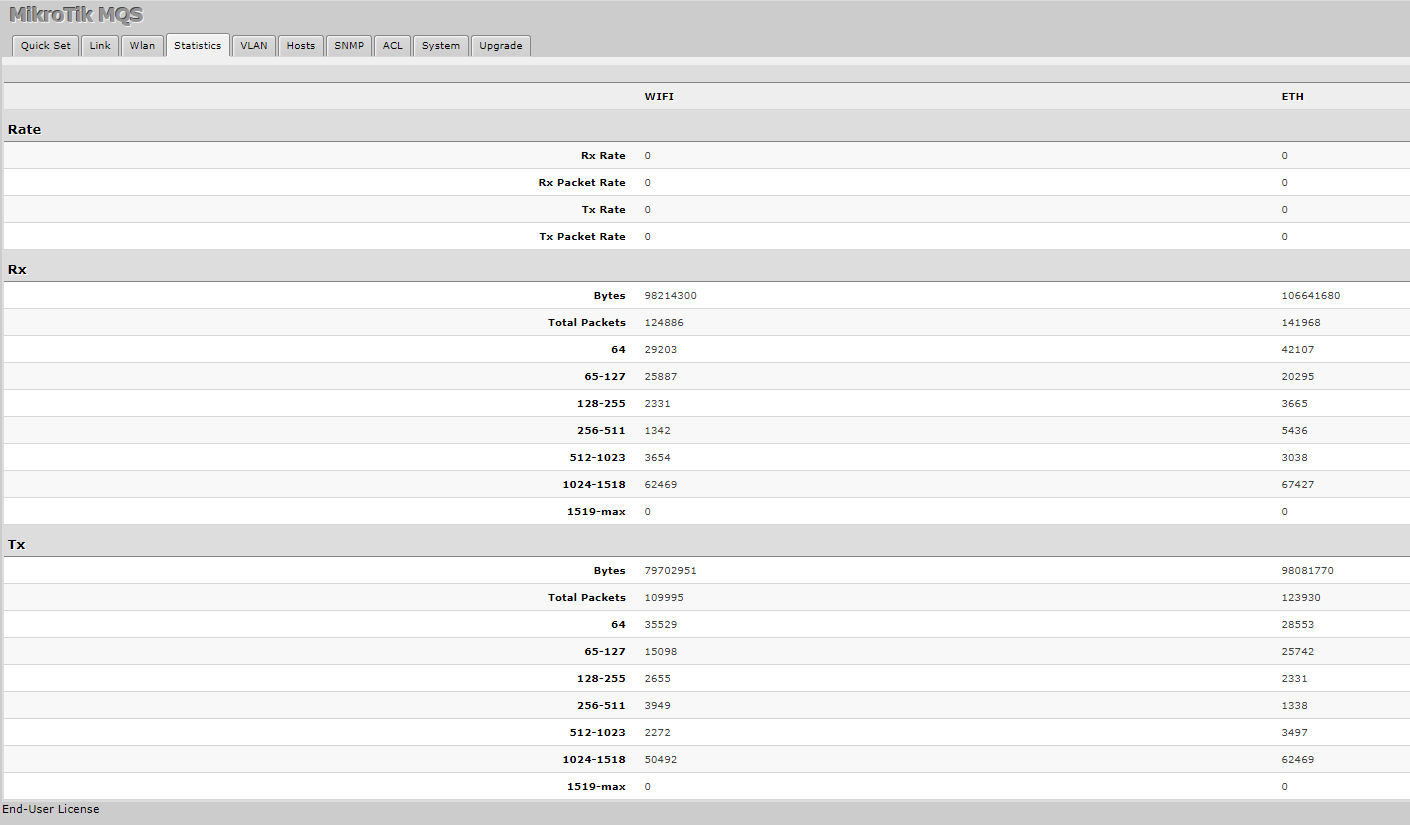

Config Pages:

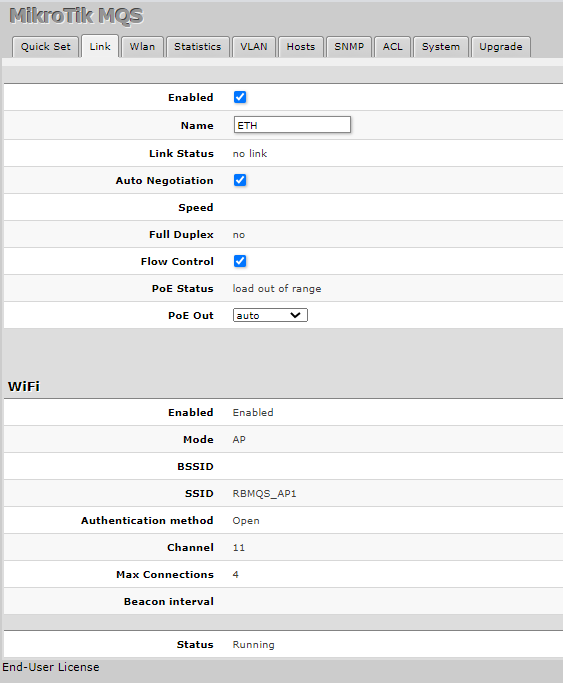

With cable connected, it showed full duplex 100mbps:








Any advise would be greatly appreciated!

Thanks,
Werner

[Rudolfs]

Hello,
MQS’s main purpose is to manage other devices and to do their maintenance if needed. High throughput should not be expected, but in your case, I recommend try changing the band from b/g to b/g/n.
