Hello
Im using a kit RBwAPG-60ad it shows Signal 45 MSC 6 but always 0.0 distance cannot understand why. Should be around 100m .. any idea ?
Greetings
how it is mounted? Reflections?
One wap is mounted outdoor just behind a window, when I look out of from window is is turned almost 90° to the right close to house front. Other item is in a garden monted on a tree. One device has metal casing to give more focus.
I think the view is free. Now I have signal 60 MSC 6 TX 50 RX 96. TX is sometimes center but now right 11.4 degrees, up 19 degrees. What does this tell ?
And is it possible to reach signal 100 ?
What Kind of Windows?
A newer One?
Use something like this to mount it outside!
https://www.bueromarkt-ag.de/saugheber_bruedermannesmann_m99002_tragkraft_70kg,p-m99002,l-google-prd,pd-b2c.html?gclid=CjwKEAjw__fnBRCNpvH8iqy4xl4SJAC4XERPMNHk-6ifZjoKafgEbrOznvbv-DFaqQyuNgwnex7WzBoCXEvw_wcB
It is a newer Thermo window. The holder I think on this side is not a problem. May on other side. Must it be 100% tight ?

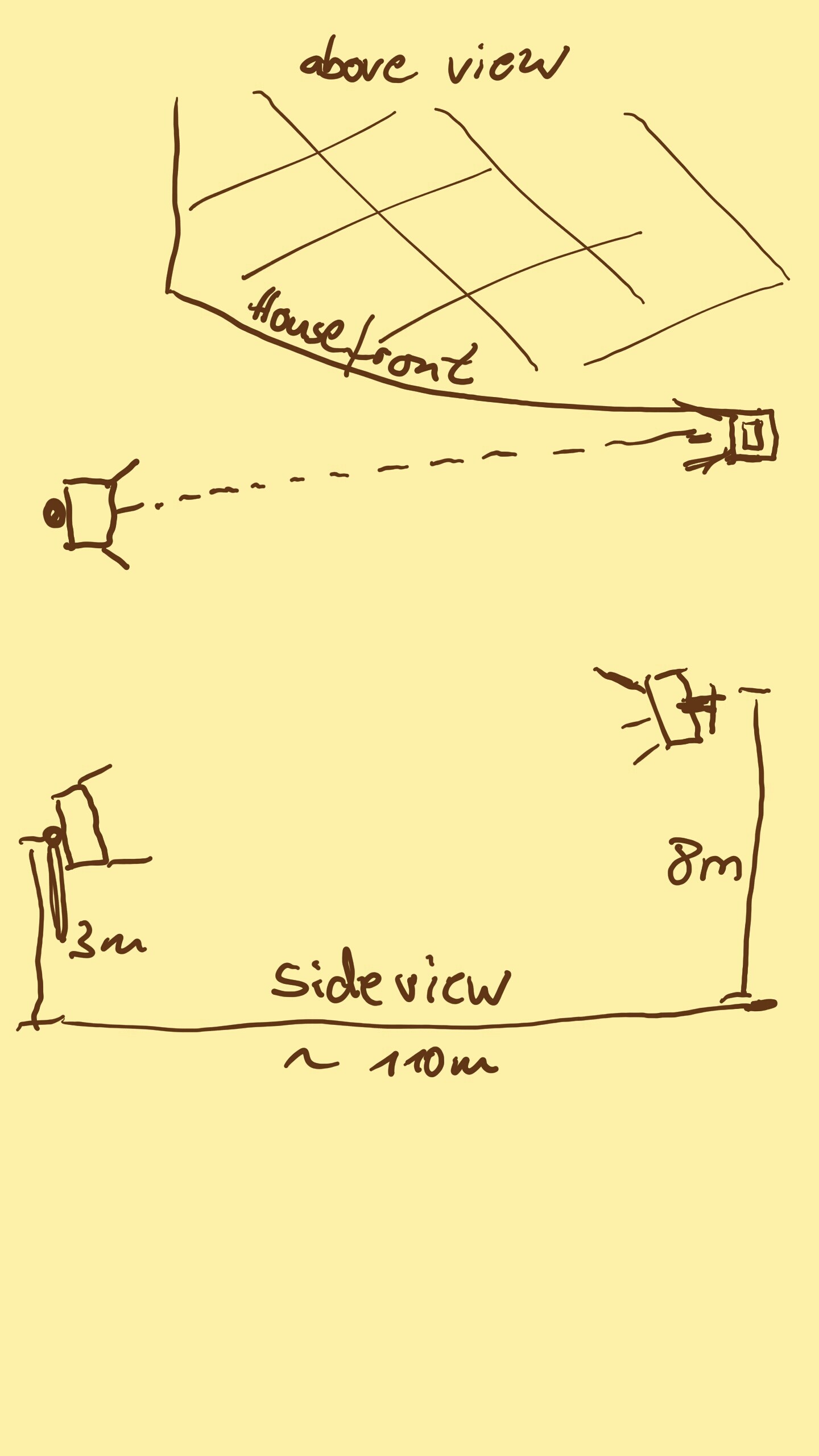

See attached rough topology..
Newer Windows:
The metallic vapor deposition on the inner pane is transparent to the high-energy short-wave solar radiation. If the sun’s rays hit your furniture, walls, ceilings, etc., they absorb the energy from the sun’s rays, store it in between, and then release it as heat radiation. The resulting long-wave thermal radiation is largely reflected by the metallic vapor deposition. That Metallic vaporization lets in the light and warmth of the sun’s rays, but not out again.
This is Why you need to Mount the WAPs Outdoor, and not behind a window
Hello
I know thia window issue, thats why I wrote outdoor in this sentence : “one wap is mounted outdoor just behind a window”
Bothe wap are installed outdoor, nothing in between.
Ok i Missed that.
Do you Use the latest ROS?
is there a reflective surface ain the near?
One device has metal casing to give more focus.
So, have you tried without the metal casing?
No did not tried w/o the metal casing. Btw this casing should make a 60° sector focus. I thought it is an improvement.
RoS is 6.44.3
Reflection can be on the item mounted next to the window. This has at the moment no metal casing so I assume a wider range of transmission. May there is a reflection from house front.
