RBwAPGR-5HacD2HnD - USB 2.0 and 3.0 on miniPCIe connector

Hardware MikroTik hardware general
1

Dear all,
CPU model in RBwAPGR-5HacD2HnD is a IPQ-4018 SOC, that comes (Qualcomm specifications) with USB 2.0 and USB 3.0 lines/interfaces.

Looking at the blockdiagram of RBwAPGR-5HacD2HnD, the USB bus lines that is connected to the miniPCIe connector, is not marked like “USB 2.0” or "USB 2.0/3.0, it is only marked as “USB LINES”

Question: the miniPCIe connector, is hardware connected to the IPQ4018 SOC USB 2.0 and 3.0 interfaces (both) or is only connected to the USB 2.0 interface?
Should be nice to test the RBwAPGR-5HacD2HnD with a LTE/5G modem that has USB 3.0 interface.
Thank You
Roberto

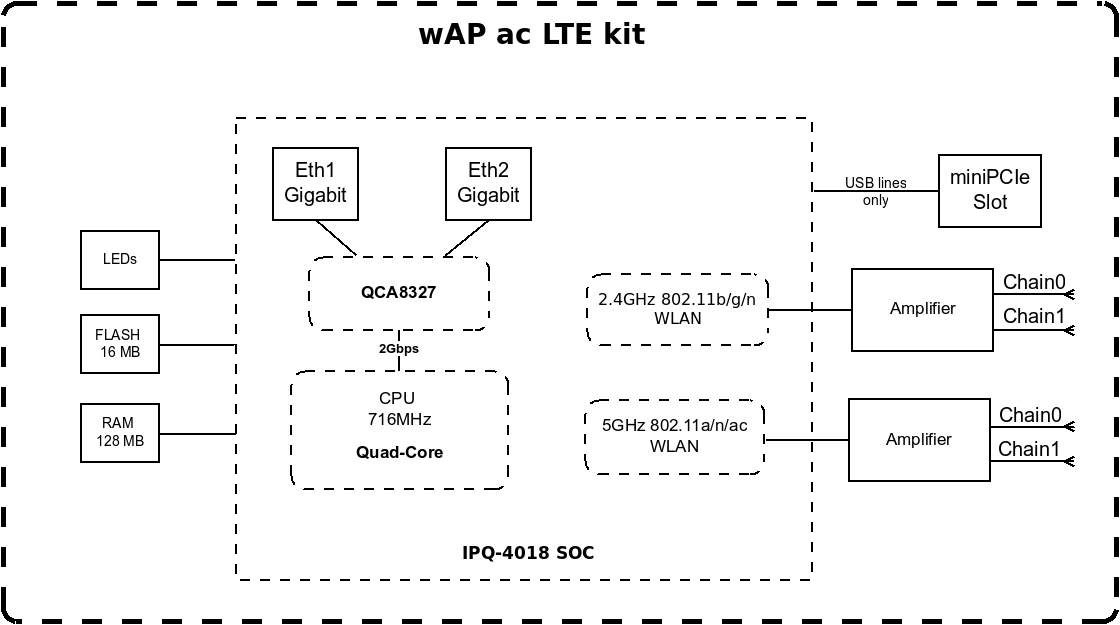

RBwAPGR-5HacD2HnD BLOCK DIAGRAM

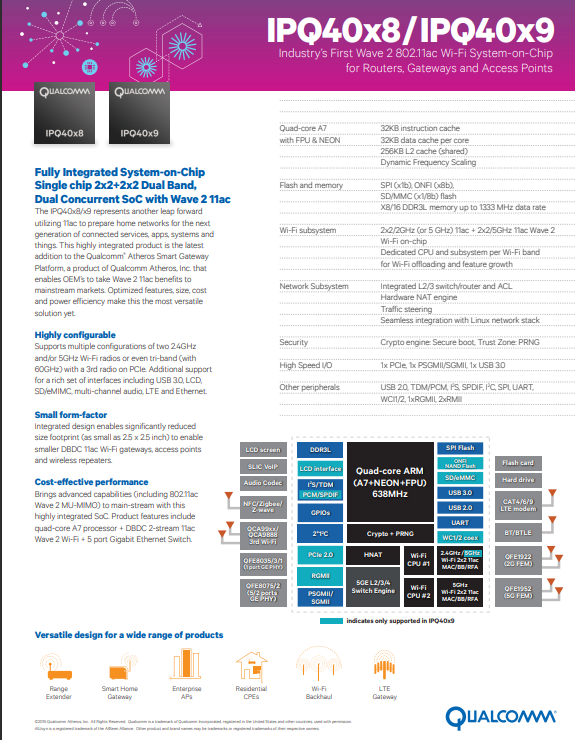

PQ4018 SPECIFICATIONS
ipq40x8ipq40x9-productbrief.pdf (1000 KB)

2

miniPCIe on the wAPacR certainly does USB 3.0. Used Telit LM960s and Sierra MC7455s in them for a while.

I’d like to say I’ve used a USB 2.0 modem in the wAPacR, but don’t quote me. Now the most modern 5G modem are generally M.2 slot. But these are great devices. Wi-Fi works okay as is, but draw back is the newest drivers don’t fit in the limited disk.

3

Thank You for information.

Roberto

4

How it is possible as Mini PCI-E standard don’t include USB 3.0 Lines. I’m going to connect now 5G card to WAPR and I’m trying to find proper adapter, but all are with USB 3.0. I can use DYI solution but still need information which pins are for USB 3.0 in Mikrotik’s Mini PCIe. Than You
