Request time out and only few operating frequencies

RouterOS Wireless Networking
1

Dear Frds,

i have got a PTP wireless link having RB Metal 5SHPn at both end with 27 dbi grid antenna.

issue:

1) only frequencies in dark bold font ( Pic attached of Access point ) are workable, if i select any other frequency other then the bold font the link do not work, how ever i have selected superchannel as frequency mode in both radios

2) when i see wireless table it shows a separate WDS name while the default WDS name is = wds1 (Pic attached of Access Point)

(3) when i ping the station from Access point then there numerous timeout to the station ( Pic attached)

IP address of Access Point = 192.168.XXX.56

Ip address of Station is = 192.168.XXX.57

i m just not able to understand why it is happening, did i configure it wrong, kindly help, its urgent

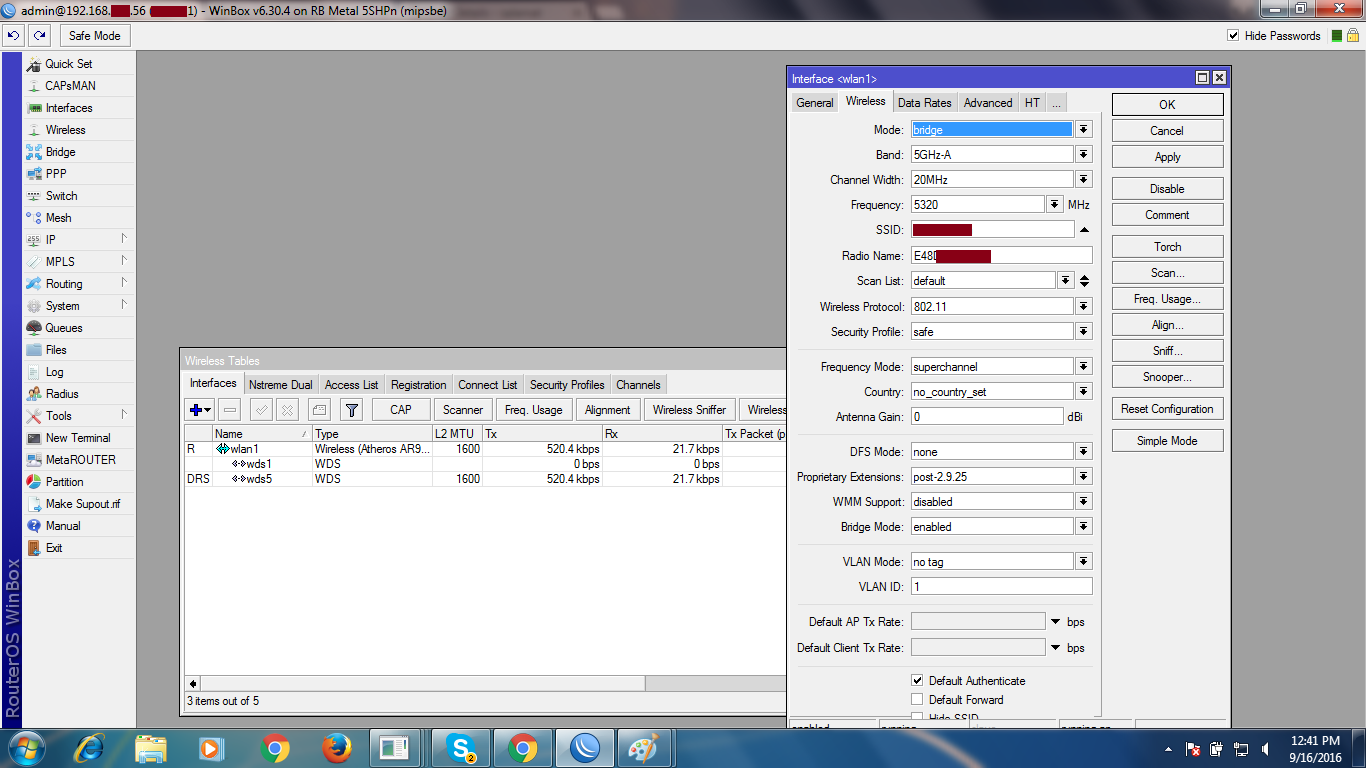

wireless settings Access point-2.png

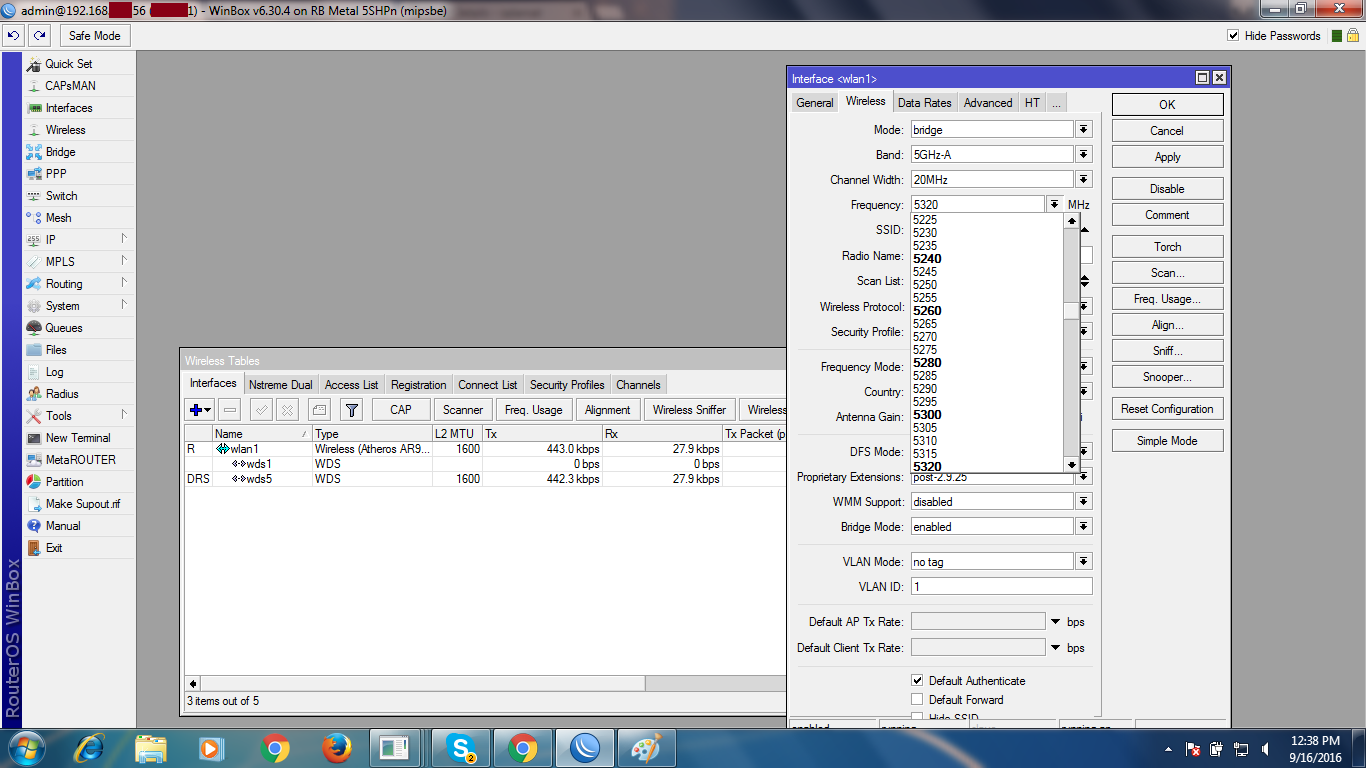

wireless settings Access point-1.png

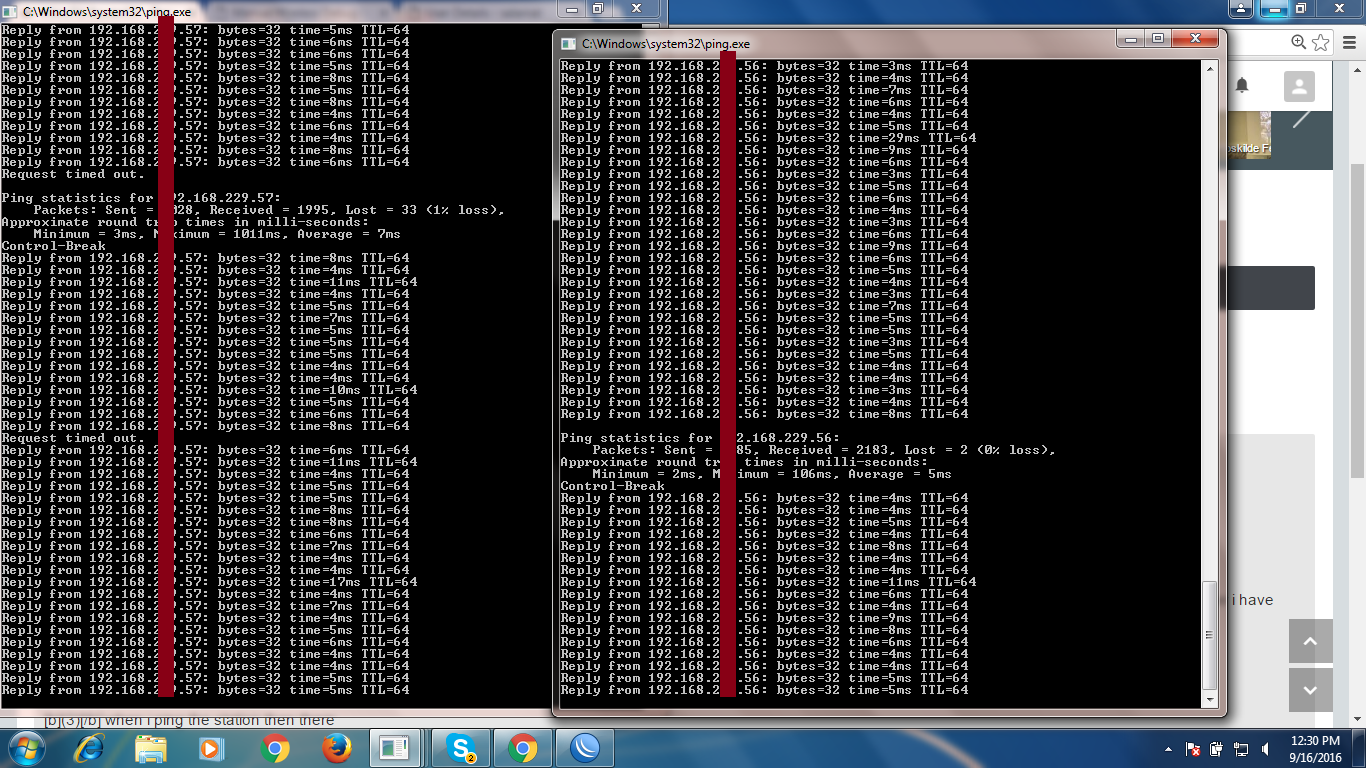

ping for access point and station.png

2

plz help

3

Why you think that is necessary to hide 229 from the address? Can you check signal tab of both ends after at least 5 minutes of connection and at least 10mbits of sustained both way simultaneous traffic?
Can you check long-term spectral scan on both ends?

4

The bold are the usable channels.

Why are you using 802.11a on hardware that supports N?
It has much better range and is more robust.
