I am working on RB1100AHx2 version 6.44.2

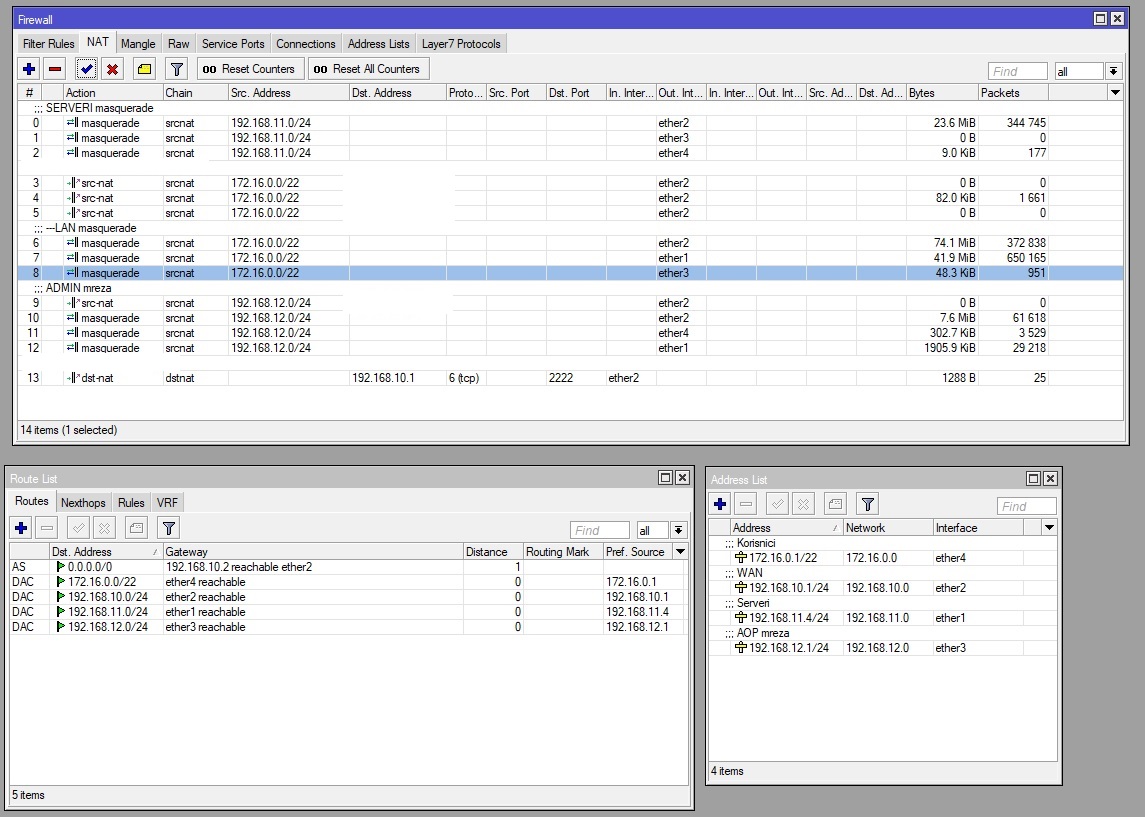

Network information is in picture
Now the problem I have is that I can’t make my networks communicate with each other without NAT rules.
As soon as I disable NAT rule (lets say ether3 > ether4) I can’t access those PC’s via windows network, like \computer1\c$
I was thinking that all I need is new route in Route List and I tried brute-forcing my way through but that didn’t workout,
and now all my local traffic is “hidden” behind NAT rules and I don’t want that to be the case.
Side question, could I also dstnat traffic towards WAN instead srcnat every single network towards WAN ? We also have static public IP.
I didn’t include firewall rules in picture but there are no firewall rules that block traffic between local networks.
Side question, could I also dstnat traffic towards WAN instead srcnat every single network towards WAN ? We also have static public IP.
You can do masq over the wan interface, so that you don’t have to list every network behind it. You can’t do dst-nat 'cause your changing the src not the dst
The only scenario i can think of (excepting some filter rules in firewall) to match what you say, is if those PCs have a default gateway other than the mikrotik.
Windows machines by default treat anything but their own LAN subnet as evil internet. So when you try to access \winmachine\c$ on different subnet, it’s very possible that it’s winmachine’s firewall blocking the connection. If you perform src-nat (masquerade), then all connections from other subnets will appear to originate from router itself, thus allowing winmachine’s firewall not to interfere. And this principle applies to just any service on windows machine.
