I hope I am placing this question under the correct section.

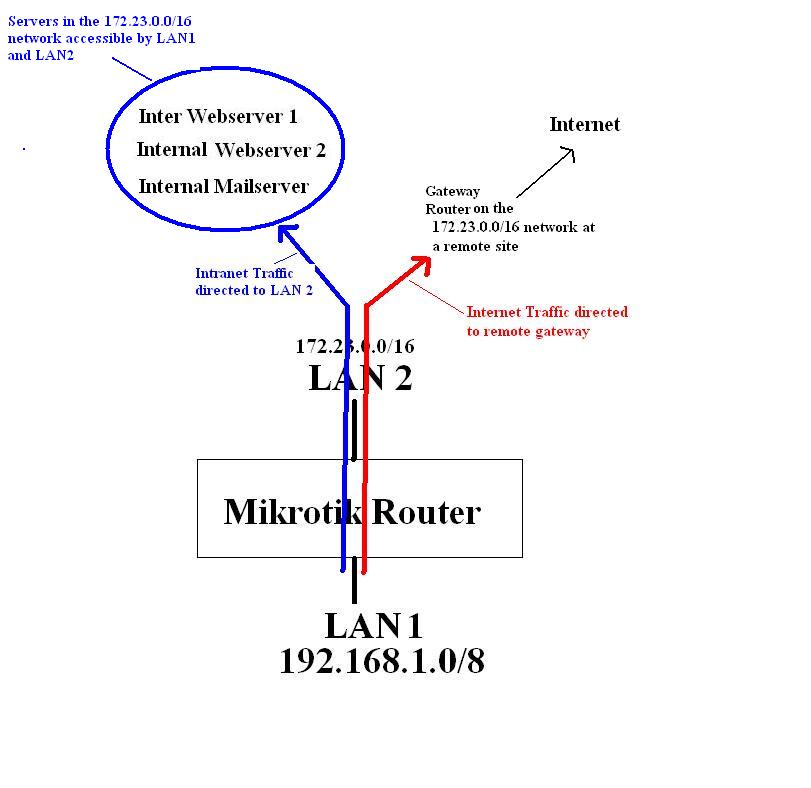

Please see pic below. How would I configure the Mikrotik router to only route internet traffic to a remote gateway?
I was thinking along the line of a ! rule in routing terms.
If the destination is not 172.23.0.0/16 then route to remote gateway.
Off course I have no idea how to make that work on Mikrotik.
Your help will be greatly appreciated.
Are all the internal servers assigned 172.23.x.x ip addresses? If not, specify how they are connected to LAN2 on the router you show in the pic.
Hi
Yes all the servers are part of the 172.23.x.x network.

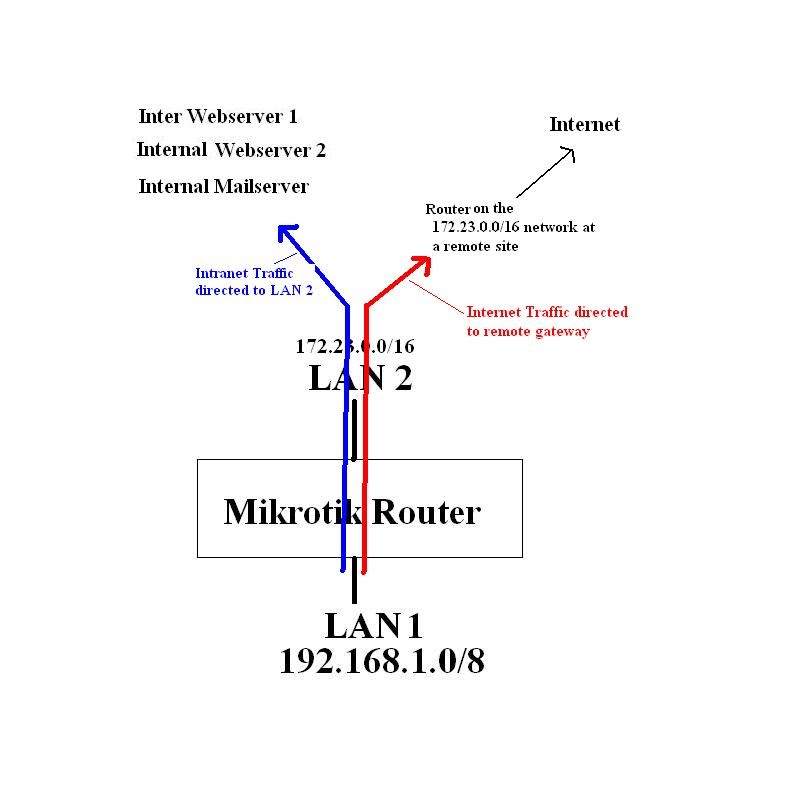

I’ve included a updated pic on the configuration.
Thank You
Then you should be able to access them now from the 192.168.x.x net.
BTW, that should be 192.168.1.x/16. Only 192.168.x.x are localnet ips.
