Router Board does not boot up after OS upgrade (Solved)

RouterOS General
1

Hi Guys.


I have a new RB 433 UAH that i upgrade the OS and after that it does not boot up any more.

Try with POE and different power supply to make sure power was not the problem.


The RB come up the light shine on the network interfaces but no beep sound come up and then the LED LD504 come on and that is it nothing happen after it.

I also try serial port and nothing :frowning:


I being reading for 2 days and i don’t see any way that i can recover this hardware.

Please i really want get this RB up and running .

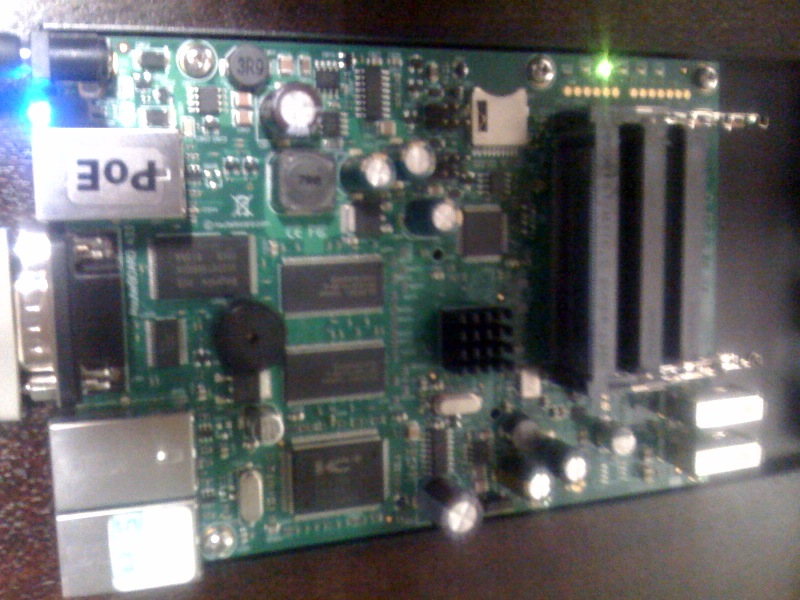

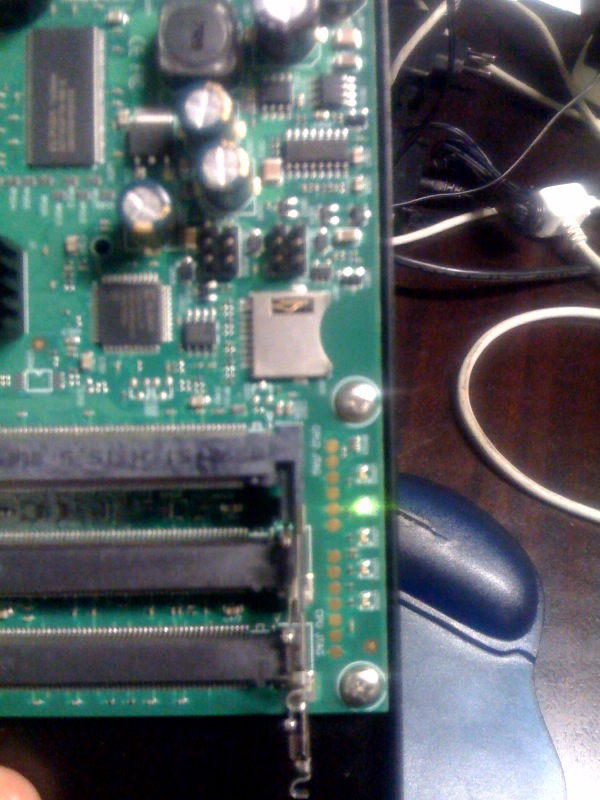

This is some pic of the board when is stuck.
photo 2.jpg

2

With serial connection you should be able to reinstall OS with netinstall
http://wiki.mikrotik.com/wiki/Netinstall

3

Hi There.


Thanks very much for your input , but i have try the serial port and nothing happen , really.

I even try the same link that you have post me.

I dont know what to do any more.

But thanks one more time for your help.


Daniel

4

Was the board working OK before you tried to upgrade?

5

Hi There.


Yes it was , no problem , i just want to keep it up to date and i end up on this problem.


Thanks

6

I would suggest you should use netinstall to reinstall previous OS and see does unit boot up, and what file did you use for upgrade was it mipsbe version for rb400 series.

7

Hey Thanks to get back to me.


Yes i did try the 400 series.


How can i do a net install if the router board does not respond on the serial port??


Thanks

8

What method did you use to upgrade - serial lead + netinstall , or winbox

9

Hi there I did use winbox to do this upgrade.

Thanks

10

Hi there.


Does anyone know how to restore this router board ??? Or what that LED on means?

Thanks

Daniel

11

It’s hard to see why an OS upgrade would affect the bootloader.

Can you show a screenshot of your settings when you try to access the board via its serial port?

12

Hey Fewi .
Sure I will do that for you.
I get the screens shots and post it here for you thanks

Daniel

13

Was this your first time upgrading with winbox, did you allow enough time for new OS to install you didn’t by any chance remove the power to the board during the upgrade process which can take about 4-5mins, if you did then use a serial cable and use netinstall to recover by reinstalling the OS

14

Hey Guys.


I just would like to say thanks to all that help me and the community.


I manage to get the RB back in action and now is 100%.


Thanks to all :smiley:

15

Hi!
I have the same problem… How do you manage to resolve the problem?

Thx

16

Hi There.

I fix it using the serial cable , my update did not went well so i got this manual.

http://wiki.mikrotik.com/wiki/Manual:System/Serial_Console

Went into a cabling company and they did the cable for me with this specifications as the manual say then i use this tutorial.

Net install
http://wiki.mikrotik.com/wiki/Netinstall

All was good , very simple ., please let me know if you need any help.

Thanks

17

Please i have similar issue with my RBSXTLite5ac, It does not boot up again after i did an upgrade. It only shows led light and nothing happens. please what do i do?
