CCR2116-12GS-4GS+
v7.1.5
Hi,
Can someone tell me if the BGP Template behaviour below is normal or not.
Disabling and enabling BGP templates puts them in an “Invalid” state.
The BGP connections drop when I disable the templates and re-establish when I enable the templates again but the state remains invalid.
The only way to get the templates in a normal state again is to create new ones.
It makes no difference if a template is being used or not, simply disabling it makes it invalid when enabled again.
I created a new one and did not attach it to any of the connections and the result was the same.
The same behaviour occurred on v7.1.4 and is still there after I upgraded to v7.1.5.

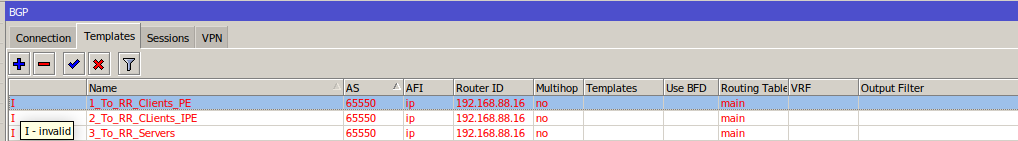

The GUI shows that the issue but the CLI does not.
[xxxx@core2116-16] > routing/bgp/template/print detail
Flags: * - default; X - disabled, I - inactive
0 name=“1_To_RR_Clients_PE” routing-table=main router-id=192.168.88.16 as=65550 nexthop-choice=force-self multihop=no address-families=ip
output.default-originate=if-installed
input.affinity=main
1 name=“2_To_RR_CLients_IPE” routing-table=main router-id=192.168.88.16 as=65550 nexthop-choice=force-self multihop=no address-families=ip
output.default-originate=never
input.affinity=main
2 name=“3_To_RR_Servers” routing-table=main router-id=192.168.88.16 as=65550 nexthop-choice=force-self multihop=no address-families=ip
output.default-originate=never
input.affinity=main
