My Internet provider recently upgraded my package and I realized my Wifi for most devices are Stopping around 30MB Downloads.
I have a new Google Nexus Phone and I see consistent 150MB Downloads, But on my Older Ipad2 (802.11N) and my New Laptop(Windows 10-Intel Dual Band Wireless-AC 7265) I stop at almost exactly 30MB download.
If I connect to the HAP AC gigabit port I also get 150MB downloads.
I can be 2 feet or 200 feet from AP same with the laptop.
I tried the 2.4ghz and 5ghz range and tried Auto and setting a specific channel/Frequency, Non seems to help, changing from auto actually made it slower.
The issue must be a setting that is making the 802.11N slower, or the AC with non android slower?
As far as the iPad2 being slow, it is a single stream 802.11 N with max wireless rate of 65mbps. You will only realize 1/2 to 1/3 of the wireless rate, so it is at its limit.
With the phone capable of reaching 150mbps wirelessly, I suspect the laptop has a driver issue or a settings error. What data rates do you see for the laptop?
I’ve done some speed tests with my new HAP AC against a 2 year old MacBook Pro. The 5GHz interface is set to Germany, channel 116, WMM on, Antenna Gain 2db. DIstance approx. 2 meters. Running v6.37rc32 with no problems.
iperf3 server runs on a QNAP Intel NAS, when using a LAN cable I get around 980 MBit/s.
Is there anything to get the HAP AC wireless to speed up a little? CPU is not nearly maxed out during my tests. I also bought a WAP AC (loving both my new toys which gives me nearly the same results as the HAP. Having used the WAP / HAP for the last weeks with mainly Apple devices, absolutely stable btw. Great job, Mikrotik!
I know it’s never fair to compare against a consumer device, but the AVM 1750e also uses Atheros hardware, does not have an external antenna, so the hardware might be similar.
Model RouterBOARD 962UiGS-5HacT2HnT
Board Name hAP ac
Version 6.36.3 (stable)
Build Time Sep/05/2016 08:09:03
To 2frogs I was playing with settings on the client side. There was a setting for my wifi driver and i started using iperf to test to a hard gigabit wired server. The setting has changed from HT Mode-VHT to HT Mode=HT Mode. I also tried to disable and that made it worse. With it set to HT Mode=HT Mode I am now getting about 100MB up/down per iperf.
ok, so I upgraded the firmware and this seems to have made a big difference. I was then able to set my HT mode back to VHT and connect. It seems that although I thought I was connected with AC-5GHZ I was really at N. I changed a few other things on client and AP side but no major changes were noticed.
IIf anyone knows any other settings to improve AC performance thanks in advance.

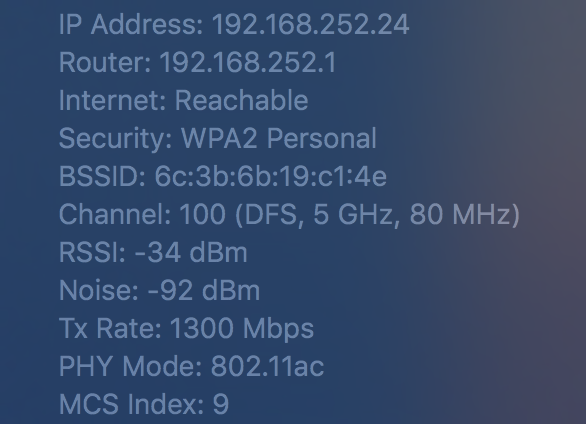

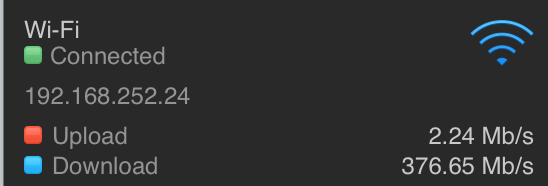

The default config for the wireless should be pretty good. The only thing I changed on my hAP AC is locking the channel on 100 and enabling WMM. I get a consistent 1300mbps link, and smooth 350~375mbps throughput.
Thanks! Locking down to a good channel was key. So, basically what was happening, the cable modem I was sent from comcast has wifi built in. I had wifi radio “disabled” aka the router was in “bridge” mode. What I didn’t know is if you don’t log onto the comcast site and disable the “xfinity hotspot” option BEFORE then it’s still broadcasting and Wifi isn’t really disabled. Since I had two AC/5GHZ routers within a few feet of each other the Mikrotik grabbed the best channel available which was terrible. So I got my own cable modem with no wifi, grabbed a wifi analyzer and figured the best available channel, and Boom. 4 times faster connection and it exceeds my upstream cable modem MAX so I’m golden.
Thanks everyone for responding.
To summarize, the two things that helped me the most was upgrading the firmware, and removing interference/picking the best channel available.
Perfect! I used a WiSpy to scan and visualize my 5GHz range. after about 2 hours, channel 100 (5500Mhz ~ 5580MHz) was dead silent. The perfect choice for mine. Locking it down also helps the AP start up faster, since it doesn’t have to scan for a channel. The only thing it needs to do is check for Radar.
I tried all the settings. Also following the list here: https://en.wikipedia.org/wiki/List_of_WLAN_channels
Always when I set 80MHz, stands unsupportet configuraton (Country: switzerland with CAPsMAN). So I ask for the configuration to see what I do wrong?

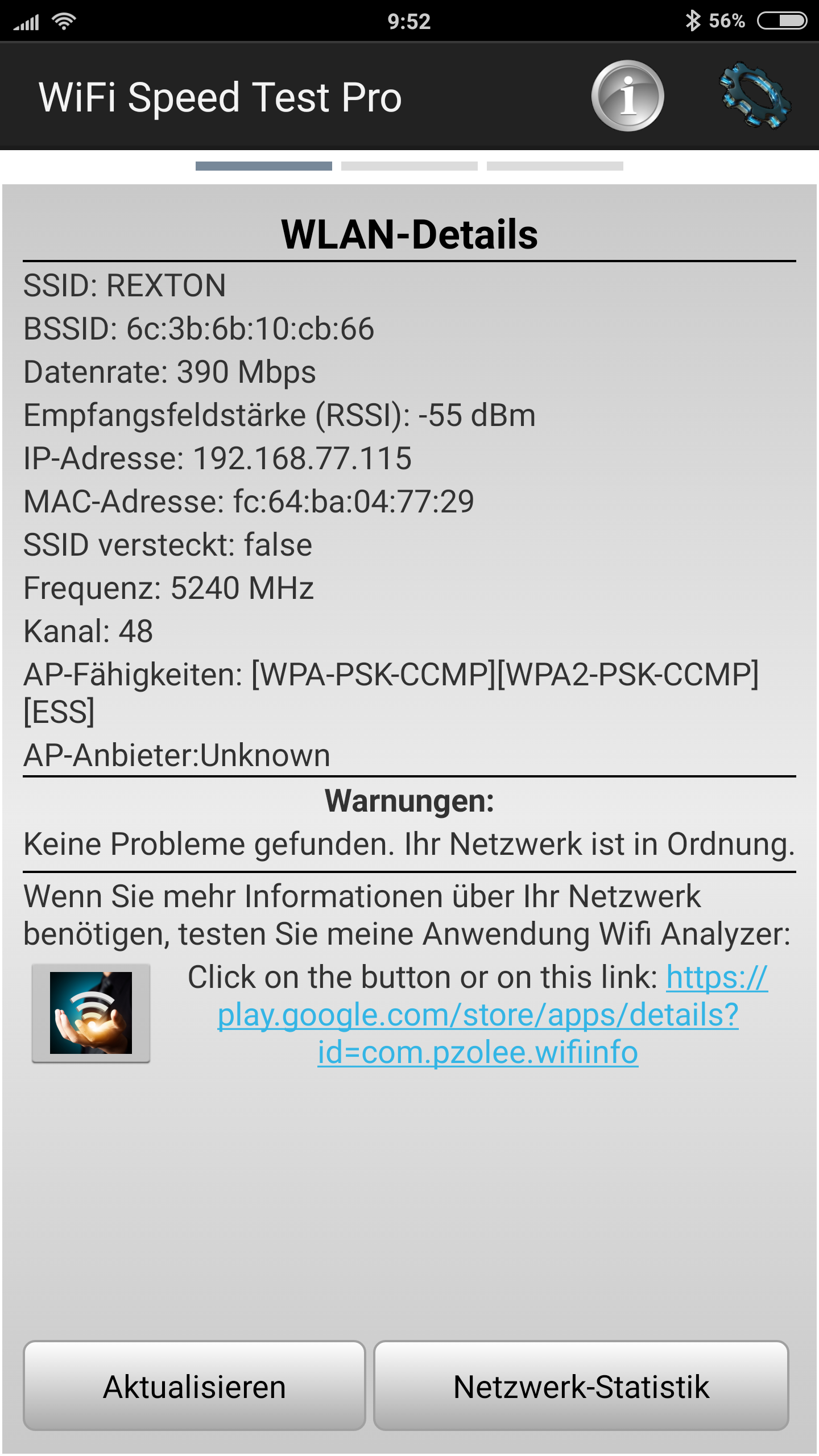

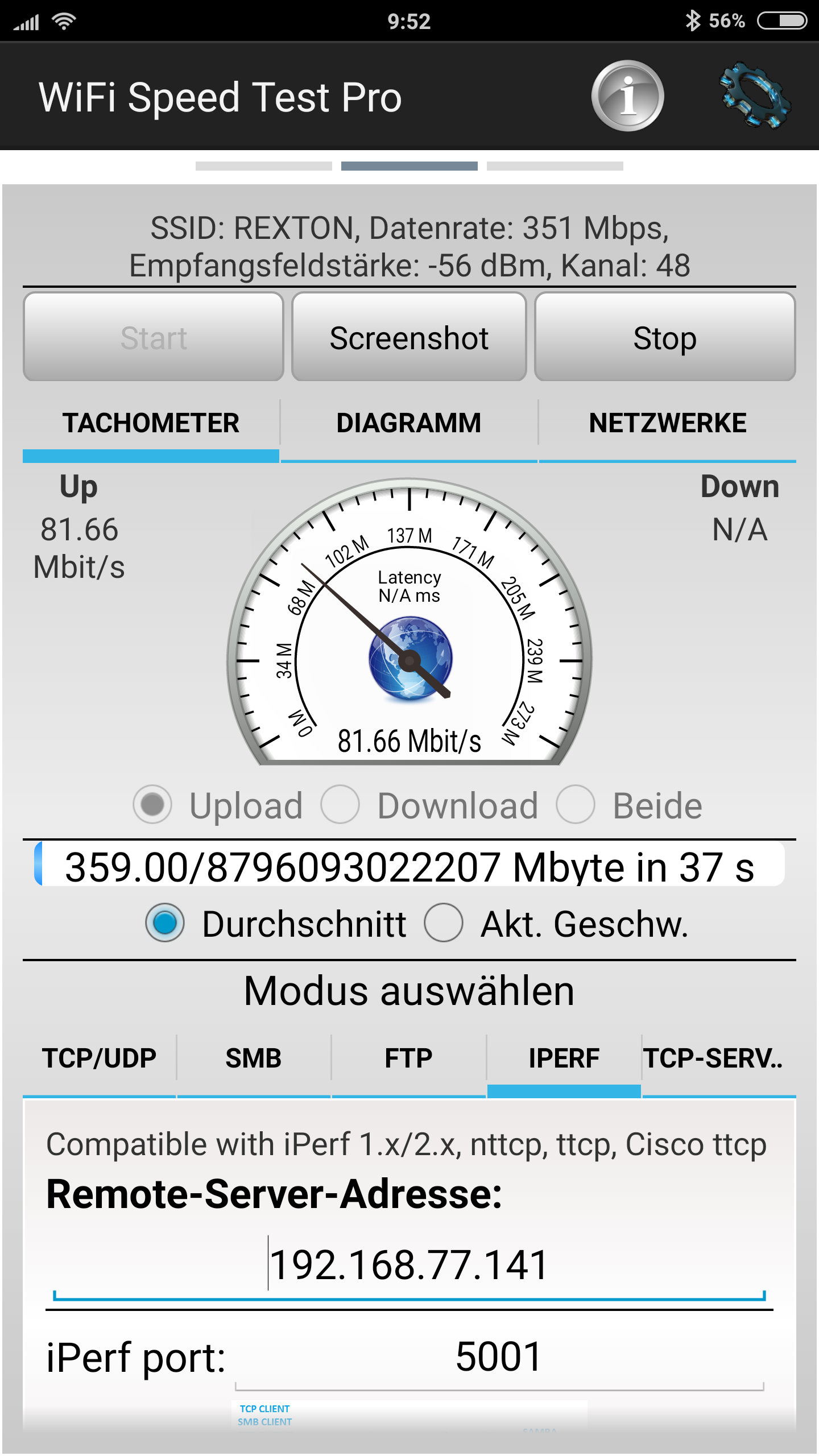

I have already tried various (with CAPsMAN and without CAPsMAN), but I never get a link higher than the screenshot.
Can someone post a working configuration, with consistent 1300mbps link? The configuration can also be without CAPSMAN, If possible with country Switzerland.
I’m not too much into mac but as far I know Mac Air doesn’t have triple chain wifi, I had new Mac Air yesterday at work and it showed as dual chain in device manager, also connected 867mbit
which gives me nearly the same results as the HAP. Having used the WAP / HAP for the last weeks with mainly Apple devices, absolutely stable btw. Great job, Mikrotik!
