Hi Everyone,
I've managed to finally get it working , Wireless Interface is Company Side, Switch Interface 1,2,3,4 is Local Side .
My routes : /ip/route/print
Flags: X - disabled, A - active, D - dynamic,
C - connect, S - static, r - rip, b - bgp, o - ospf, m - mme,
B - blackhole, U - unreachable, P - prohibit
DST-ADDRESS PREF-SRC GATEWAY DISTANCE
0 A S 0.0.0.0/0 192.168.201.250 1
1 S 0.0.0.0/0 Wireless Port 1
2 ADr 192.168.4.0/24 192.168.201.250 120
3 ADr 192.168.56.0/24 192.168.201.250 120
4 ADr 192.168.59.0/24 192.168.201.247 120
5 ADr 192.168.200.0/24 192.168.201.250 120
6 ADC 192.168.201.0/24 192.168.201.249 Wireless Port 0
7 ADr 192.168.202.0/24 192.168.201.248 120
8 ADC 192.168.203.0/24 192.168.203.250 Switch Port 1 0
9 ADr 192.168.205.0/24 192.168.201.247 120
10 ADr 192.168.210.0/24 192.168.201.250 120
11 ADr 192.168.211.0/24 192.168.201.250 120
12 ADr 192.168.220.0/24 192.168.201.250 120
My Firewall Rules are :
[admin@Prometheus] /ip firewall filter> print
Flags: X - disabled, I - invalid, D - dynamic
0 chain=forward action=accept dst-address=192.168.203.14
1 chain=forward action=accept src-address=0.0.0.0
dst-address=192.168.201.249 in-interface=Wireless Port
out-interface=Switch Port 1
2 chain=forward action=accept src-address=0.0.0.0
dst-address=192.168.203.250 in-interface=Wireless Port
out-interface=Switch Port 1
3 chain=forward action=accept protocol=tcp src-port=""
dst-port=5900,4662,8432 port=""
4 chain=forward action=accept protocol=udp dst-port=4672
5 chain=forward action=accept connection-state=established
6 chain=forward action=accept connection-state=related
7 chain=forward action=reject reject-with=icmp-network-unreachable
in-interface=Wireless Port out-interface=Switch Port 1
I've got two problems :
1st is , starting WinBox on a client behind this router and clicking on [...] , will only bring up the Routerboard I'm connected to, but won't bring up the routerboards after this router , can I fix this?

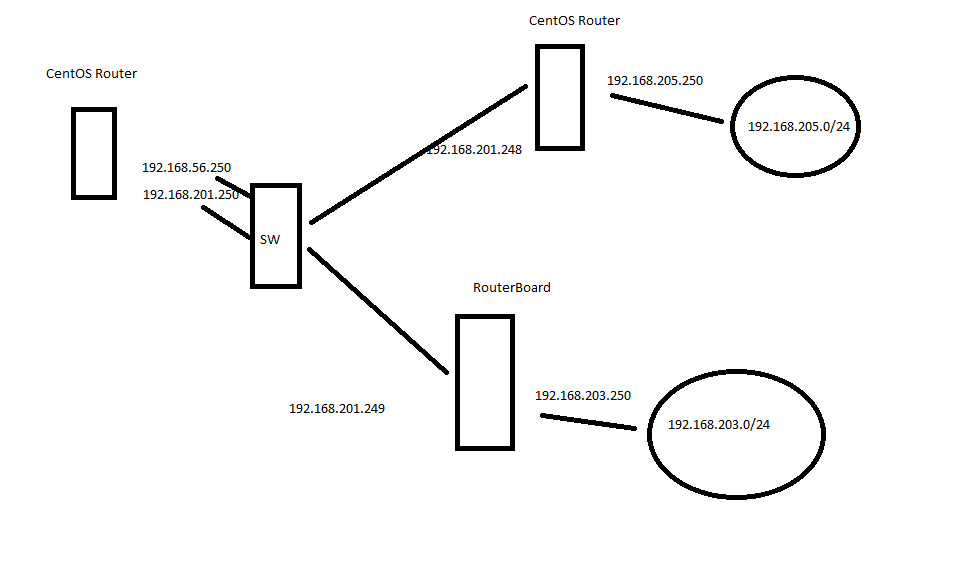

2nd is , see attached picture (ugly_diagram.png ) , can I have multiple routers in the network like this? So that 3 routers have addresses in the 192.168.201.0/24 subnet ? ( this is working, I'm just curious if this is a good way to do this)
Greetings
Robert
