Mikrotik 960PGS routerboard
with 3 Wireless Radios
One receives internet access which is distributed to Mikrotik RB 960PGS.
The two other radios transmits and acts as AP (Access points)
Routerboard attach layout
eth1- EMPTY
eth2- WAN ( radio for WAN access) - 10.91.0.7 Routerboard with Gateway at 10.91.0.1
eth3- Tx Ap1 ( Ubiquiti LiteBeam AC)- active with clients - 10.112.1.5
eth4- Tx Berm ( Ubiquiti LiteBeam AC) - 10.112.2.5
eth5- EMPTY
Routerboard settings
[admin@RTR-BAUTAC-01] > ip address print
Flags: X - disabled, I - invalid, D - dynamic
ADDRESS NETWORK INTERFACE
0 10.255.0.63/32 10.255.0.63 loopback
1 10.91.0.7/26 10.91.0.0 ether2- WAN
2 10.112.1.0/26 10.112.1.0 ether3 -Tx BC Ap1
3 10.112.2.0/26 10.112.2.0 ether4 - Tx Berm
[admin@RTR-BAUTAC-01] /ip route> print
Flags: X - disabled, A - active, D - dynamic, C - connect, S - static, r - rip, b - bgp, o - ospf, m - mme,
B - blackhole, U - unreachable, P - prohibit
DST-ADDRESS PREF-SRC GATEWAY DISTANCE
0 A S 0.0.0.0/0 10.91.0.1 1
1 A S 10.52.1.5/32 ether4 - Tx Ber… 1
2 A S 10.52.1.10/32 10.112.2.7 1
3 A S 10.52.1.11/32 10.112.2.7 1
4 A S 10.52.1.12/32 10.112.2.7 1
5 A S 10.52.2.5/32 10.112.2.7 1
6 ADC 10.91.0.0/26 10.91.0.7 loopback 0
7 A S 10.91.0.5/32 ether2- WAN 1
8 A S 10.91.0.7/32 ether2- WAN 1
9 A S 10.91.0.8/32 ether2- WAN 1
10 ADC 10.112.1.0/26 10.112.1.0 ether3 -Tx BC Ap1 0
11 A S 10.112.1.5/32 ether3 -Tx BC Ap1 1
12 ADC 10.112.1.10/32 10.91.0.7 <pppoe-bautac-p… 0
13 ADC 10.112.1.11/32 10.91.0.7 <pppoe-bautac-t… 0
14 ADC 10.112.1.12/32 10.91.0.7 <pppoe-bautac-m… 0
15 ADC 10.112.1.14/32 10.91.0.7 <pppoe-bautac-m… 0
16 ADC 10.112.1.15/32 10.91.0.7 <pppoe-baut-orl… 0
17 ADC 10.112.2.0/26 10.112.2.0 ether4 - Tx Ber… 0
18 A S 10.112.2.5/32 10.91.0.7 ether4 - Tx Ber… 1
19 A S 10.112.2.7/32 ether4 - Tx Ber… 1
20 A S 10.112.2.8/32 ether4 - Tx Ber… 1
21 DC 10.112.3.0/26 10.112.3.0 ether5- Tx BC Ap3 255
22 ADC 10.255.0.63/32 10.255.0.63 loopback 0
Problem:
Internet is functioning at the site through the routerboard (10.91.0.7).
I can access the radio on eth2 WAN (10.91.0.5) with no issues but unable to access radios on
neither transmits Aps ( 10.112.1.5 on eth3 or 10.112.2.5 on eth4).
When I ping either 10.112.1.5 or 10.112.2.7 I get timeout for the actually routerboard terminal.
Strange thing is that clients attached to 10.112.1.5 eth3, can access the AP and have active internet.
Neither the client nor I from the RB 960PGS, can ping or access neither 10.112.1.5 or 10.112.2.7.

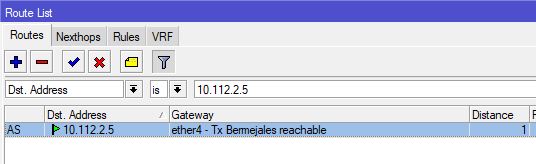

When troubleshooting the issue, I see that both eth3 and eth4 are REACHABLE but I still can ping or access actual radios.
Any clue what is going on? I am stumped.
Any suggestions would greatly assist.
Routerboard states ethernet ports REACHABLE but can not ping or access devices.txt (3.77 KB)
