Hello,
I need your help.
I can’t ping from my PBX - Debian 9 and connect to SBC’s servers through our Mikrotik but from the router I can ping and I have a response from the SBC’s servers.
On IP → Firewall → Connections I can see SBC’s src. address to PBX dst. address but the inverse connectivity from PBX to SBC’s address is missing.
Bridge 1 has IP 192.168.17.3 and has ping to all in 192.168.17/29 and to SBC’s servers 172.26.20.1 and 172.27.30.2.
but PBX is with IP 192.168.17.2 and has a ping only to IP 192.168.17/29 but not to the SBC’s servers 172.26.20.1 and 172.27.30.2.

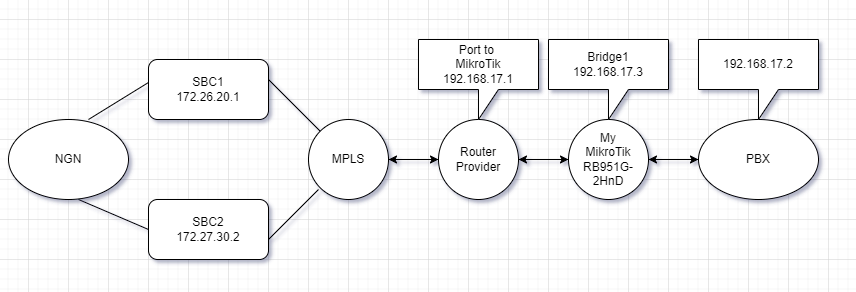

In attachment is my the scheme.
And my settings are very few because the network is a closed type with direct optical connectivity to the provider.
# 2022-12-13 18:44:42 by RouterOS 7.11
# software id = R13V-Z57Q
#
# model = RB951G-2HnD
# serial number = ....
/interface bridge
add arp=proxy-arp ingress-filtering=no name=Bridge1 pvid=21 \
transmit-hold-count=10 vlan-filtering=yes
/interface ethernet
set [ find default-name=ether1 ] arp=proxy-arp
set [ find default-name=ether2 ] arp=proxy-arp
set [ find default-name=ether3 ] arp=proxy-arp auto-negotiation=no \
full-duplex=no loop-protect=on speed=100Mbps
set [ find default-name=ether4 ] arp=proxy-arp
set [ find default-name=ether5 ] arp=proxy-arp
/interface wireless
set [ find default-name=wlan1 ] antenna-gain=0 arp=proxy-arp band=2ghz-b/g/n \
channel-width=20/40mhz-Ce country=brazil disabled=no frequency-mode=\
manual-txpower hide-ssid=yes mode=ap-bridge name=PPH-2.4Ghz ssid=AUIPit \
station-roaming=enabled wps-mode=disabled
/interface lte apn
set [ find default=yes ] ip-type=ipv4 use-network-apn=no
/interface wireless security-profiles
set [ find default=yes ] authentication-types=wpa2-psk eap-methods="" mode=\
dynamic-keys supplicant-identity=MikroTik
/interface bridge port
add bridge=Bridge1 fast-leave=yes ingress-filtering=no interface=ether2 pvid=\
21 trusted=yes
add bridge=Bridge1 fast-leave=yes ingress-filtering=no interface=ether5 pvid=\
21 trusted=yes
add bridge=Bridge1 interface=ether1 pvid=21 trusted=yes
add bridge=Bridge1 fast-leave=yes interface=ether3 pvid=21 trusted=yes
add bridge=Bridge1 fast-leave=yes interface=ether4 pvid=21 trusted=yes
/interface bridge settings
set use-ip-firewall-for-pppoe=yes use-ip-firewall-for-vlan=yes
/ip firewall connection tracking
set enabled=yes
/ip neighbor discovery-settings
set discover-interface-list=!dynamic
/ip settings
set max-neighbor-entries=8192
/ipv6 settings
set disable-ipv6=yes max-neighbor-entries=8192
/interface bridge vlan
add bridge=Bridge1 disabled=yes tagged=ether1,ether2,ether3 untagged=ether4,ether5 \
vlan-ids=21
/interface ovpn-server server
set auth=sha1,md5
/ip address
add address=192.168.17.3/29 interface=Bridge1 network=192.168.17.0
/ip cloud
set ddns-enabled=yes ddns-update-interval=10m
/ip cloud advanced
set use-local-address=yes
/ip firewall filter
add action=accept chain=input comment=\
"Accept established and related packets" connection-state=\
established,related disabled=yes
add action=accept chain=input comment=\
"Accept all connections from local network" disabled=yes
add action=accept chain=forward comment=\
"Accept all connections from local network" disabled=yes
add action=accept chain=forward comment=\
"Accept established and related packets" connection-state=\
established,related disabled=yes
/ip firewall service-port
set ftp disabled=yes
set tftp disabled=yes
set h323 disabled=yes
set pptp disabled=yes
set dccp disabled=yes
set sctp disabled=yes
/ip route
add disabled=no distance=1 dst-address=0.0.0.0/0 gateway=192.168.17.1 \
pref-src="" routing-table=main scope=30 suppress-hw-offload=no \
target-scope=10
/ip service
set telnet disabled=yes
set ftp disabled=yes
set www disabled=yes
set ssh disabled=yes
set api disabled=yes
set winbox address=0.0.0.0/0
set api-ssl disabled=yes
/routing bfd configuration
add disabled=no
/system note
set show-at-login=no
How can solve this problem?
