Hi,

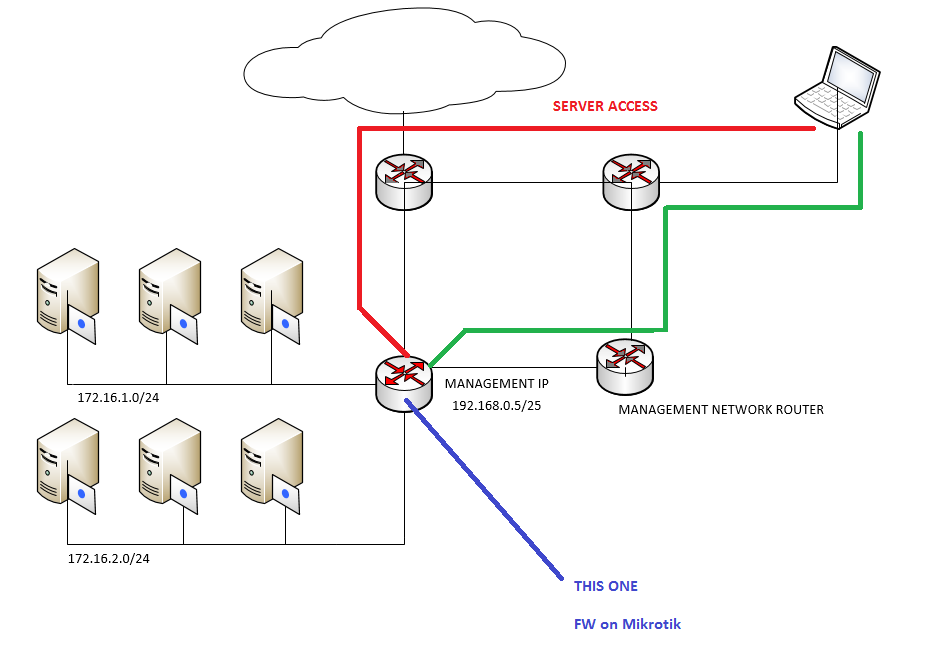

Please find attached diagram of my network
I have to separate management network from network for trafic to the servers. Unfortunately i have problem with accessing to winbox on dedicated interface for management purposes.
Server networks ( 172.16.1.0/24, 172.16.2.0/24 ) have to be reachable from PC without any NAT. At the same time, i have to secure access from PC for management of Mikrotik.
How to configure routing, ip policy etc. to achieve that result ?
I don’t have access to configuration another routers. Only to Mikrotik marked as “This one”
